Cordless pole hedge trimmer

Advertisement

RBC36X26E
OHT1860S
RBC36X26E

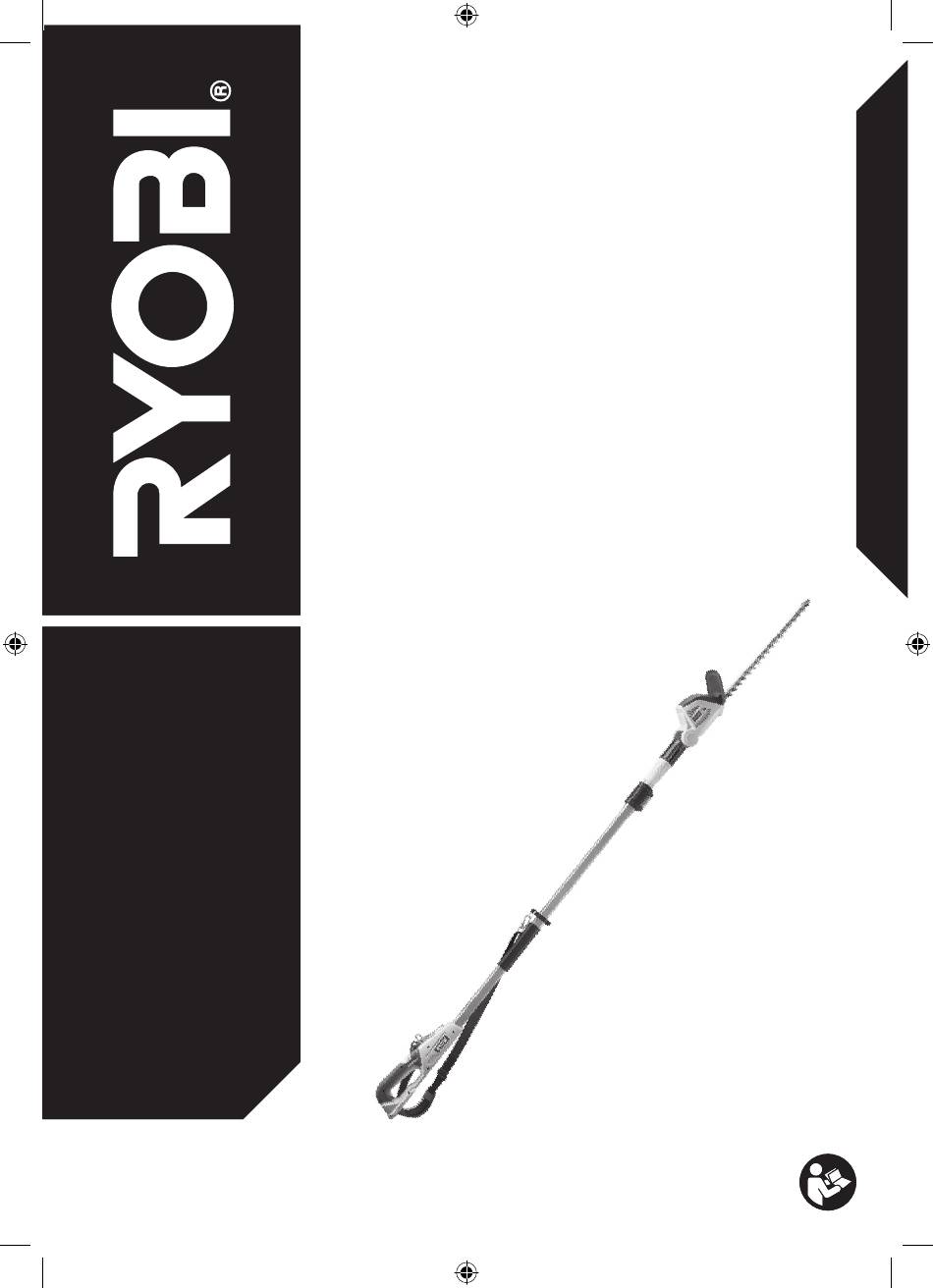

ORIGINAL INSTRUCTIONS
Cordless Pole

Hedge Trimmer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHT1860S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ryobi OHT1860S

  • Page 1: Hedge Trimmer

    ORIGINAL INSTRUCTIONS Cordless Pole Hedge Trimmer RBC36X26E OHT1860S RBC36X26E...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating and maintaining the product. Subject to technical modification.
  • Page 3: Intended Use

    Safety, performance, and dependability have been given ■ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a top priority in the design of your cordless pole hedge trimmer. cord suitable for outdoor use reduces the risk of electric shock.
  • Page 4: Additional Safety Warnings

    tool or these instructions to operate the power tool. Never service damaged battery packs. Service ■ Power tools are dangerous in the hands of untrained of battery packs should only be performed by the users. manufacturer or authorized service providers. ■...
  • Page 5: Transportation And Storage

    extra attention to what is going on in the working area. WARNING ■ Operating similar tools nearby increases both the risk If the product is dropped, suffers heavy impact, or begins of hearing injury and the potential for other persons to to vibrate abnormally, immediately stop the product and enter your working area.
  • Page 6: Maintenance

    ■ hearing damage caused by exposure to noise MAINTENANCE – Wear ear protection and limit exposure. WARNING RISK REDUCTION Use only original manufacturer’s replacement parts, It has been reported that vibrations from handheld tools accessories, and attachments. Failure to do so can cause may contribute to a condition called Raynaud’s Syndrome.
  • Page 7: Symbols In This Manual

    The following signal words and meanings are intended to explain the levels of risk associated with this product. Do not expose to rain or damp condition. DANGER Indicates an imminently hazardous situation, which, if Sharp cutting blades. To prevent not avoided, will result in death or serious injury. serious injury, do not touch cutting WARNING blades.
  • Page 8 WHAT’S IN THE BOX...
  • Page 9: Know Your Product

    KNOW YOUR PRODUCT 1. Blades/Bar 10. Battery port 2. Pivoting button 11. Throttle Trigger 3. Telescoping shaft 12. Shoulder strap 4. Telescopic release latch 13. Blade protector 5. Telescoping collar 14. HEDGESWEEP debris sweeper 6. Front handle 7. Strap hanger 8.
  • Page 10: Getting Started

    GETTING STARTED Connect the pole to the hedge trimmer attachment. Always wear safety goggles or safety glasses with Tighten the shaft coupling by turning it clockwise. sideshields when operating the product. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
  • Page 11 GETTING STARTED Remove the blade protector. Slide the HEDGESWEEP Attach the shoulder strap. over the blade.
  • Page 12 OVERVIEW Cleaning the pole hedge Operating the pole hedge trimmer trimmer p.11 p.15 Storing the pole hedge trimmer p.16...
  • Page 13: Operation

    OPERATION ≤60˚ ≥15m (50’) OPERATING THE POLE HEDGE TRIMMER CAUTION: DANGER! Risk of electrocution! Do not operate within 10 m of overhead electrical lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away. CAUTION: Always use two hands to operate the pole hedge trimmer.
  • Page 14 OPERATION 3. Lay the product on the ground. 4. Press the pivoting button and adjust the pole of the hedge trimmer to the required working angle. CAUTION: Do not touch the hedge trimmer blade to adjust the working angle. NOTE: The working angle of the pole hedge trimmer can be adjusted to –45°, 35°, and 70°.
  • Page 15 OPERATION 5. Remove the blade protector. 6. Install the battery pack. Before using the product, make sure that the latches on each side of the battery pack snap in place and that the battery pack is securely attached. 7. Unlock the telescopic release latch. Adjust the pole length according to the required working height.
  • Page 16 OPERATION 9. Slide the lock out trigger forward and squeeze the trigger. 10. Begin trimming the hedge from left to right.
  • Page 17 MAINTENANCE CLEANING THE POLE HEDGE TRIMMER 1. Remove the battery pack. 2. Remove the HEDGESWEEP. Clean the body and handles of the product with a soft, dry cloth and a brush. WARNING: Do not clean the blade with water. 3. Lubricate the blades lightly before and after use, with a plant-friendly lubricant.
  • Page 18 STORAGE STORING THE POLE HEDGE TRIMMER 1. Remove the battery pack. 2. Cover the blade with the blade protector. 3. Loosen the shaft coupling. Remove the pole from the hedge trimmer attachment. 4. Unlock the telescopic release latch. Adjust the pole length to minimum.
  • Page 19 STORAGE 5. Snap the telescopic release latch in place. Make sure that the telescoping collar is locked securely. 6. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.
  • Page 20: Product Specifications

    PRODUCT SPECIFICATIONS VIBRATION LEVEL Cordless Pole Hedge Trimmer WARNING Model OHT1860S The declared vibration value has been measured with a standard test method and may be used to compare one Rated voltage 18 V DC tool with another. No-load speed...
  • Page 24 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia RYOBI is a trademark of Ryobi Limited, Techtronic Industries N.Z. Limited and is used under license. 2 Landing Drive, Mangere HEDGESWEEP is a trademark of Techtronic Outdoor Auckland, 2022, New Zealand Products Technology Limited.
