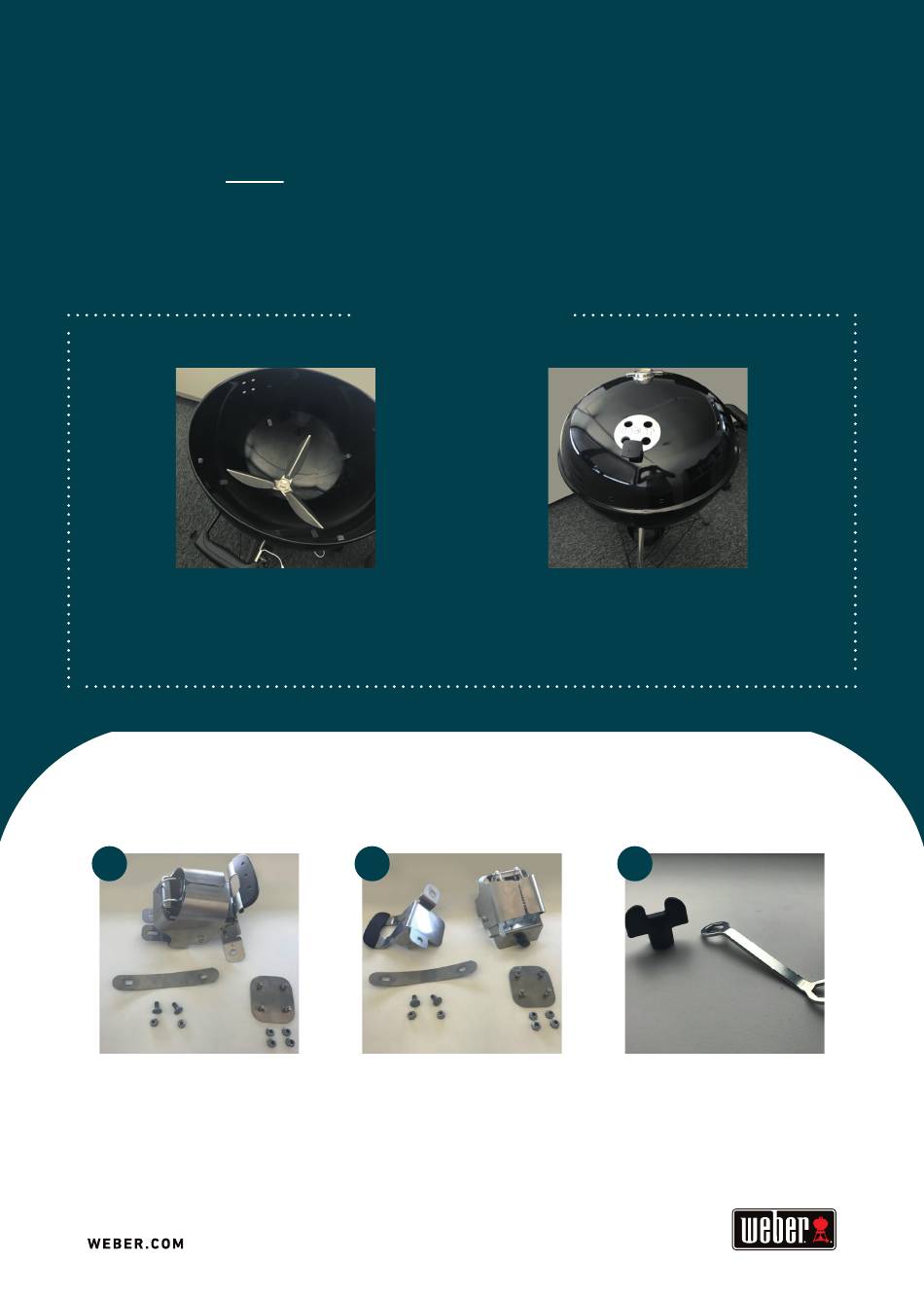

ASSEMBLING THE LID OF
MASTER-TOUCH
THE
GBS PREMIUM E-5770/75
BEFORE YOU START
Build the grill like any Master-Touch GBS
You should now have the bowl and lid fully assembled (apart
(NOTE: if you close the bowl vents, you won't lose the screws).
from the hinge)
ASSEMBLING THE LID
1
2
3
These are the parts you should have for the
Unscrew the top part of the hinge (the part with
These are the tools, that are already included for
hinge assembly: The assembled hinge with black
the grip point) that goes on the lid, from the
an easy assembly of the lid. Alternatively you
knob, 2 metal plates, 2 screws and
lower part (the part with the springs) that goes
can use a size 11 flex wrench.
6 nuts.
on the bowl.
Advertisement
Related Manuals for Weber Master-Touch Premium E-5775
Summary of Contents for Weber Master-Touch Premium E-5775
- Page 1 ASSEMBLING THE LID OF MASTER-TOUCH GBS PREMIUM E-5770/75 BEFORE YOU START Build the grill like any Master-Touch GBS You should now have the bowl and lid fully assembled (apart (NOTE: if you close the bowl vents, you won‘t lose the screws). from the hinge) ASSEMBLING THE LID These are the parts you should have for the...
- Page 2 The lid plate backing goes inside the lid. Insert The lid should now look like this and is ready to Take the lid and the hinge parts for the lid. the screws from the outside (the U-shaped be slid on the hinge part in the bowl. handle should face up, if the lid is turned around) and fully tighten the bolts from the inside.
