Kohler PowerWAVE 9500DPA User Manual

(100–500 kva/kw) parallelable up to 3 mva/mw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
10

Advertisement

Table of Contents
loading

Related Manuals for Kohler PowerWAVE 9500DPA

Summary of Contents for Kohler PowerWAVE 9500DPA

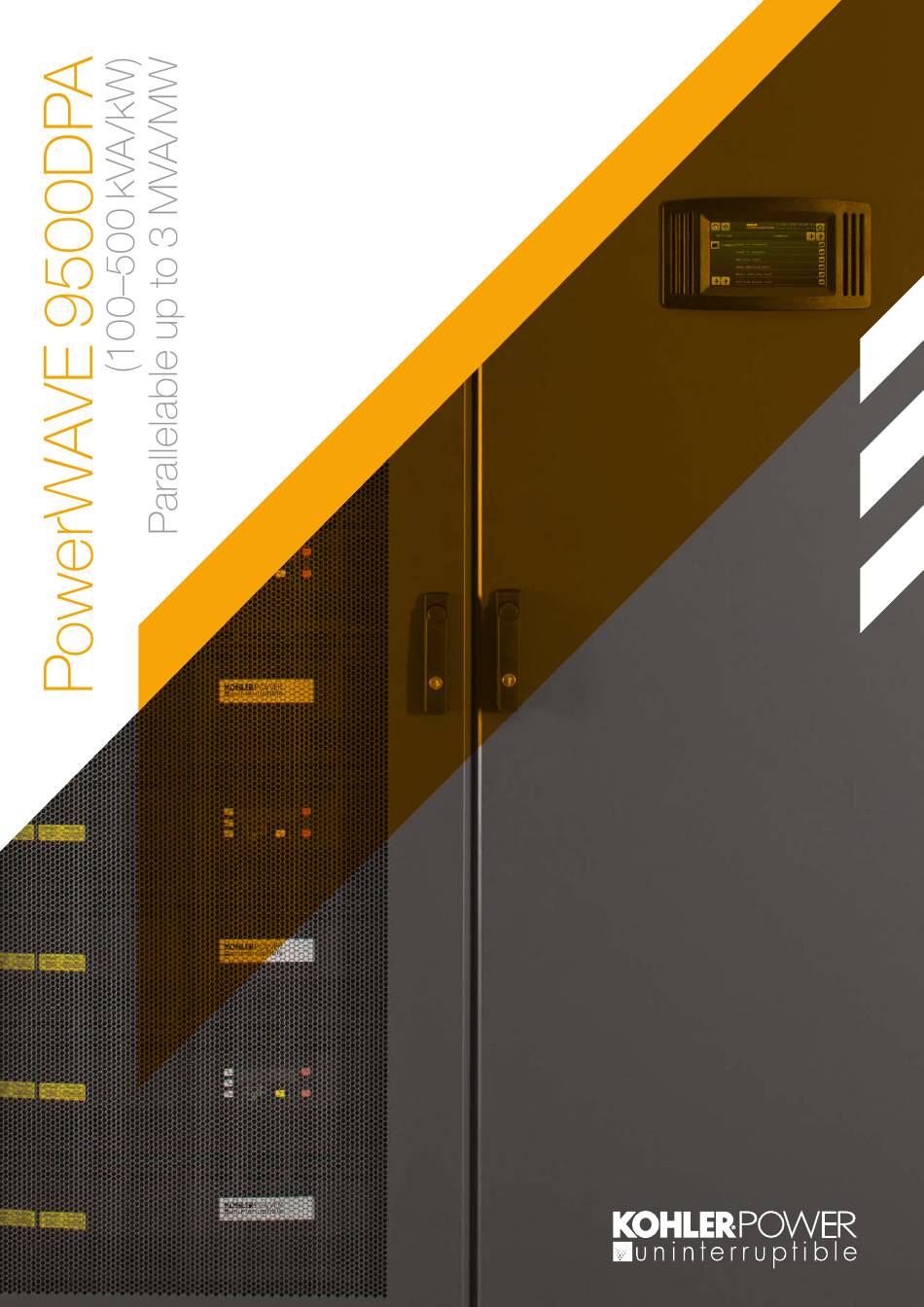

  • Page 1 User Manual...
  • Page 2 TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 3 All product, product specifications and data are subject to change without notice to improve reliability, function, design or otherwise. Kohler Uninterruptible Power Ltd. has taken every precaution to produce an accurate, complete and easy to understand specification document and will assume no responsibility nor liability for direct, indirect or accidental personal or material damage due to any misinterpretation of, or accidental errors, in this manual.
  • Page 4 TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 5: Table Of Contents

    3.2 HOME screen 3.2.1 Events 3.2.2 Measures 3.2.3 Commands 3.2.4 UPS Data 3.2.5 User 3.3 MIMIC screen 3.3.1 MIMIC screen indications 3.3.2 Metering from the MIMIC screen 3.4 XTRA VFI screen(s) 3.5 MODULE SELECTION screen TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 6 6.5 Operating in ‘on bypass’ (ECO) mode 6.5.1 How to Turn ON the UPS in ‘on bypass’ mode 6.5.2 How to Turn OFF the UPS in ‘on bypass’ mode 6.5.3 How to transfer between ‘on bypass’ and ‘on inverter’ mode TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 7 9.3 UPS Monitoring and automated control software 9.3.1 The importance of UPS management 10: Specification 10.1 Introduction 10.2 Mechanical data 10.2.1 UPS Cabinet 10.2.2 100 kVA UPS Power module 10.3 100 kVA UPS Module Data 10.4 General Data TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 8 TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 9: 1: Safety

    UPS yourself. You run risk of exposure to dangerous voltages if you open or remove the UPS covers! Kohler Uninterruptible Power Ltd. will assume no responsibility or liability for accidents or injuries due to incorrect operation or manipulation of the UPS or peripheral equipment.

  • Page 10: Terminology

    Cabinet 3 -4 -5 Cabinet 6 Multi-cabinet System Up to six PW9500 cabinets can be connected in parallel to effectively offer a multi-module system Parallel Cabinet System containing up to 30 (6x5) parallel UPS Modules. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 11: 2: General Description

    • Truly modular design – The PowerWAVE 9500DPA is designed around 100 kW rated UPS modules. • System expandability – Each PowerWAVE 9500DPA cabinet can contain up to five UPS modules (500 kW), and up to six cabinets can be connected together to offer a parallel system capacity of 3.0 MW.

  • Page 12: Model Range

    Model range As described previously, the PowerWAVE 9500DPA UPS cabinet can house up to five 100 kW UPS modules, so each cabinet can be rated up to 500 kW in 100 kW increments. ON/ OF F ENT E R RES E T...

  • Page 13: Ups Module Functional Description

    BATTERY Figure 2.2 UPS module functional block diagram Figure 2.2 shows an internal functional block diagram of a UPS module installed in a PowerWAVE 9500DPA cabinet. UPS Module power inputs/outputs (1, 2, 3, 4) When a UPS module is inserted into the cabinet rack it plugs into a heavy duty power socket located at the rear of the cabinet which carries the UPS module’s input and output power connections, as shown.

  • Page 14: Ups Module Operational States

    Output the battery charger continues to charge the battery and the static BOOSTER / BATTERY CHARGER switch turns on to connect the UPS output to the bypass supply. UPS MODULE Figure 2.3 Inverter off TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 15 In the case of a single feed input – the bypass supply will fail at the same time as the input mains supply and the inverter frequency control reverts to its free-running oscillator and will provide a constant 50Hz or 60Hz UPS output. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 16 Note: When switching to/from the maintenance bypass mode the UPS is normally transferred to the static bypass mode before the maintenance bypass switch is operated. This secures the load supply during the switching process. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 17: Ups System Operating Modes Summary

    – e.g. in the case of a computer system. When the PowerWAVE 9500DPA is used as an ‘on-line’ system, the UPS modules normally operate in their ‘on inverter’ mode (Figure 2.4), and switch to the ‘on battery’ mode if the input mains supply fails (Figure 2.6). The changeover to battery operation is totally transparent at the UPS output and an audible and visual alarm warns the operator that the battery is discharging to enable any intervention to be taken to protect the load integrity.

  • Page 18: Parallel System Operation

    The PowerWAVE 9500DPA UPS system can be expanded by connecting the outputs of up to six PW9500DPA UPS cabinets in parallel; and when two or more cabinets are connected in this way, all the UPS modules within them are effectively paralleled together.

  • Page 19: Xtra Vfi Mode

    Figure 2.10. Xtra VFI is an in-built feature, available in every PowerWAVE 9500DPA system, and can be enabled or disabled by a qualified service engineer with access to the password-protected Service menu on the system control panel.

  • Page 20: Operation

    • Total UPS number – the total number of UPS modules contained in the system. The Xtra VFI feature takes these parameters into account when calculating the required number of on-line modules for any given load. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 21: Powerwave 9500Dpa Operator Controls

    For Module 3 ON/OFF ENTER RESET ON/OFF For Module 2 IA2 Parallel switch ON/OFF ENTER RESET ON/OFF F3 Fused battery isolator F2 Fused bypass isolator For Module 1 Figure 2.11 Power fuses and isolator switches TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 22: Ups Module Control Panel

    – i.e. if there is a sufficient number of modules remaining to support the system’s load then the load is not transferred. To shut down all the UPS modules in a parallel system you must press both ON/OFF buttons on every module. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 23: Mimic Led Indication

    3. Load supply completely powered-down. LOAD OFF UPS modules have all been switched off by “ON/OFF” buttons. SUPPLY FAILURE 4. UPS module is not supplying load. LOAD DISCONNECTED The UPS output switch (IA2) is open. PARALLEL SWITCH OPEN TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 24: Events 23

    3. Bypass Frequency. BYPASS FREQUENCY (HZ) 50.00 4. Battery Voltage BATTERY VOLTAGE (V) +0.0 - 0.0 5. Battery Charger Current BATT. CHARGE CUR. (A) + 0.0 - 0.0 6. Battery Discharge Current. DISCHARGE CURRENT (A) 00.00 TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 25 1. These general UPS Data are installed at the manufacturing plant. UPS SERIAL NUMBER nn-nnnnn 2. Manufacturing date DATE OF MANUFACTURE 15-03-16 3. EPROM Version EPROM VERSION V-000 4. Actual Date and Time DATE TIME dd-mm-yyyy hh:mm:ss TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 26: System Control Panel

    The system control panel contains a TFT touch-screen display which enables you to monitor and operate the UPS installation at a ‘system’ level. A detailed description of the control panel is provided in Chapter 3. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 27: Customer Interface Board

    9-pole configuration DIP switch used to configure module for parallel operation. Parallel communication bus connector. Used in parallel cabinet system only, and fitted with parallel adapter board to enable module daisy chaining. Figure 2.14 UPS Cabinet interface board TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 28: 2.10 Warranty

    If the UPS fails to conform to the above within the warranty period then Kohler Uninterruptible Power Ltd. will, at its sole option, repair or replace the UPS. All repaired or replaced parts will remain the property of Kohler Uninterruptible Power Ltd.

  • Page 29: 3: System Control Panel

    • monitor the power flow through the UPS system or selected UPS module, through an illuminated, colour-coded mimic diagram • check alarm and events histories • acknowledge an event occurrence • silence alarms • monitor the battery state and autonomy time TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 30: Display Header Bar

    Figure 3.2 Display header bar A detailed description of each of the screens accessed by each of the buttons on the Display Header Bar is provided on the following pages. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 31: Home Screen

    Note that changes to the system/module operation are registered as events and not just fault occurrences. Figure 3.4 EVENTS screen TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 32: Measures

    Figure 3.7 MEASURES screen (Xtra VFI) Note that this screen can also be accessed by pressing the Xtra VFI button on the display header bar when the XTRA VFI STATUS BAR screen is displayed. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 33: Commands

    N o t e : T h e s c r e e n w i l l b e c a l i b r a t e d b y t h e commissioning engineer if necessary and we strongly recommend that you do not touch the Display Calibration button. Figure 3.10 USER screen TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 34: Mimic Screen

    Bypass Switch IA1 White: Maintenance bypass switch open Parallel switch IA2 Green: Parallel switch is closed (Position ON) White: Parallel switch is opened (Position OFF) Figure 3.11 MIMIC screen (system level includes on-screen metering) TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 35: Mimic Screen Indications

    In a split-bypass system the bypass line (L2) will be live if the bypass supply is still available, otherwise it will indicate a power loss (red) along with Figure 3.13 ON BATTERY mimic the rectifier mains input (L1). TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 36 UPS module is totally isolated from the UPS output and can be replaced or serviced Figure 3.15 ON MAINTENANCE BYPASS mimic without affecting the rest of the UPS system. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 37: Metering From The Mimic Screen

    Note: The screens that are accessed through this path use the same data source as the MEASURES screens described earlier, but the displayed content is organised differently. load rectifier inverter MIMIC screen at either ‘module’ or ‘system’ level Figure 3.16 MIMIC Metering TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 38: Xtra Vfi Screen(S)

    You can cycle between these two screens by pressing the Xtra VFI button on the display header bar. To exit these screens you must press a different button on the display header bar or select another function in the MEASURES screen. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 39: Module Selection Screen

    If you press one of the touch-sensitive icon buttons the MIMIC screen will open which allows you to observe the operation and metering for the selected module, as described in paragraph 3.3. Figure 3.19 30-Module system TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 40: 4: Installation

    This chapter contains essential information concerning the safe unpacking, positioning, installing and cabling of the PowerWAVE 9500DPA UPS system. Key Point: If you are installing an external battery cabinet supplied by Kohler Uninterruptible Power Ltd. you should refer to the manual that is provided with the cabinet for installation instructions.

  • Page 41: Local Transportation

    If the shipment is received in good order (i.e. the ‘tip & tell’ “FRAGILE” and “ARROW” indicators on the packing container are intact) then unpack the UPS as follows: Figure 4.1 UPS Cabinet packaging TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 42 CAUTION: The UPS batteries must ALWAYS be installed by the commissioning engineer. If the batteries are shipped in a separate package they should remain in their packing until required by the Kohler Uninterruptible Power Ltd. service engineer when the system is commissioned.

  • Page 43: Installation Planning (Environmental & Mechanical)

    UPS cabinet or as close to it as possible. Note: If you install the recommended external battery cabinet or battery rack supplied by Kohler Uninterruptible Power Ltd. the battery cabinet itself does not require any side or rear clearance.

  • Page 44: Battery Cabinet Installation

    If the batteries are to be mounted on external battery racks, rather than cabinet mounted, the battery must be sized to take into account the voltage drop between the battery installation and UPS. Contact Kohler Uninterruptible Power Ltd. for installation advice and support if necessary.

  • Page 45: Planning The Installation (Cabling Considerations)

    Similarly, the UPS output should be connected to the load equipment via a suitably protected UPS system output panel. The external battery installation requires fuses fitted in the battery positive, negative, and mid-point (neutral) feeds, as shown in Figure 4.3. Kohler Uninterruptible Power Ltd. can supply a matching battery cabinet containing the necessary fuses and switchgear.

  • Page 46: Parallel Cabinet Cabling Recommendations

    230V UPS at all times. DO NOT use, a 4- pole input switch or isolator at the LV Figure 4.5 Permanent, grounded input neutral Distribution board on a TN-S system. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 47: External Maintenance Bypass Switch

    The switches may be installed in a dedicated external Maintenance Bypass switch cabinet or included in an existing (or dedicated) switchgear panel. Kohler Uninterruptible Power Ltd. can supply a range of external maintenance bypass solutions to suit all of its UPS...

  • Page 48: Cable Sizing

    (F3). Key Point: We recommend M12 busbar connections are tightened to 42Nm. and M8 busbar connections tightened to 24 Nm. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 49 All external fuses, isolators and power cables must be rated and installed in accordance with the prescribed IEC standards or local regulation – e.g. BS7671:2008. • External DC cables and battery fuses are bespoke to the installation. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 50: Cabling Configurations

    (and vice versa). This is also recommended where bus ducts are used, to provide the extra space needed to bend the flexible busbars onto the UPS busbars. Please consult Kohler Uninterruptible Power Ltd. for installation advice. Busbars for top entry Busbars for bottom entry Figure 4.9 Alternative Top and Bottom entry busbar arrangement...

  • Page 51: Power Cable Terminations

    Bottom cable entry with common batteries. 2-L3 3-L1 3-L2 3-L3 Batt – Batt + Top cable entry with separate batteries. Top cable entry with common batteries. Figure 4.10 Top and Bottom cable entry options TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 52 (f3). Top cable entry Shows top-entry power busbars and the routing for the separate battery cables which are connected to the battery fuses (f3). Figure 4.11 Separate battery cable installation and connection TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 53 Front View 1-L3 Top View 3-L3 1-L2 3-L2 1-L1 1-L1 3-L1 1-L2 1-L3 Batt + Batt – 3-L1 3-L2 3-L3 Battery connected to each module’s battery circuit breaker. Figure 4.13 Single input with separate batteries TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 54 Top View 3-L3 1-L2 3-L2 1-L1 1-L1 3-L1 1-L2 1-L3 2-L1 2-L2 2-L3 Batt + 3-L1 Batt – 3-L2 3-L3 Battery connected to each module’s battery circuit breaker. Figure 4.15 Dual input with separate batteries TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 55: Ups Cabling Procedure

    WARNING: If you open or remove any UPS cabinet internal cover there is a risk of exposure to dangerous voltages if power is connected to the UPS. WARNING: DC cabling for the battery system(s) must be completed by a Kohler Uninterruptible Power Ltd. engineer or one of its approved service agents.

  • Page 56: Connecting The Ups Output Cables

    Connecting the battery cables The DC cabling for the battery system(s) must be completed by a Kohler Uninterruptible Power Ltd. engineer or one of its approved service agents. The customer installation team is only responsible for providing any necessary containment for the DC cables.

  • Page 57: Module Customer Interface Facilities

    9-pole configuration DIP switch used to configure module for parallel operation. Parallel communication bus connector. Used in parallel cabinet system only, and fitted with parallel adapter board to enable module daisy chaining. Figure 4.16 UPS Customer interface board connectors TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 58: Introduction

    Introduction 5.1.1 Commissioning The PW9500DPA UPS is a high quality, complex electronic system which must be commissioned by an authorised Kohler Uninterruptible Power Ltd. engineer before it is put into use. The commissioning engineer will: • check the UPS electrical and mechanical installation, and operating environment •...

  • Page 59: General Warnings

    Initial conditions: This procedure assumes the following initial conditions: • The UPS maintenance bypass switch is open. • The UPS system input supply is isolated. • The external UPS system output isolator is open. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 60 Note: If the BYPASS LED is not green, repeat step 7 then seek trained advice if it still fails to light green. 17. Press the Home button on the display header bar. a) The HOME screen should open. 18. Press the Command button of the HOME screen. a) The COMMAND screen should open. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 61 21. Check that the display header bar Load Status indicates that the load is protected. load rectifier inverter Key Point: The UPS system is now operating in its ‘on-inverter’ mode and the load is fully protected. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 62: How To Start The Ups System From The Maintenance Bypass

    If the UPS system is operating on maintenance bypass it can be powered up using the procedure described in paragraph 5.3 ("How to start the UPS system from a fully powered-down condition") beginning at step 7. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 63: How To Transfer The Load To Maintenance Bypass

    Press the Command button of the HOME screen. a) The COMMAND screen should open. Press the Load to Bypass button on the COMMANDS screen. a) All UPS modules will transfer the load to the static bypass. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 64 UPS cabinet‘s input/bypass and output power terminals will remain live. Where an external maintenance bypass facility is used, the UPS system input supply can be turned off – see the operating instructions for the bespoke external maintenance bypass facility for details. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 65: How To Shut Down The Complete Ups System

    All UPS modules will transfer the load to the inverter On the system control panel check that the UPS mimic indicates the load on inverter. Check that the display header Load Status indicates that the load is protected. load rectifier inverter TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 66 All UPS modules will transfer the load to the inverter On the system control panel check that the UPS mimic indicates the load on inverter. Check that the display header Load Status indicates that the load is protected. load rectifier inverter TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 67: Introduction

    Introduction 6.1.1 Commissioning The PW9500DPA UPS is a high quality, complex electronic system which must be commissioned by an authorised Kohler Uninterruptible Power Ltd. engineer before it is put into use. The commissioning engineer will: • check the UPS electrical and mechanical installation, and operating environment •...

  • Page 68: General Warnings

    The LCD displays LOAD OFF, SUPPLY FAILURE. If necessary press the RESET button to obtain this display. Close the external UPS system output isolation device(s). Press the RESET button. a) The LCD displays LOAD OFF, SUPPLY FAILURE. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 69 19. Check that the display header bar Load Status indicates that the load is protected. Key Point: The UPS system is now operating in its ‘on-inverter’ mode and the load is fully protected. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 70: How To Turn Off The Load And Power-Down The Ups System

    Check that the display header Load Status indicates that the load is not protected. When it is safe to do so, turn off the connected load equipment. load rectifier inverter TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 71: Operating In 'On Bypass' (Eco) Mode

    Press the Command button of the HOME screen. a) The COMMAND screen should open. Press the Load to Bypass button on the COMMANDS screen a) All UPS modules will transfer the load to the inverter TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 72 All UPS modules will transfer the load to the inverter On the system control panel check that the UPS mimic indicates the load on inverter. Check that the display header Load Status indicates that the load is protected. load rectifier inverter TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 73: 7: Maintenance

    UPS which will be used to log its full service history. We recommend that the UPS system is maintained every six months by a Kohler Uninterruptible Power Ltd. trained engineer or approved service agent, who will complete the following.

  • Page 74: Battery Maintenance And Testing

    Batteries contain dangerous substances that can harm the environment if disposed of carelessly. If you have reason to change the batteries, always consult with your local environmental waste disposal organisations to obtain the recommended disposal and recycling information. TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 75: 8: Troubleshooting

    If the alarm event is shown in the table in paragraph 8.2, follow the actions provided in that table. If the event is not shown in the table, or you have any doubts as to how to carry out the instructions given, then please contact Kohler Uninterruptible Power Ltd.

  • Page 76: Fault Identification And Rectification

    Contacting service Kohler Uninterruptible Power Ltd. has a service department dedicated to providing routine maintenance and emergency service cover for your UPS. For peace of mind we recommend that you protect your UPS with an extended warranty agreement, which will ensure that your UPS system and batteries are well maintained and running at their optimum efficiency, and attended to promptly should any problems occur.

  • Page 77: 9: Options

    9-pole configuration DIP switch used to configure module for parallel operation. Parallel communication bus connector. Used in parallel cabinet system only, and fitted with parallel adapter board to enable module daisy chaining. Figure 9.1 UPS Cabinet customer interface board TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 78: Serial Rs-232/ Usb Computer Interface - Jd1 & Usb (Smart Port)

    • The Input ports (X2) • The Output port (X3) On the Slave boards the following parts are active. • The Output ports X2 • All other input or output ports on the Slave boards are not activated TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 79 MAINS OK Common X2/2 Mains Failure X2/1 Mains Present CASTELL INTERFACE X1/2 230Vac – EXT MAN BYP Castell Interlock Function External Manual Bypass closed (230VAC 2AT) X1/1 – Figure 9.3 Dry port connection details TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 80: Rs485 Interface For Multidrop - Jr2

    X3/4 PowerWAVE 9500DPA front frame (see Figure 9.4). X3/3...

  • Page 81: Rs485 Interface For Remote Panel - Jr3

    Kohler Uninterruptible Power Ltd.considers it important to have a complete solution for its UPS systems, and offers its customers a number of remote control and monitoring tools to provide optimum protection.

  • Page 82: 10: Specification

    Min. 200mm space required at the rear for ventilation Min. 1500mm space required at front for access Min. 400mm space required at the rear for ventilation Input/output power cabling From the top or bottom TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 83: 100 Kva Ups Power Module

    <3.5% @ 100% load Max. input current 152A – with rated output power and charged battery (output p.f. = 1.0) Max. input current with rated output power 167A and discharged battery (output p.f. = 1.0) TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...

  • Page 84: 10.4 General Data

    Heat dissipation with 100% non-linear load 5710W, 19488 BTU/m per module (EN 62040-1-1:2003) Heat dissipation at no load 660 W per module Airflow (25° - 30°C) with non-linear load. 1200 m³/h per module (EN 62040-1-1:2003) TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
  • Page 85 EMERGENCY OFF (normally closed) GENERATOR-ON (normally open) BATTERY TEMPERATURE SENSOR EXTERNAL BYPASS INTERLOCK Standards (UPS Modules) Safety EN 62040-1-1 Electromagnetic compatibility EN 62040-2 Emission class Immunity class Performance EN62040-3 Product certification Degree of protection IP 20 TS_622_02 PowerWAVE 9500DPA User Manual 26/2/19...
