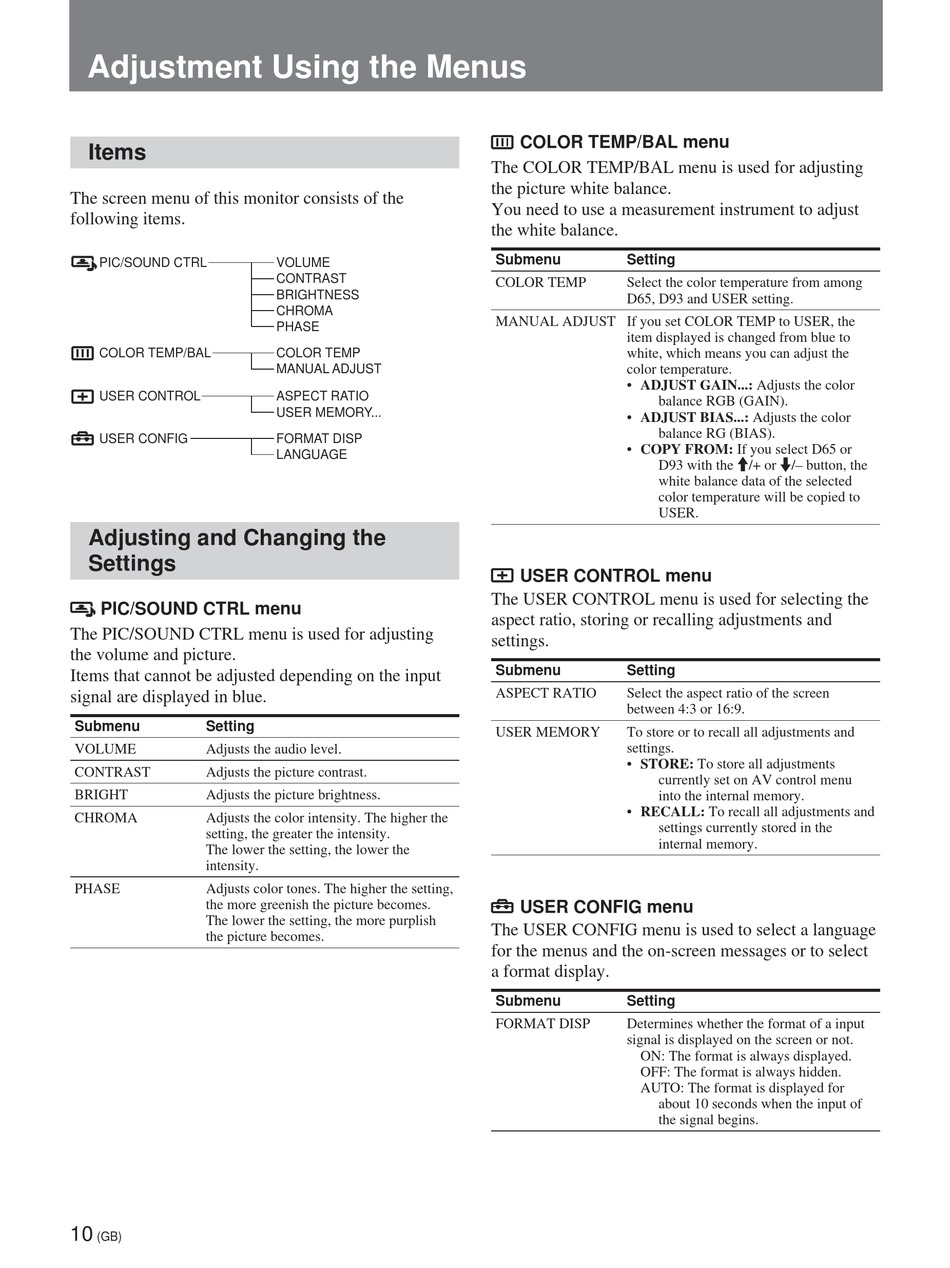

Adjustment Using the Menus

Items

The screen menu of this monitor consists of the
following items.
PIC/SOUND CTRL
COLOR TEMP/BAL
USER CONTROL
USER CONFIG
Adjusting and Changing the
Settings
PIC/SOUND CTRL menu
The PIC/SOUND CTRL menu is used for adjusting
the volume and picture.
Items that cannot be adjusted depending on the input
signal are displayed in blue.
Submenu
Setting
VOLUME
Adjusts the audio level.
CONTRAST
Adjusts the picture contrast.
BRIGHT
Adjusts the picture brightness.
CHROMA
Adjusts the color intensity. The higher the
setting, the greater the intensity.
The lower the setting, the lower the
intensity.
PHASE
Adjusts color tones. The higher the setting,
the more greenish the picture becomes.
The lower the setting, the more purplish
the picture becomes.
10
(GB)
VOLUME
CONTRAST
BRIGHTNESS
CHROMA
PHASE
COLOR TEMP
MANUAL ADJUST
ASPECT RATIO
USER MEMORY...
FORMAT DISP
LANGUAGE
COLOR TEMP/BAL menu
The COLOR TEMP/BAL menu is used for adjusting
the picture white balance.
You need to use a measurement instrument to adjust
the white balance.
Submenu
Setting
COLOR TEMP
Select the color temperature from among
D65, D93 and USER setting.
MANUAL ADJUST If you set COLOR TEMP to USER, the
item displayed is changed from blue to
white, which means you can adjust the
color temperature.
• ADJUST GAIN...: Adjusts the color
balance RGB (GAIN).
• ADJUST BIAS...: Adjusts the color
balance RG (BIAS).
• COPY FROM: If you select D65 or
D93 with the M/+ or m/– button, the
white balance data of the selected
color temperature will be copied to
USER.
USER CONTROL menu
The USER CONTROL menu is used for selecting the
aspect ratio, storing or recalling adjustments and
settings.
Submenu
Setting
ASPECT RATIO
Select the aspect ratio of the screen
between 4:3 or 16:9.
USER MEMORY
To store or to recall all adjustments and
settings.
• STORE: To store all adjustments
currently set on AV control menu
into the internal memory.
• RECALL: To recall all adjustments and
settings currently stored in the
internal memory.
USER CONFIG menu
The USER CONFIG menu is used to select a language
for the menus and the on-screen messages or to select
a format display.
Submenu
Setting
FORMAT DISP
Determines whether the format of a input
signal is displayed on the screen or not.
ON: The format is always displayed.
OFF: The format is always hidden.
AUTO: The format is displayed for
about 10 seconds when the input of
the signal begins.
