All Sport 5000 Series Console Quick Start Guide
This guide will assist with starting up and operating an All Sport 5000 series scoreboard controller. For more detailed console operation and configuration, refer to
the All Sport 5000 Series Control Console Operations Manual (ED-11976), available online at www.daktronics.com/allsportsupport.

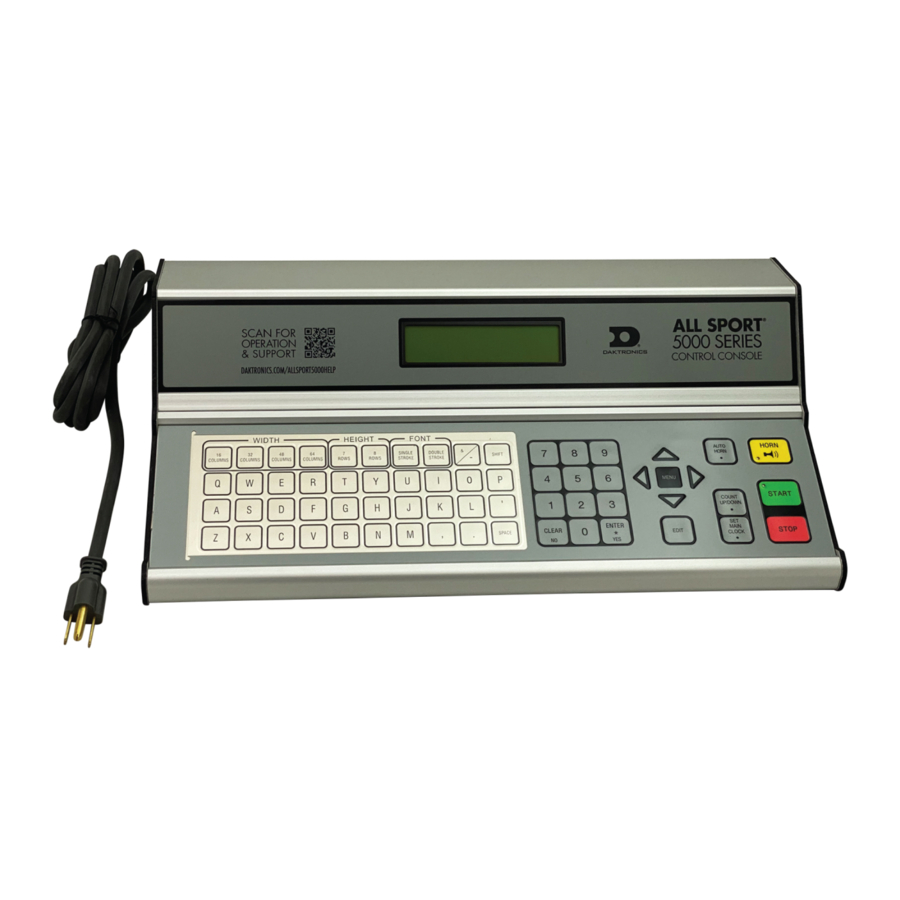

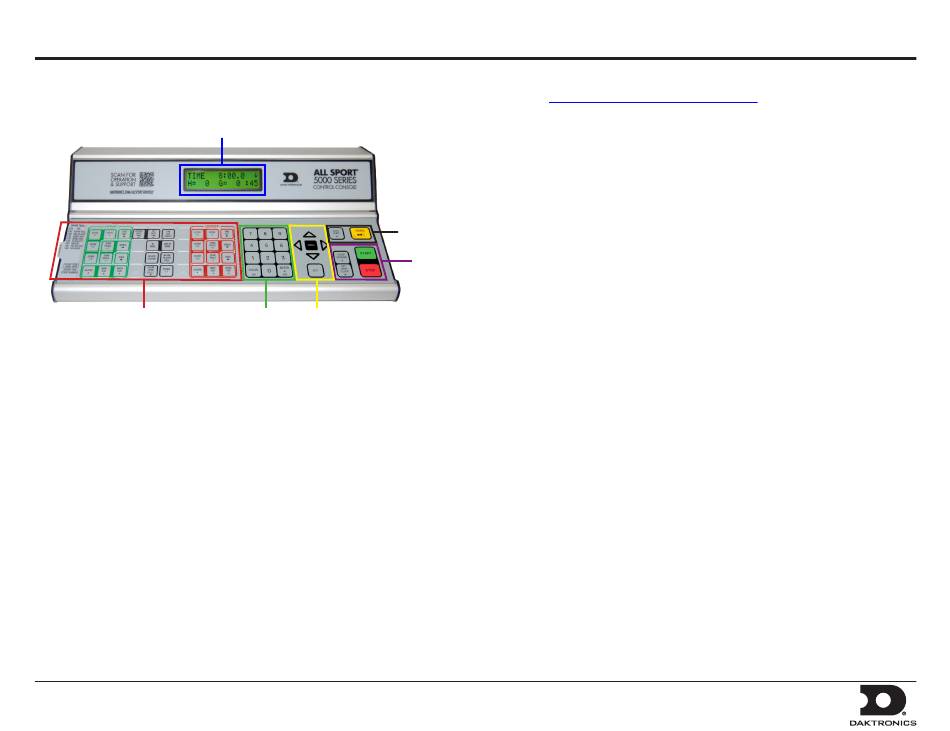

LCD

Sport-Specific Insert

LCD
This screen displays current game information and menu choices.

Number Keypad

0-9 – Use these keys to enter scoring and statistical values.
ENTER * YES – This key has two functions:
Press to complete an action.
Press to answer "YES" for input prompts (Y).
CLEAR / NO – This key has two functions:
Press to clear the LCD of numerical information.
Press to answer "NO" for input prompts (N).

Menu Navigation

MENU – Press to select from a list of standard and sport-specific options.
Use ▲ and ▼ to scroll through the menus.
Use ◄ and ► to enter and exit submenu lists.
Refer to the Operations Manual for the menu settings of each sport.
DD2077845 Rev 2
18 May 2016
Horn
Control
Clock
Control
Number
Menu
Keypad
Navigation
201 Daktronics Drive PO Box 5128, Brookings, SD 57006-5128
Tel: 1-800-DAKTRONICS (1-800-325-8766) Fax: 605-697-4746
Web: www.daktronics.com/allsportsupport
EDIT – Press this key followed by one of the sport-specific scoring keys to
modify the current value. Simply enter the new value using the number
keypad and then press <ENTER>.

Clock Control

START – Press to start the main clock. A green LED on the key illuminates
while the main clock is running.
STOP – Press to stop the main clock.
SET MAIN CLOCK – After the main clock has been stopped, press this
key to display the current time of the main clock.
Enter the desired time using the number keypad and then press
<ENTER> to set the clock.
Press <CLEAR> twice to cancel the changes and return to the game.
Refer to Section 2.5 of the Operations Manual for more information.
COUNT UP/DOWN – After the main clock has been stopped, press this
key to set the direction of the clock.
Press <1> or <2> to select UP or DOWN (default).
The current direction of the main clock is shown on the top line of the
LCD with an ↓ or ↑.

Horn Control

AUTO HORN – Press this key to enable/disable the automatic horn.
Press <1> or <2> to select ON (default) or OFF. An amber LED on the
<HORN> key illuminates when the Auto Horn is enabled.
If the Auto Horn is ON (the LED is on) the horn will automatically go
off when the clock reaches "00:00".
HORN – Press to sound the main horn, if the scoreboard is equipped with
one. The horn sounds as long as the key is held.
Sport-Specific Insert
This shows keys specific to a sport. Refer to Page 3 for more information.
1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the All Sport 5000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Daktronics All Sport 5000 Series

  • Page 1 1 of 4 This guide will assist with starting up and operating an All Sport 5000 series scoreboard controller. For more detailed console operation and configuration, refer to the All Sport 5000 Series Control Console Operations Manual (ED-11976), available online at www.daktronics.com/allsportsupport.
  • Page 2 All Sport 5000 Series Console Quick Start Guide 2 of 4 Start Up Radio Settings 1. Plug power cord into standard wall outlet or battery pack. If the radio option is installed, the console will also prompt for the radio settings after changing the sport code.
  • Page 3 All Sport 5000 Series Console Quick Start Guide 3 of 4 Sport Codes & Sport Inserts Appendix B of the Operations Manual contains scale drawings of every sport insert. If an insert is lost or damaged, you can print the drawing on 8.5" x 11"...
  • Page 4 All Sport 5000 Series Console Quick Start Guide 4 of 4 Jacks & Switches Important Safeguards • J1-J3 (SCOREBOARD OUTPUTS) – These are 1/4" stereo jacks used Do not drop the control console or allow it to get wet. to connect directly to fixed-digit scoreboards, clocks, and stat displays.
