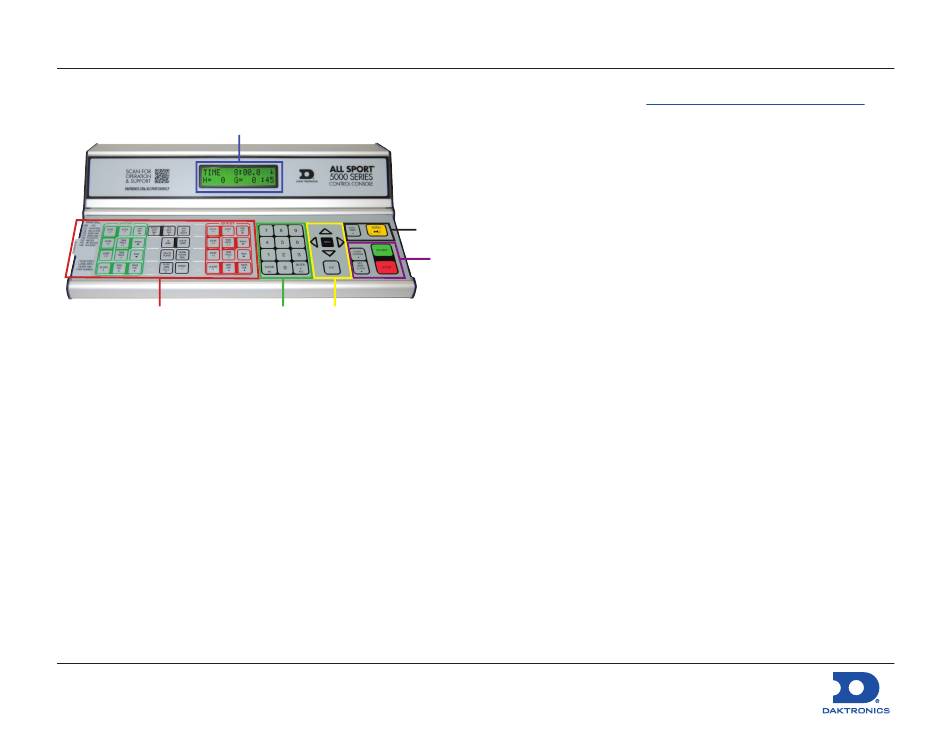

All Sport 5000 Series Console Quick Guide
This guide will assist with starting up and operating an All Sport 5000 series scoreboard controller. For more detailed console configuration,
refer to the All Sport 5000 Series Control Console Operations Manual (ED-11976), available online at www.daktronics.com/allsportsupport.

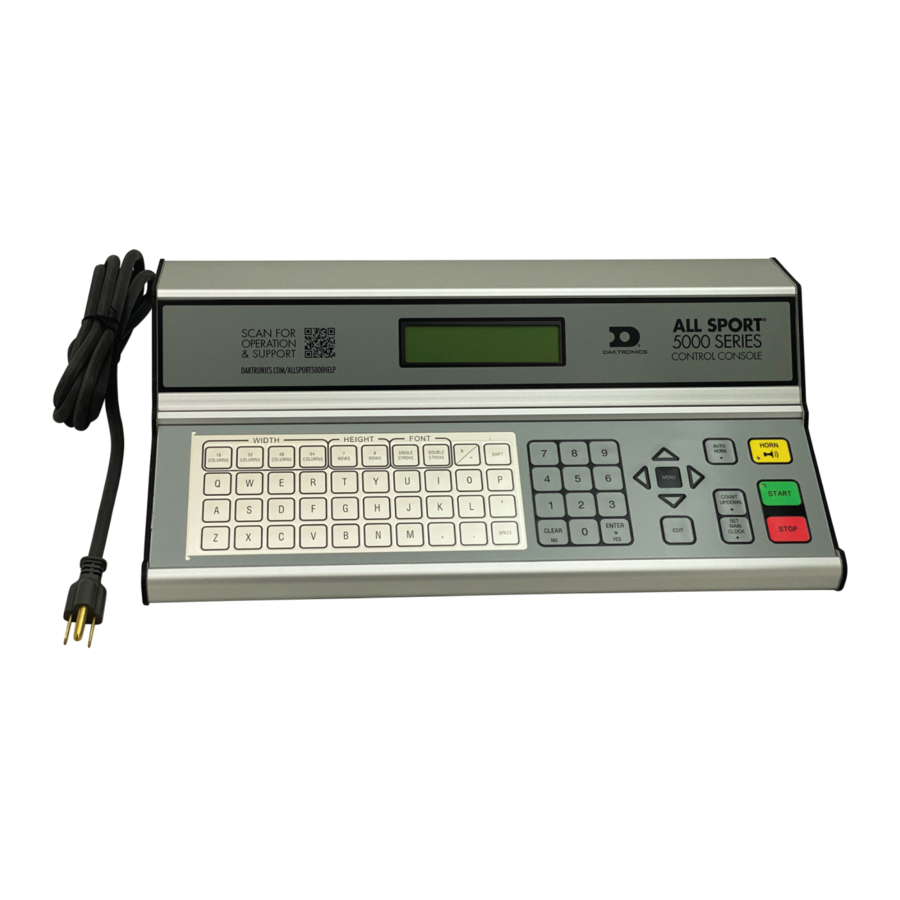

LCD
Sport-Specific Insert
LCD
LCD
This screen displays current game information and menu choices.
Number Keypad
0-9 – Use these keys to enter scoring and statistical values.
•
ENTER * YES – This key has two functions:
•
• Press to complete an action.
• Press to answer "YES" for input prompts (Y).
CLEAR / NO – This key has two functions:
•
• Press to clear the LCD of numerical information.
• Press to answer "NO" for input prompts (N).
Sport-Specific Insert
Menu Navigation
MENU – Press to select general and sport-specific options.
•
LCD
• Use ▲ and ▼ to scroll through the menus.
• Use ◄ and ► to enter and exit submenu lists.
Refer to the Operations Manual for the menu settings of each sport.
DD2077845
Rev 03
01 August 2018
Horn
Control
Clock
Control
Number Menu
Keypad Navigation
Horn
Control
Clock
Control
Number Menu
Keypad Navigation
201 Daktronics Drive
Brookings, SD 57006-5128
www.daktronics.com/support
800.325.8766
EDIT – Press this key followed by one of the sport-specific scoring
•
keys to modify the current value. Simply enter the new value
using the number keypad and then press ENTER.
Clock Control
START – Press to start the main clock. A green LED on the key
•
illuminates while the main clock is running.
STOP – Press to stop the main clock.
•
SET MAIN CLOCK – After the main clock has been stopped, press
•
this key to display the current time of the main clock.
• Enter the desired time using the number keypad and then
press ENTER to set the clock.
Press CLEAR twice to cancel and return to the game.
•
COUNT UP/DOWN – After the main clock has been stopped, press
•
this key to set the direction of the clock.
Press 1 or 2 to select UP or DOWN (default).
•
• The current direction of the main clock is shown on the top
line of the LCD with an ↓ or ↑.
Horn Control
• AUTO HORN – Press this key to enable/disable the automatic horn.
Press 1 or 2 to select ON (default) or OFF. An amber LED on
•
the HORN key illuminates when the Auto Horn is enabled.
• If the Auto Horn LED is ON, the horn will automatically go off
when the clock reaches "00:00".
HORN – Press to sound the main horn, if the scoreboard is
•
equipped with one. The horn sounds as long as the key is held.
Sport-Specific Insert
This shows keys specific to a sport. See Page 3 for more information.
