800W 2-Way Active Loudspeakers
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Samson RL112A

Summary of Contents for Samson RL112A

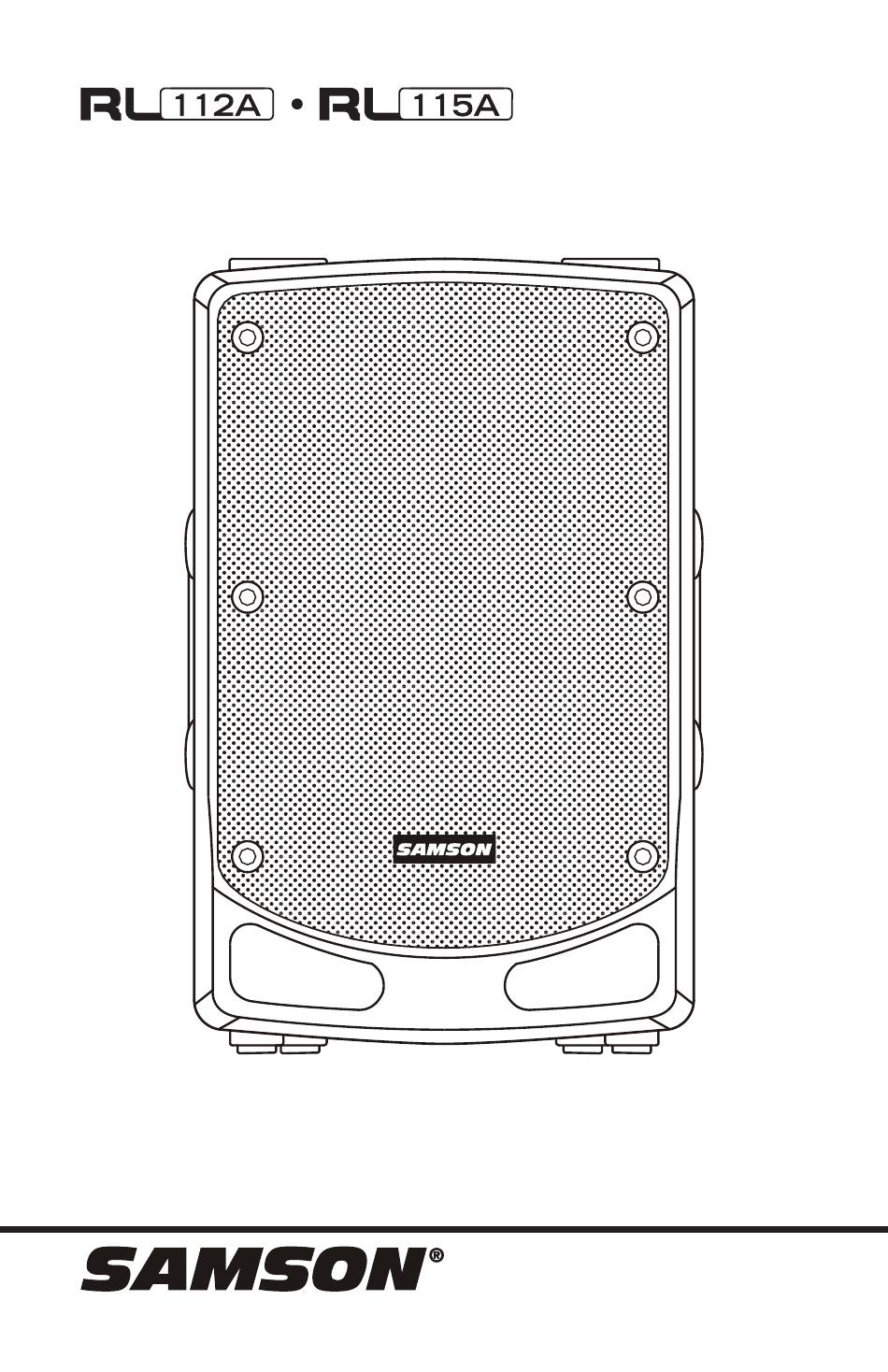

  • Page 1 800W 2-Way Active Loudspeakers Owner's Manual...

  • Page 2: Important Safety Information

    By doing so you will ensure that your disposed product undergoes the necessary treatment, re- covery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2019, Samson Technologies Corp. v2 Samson Technologies Corp. 278-B Duffy Ave...
  • Page 3 13. Use only with the cart stand, tripod bracket, or table specified by the manufacture, or sold with the apparatus. When a cart is used, utilize caution when moving the cart/apparatus combination to avoid injury from tip-over. RL112A/RL115A...
  • Page 4 Important Safety Information FCC Notice 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 Samson products in the future. Also, be sure to check out our website www.samsontech.com for complete information about our full product line.

  • Page 6: Quick Start

    Quick Start The following steps will help you get started using your RL112A/RL115A Loudspeakers with a mixer. Turn the RL Loudspeaker’s and Mixer Power switch to the OFF positions. Turn the VOLUME control(s) on the rear panel of the RL Loudspeaker(s) down, fully counterclockwise.

  • Page 7: Connecting A Wired Microphone

    • For larger sound reinforcement you can run several monitors using the Link Output to daisy-chain one RL Loudspeaker to another. Set the input Sensitivity on the additional cabinets to the LINE level position. RL112A/RL115A...
  • Page 8 Connecting XPD Wireless Microphone (sold separately) Plug the Samson XPD USB receiver into the XPD Wireless USB jack on the rear panel of the RL Loudspeaker. Turn the CH2 Volume knob on the RL Loudspeaker completely counterclockwise. Place a fresh set of AA (LR6) batteries...

  • Page 9: Rear Panel Layout

    Volume Control (CH 1) - This Volume knob adjusts the level of the Channel 1 input. XPD WIRELESS Input - Connect a Samson XPD digital wireless USB receiver to this input. The USB connector supplies 5V 200mA at of power to charge a small portable USB device like an MP3 player or smartphone.
  • Page 10 Floor Monitor The RL112A/RL115A may be used as floor stage monitors by placing the speaker on its angled side. When placed on its side, the RL Loudspeaker is tilted at a 45°...

  • Page 11: Specifications

    15.2” x 14” x 24.9” (LxWxH) 380mm x 327mm x 606.5mm 386mm x 356mm x 631.5mm Weight 30.8lb / 14kg 32.6lb / 14.8kg At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. RL112A/RL115A...
  • Page 12 Having Trouble with your RL Loudspeaker? We can help! CONTACT OUR SUPPORT TEAM: support@samsontech.com Our experts can help you resolve any issues. Follow us: @samson @samsontech @samson_technologies Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
