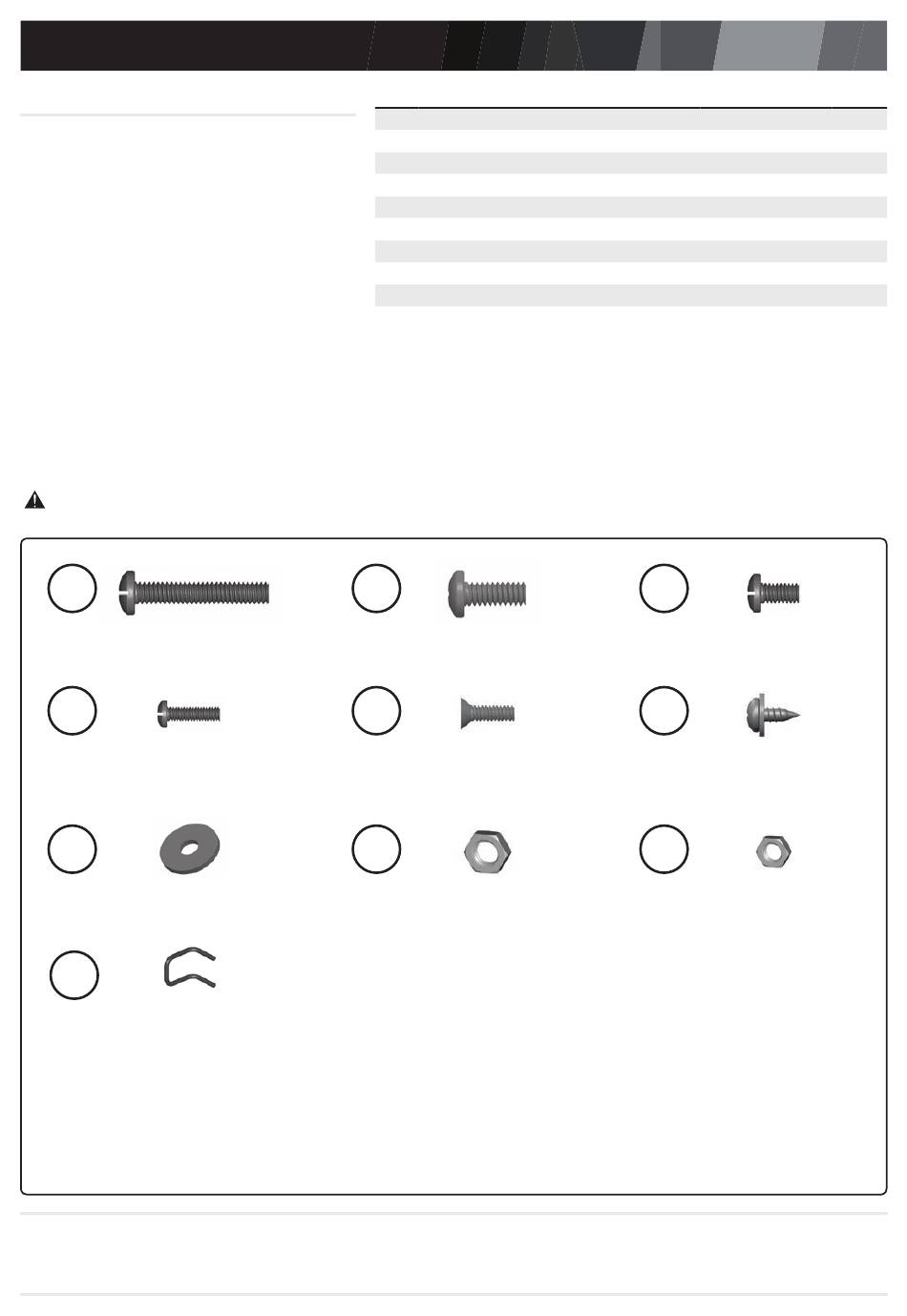

HARDWARE PACK
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (long and short)
• 1/4" Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.
1
1/4"-20UNCx38 Screw
X 6
4
NO.8-32UNCX18 Screw
X 2
7
Rubberized Washer
X 10
10
Wheel Lock Pin
X 1
BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are
recommended to assemble this barbecue.
No. Description
1
1/4"-20UNCx38 Screw
2
1/4"-20UNCx16 Screw
3
NO.10-24UNCX13 Screw
4
NO.8-32UNCX18 Screw
5
NO.8-32UNCX10 Screw
6
ST4.2X10 Tapping Screw
7
Rubberized Washer
8
1/4"-20UNC Nut
9
NO.8-32UNC Nut
10
Wheel Lock Pin
2
1/4"-20UNCx16 Screw
X 26
5
NO.8-32UNCX10 Screw
X 3
8
1/4"-20UNC Nut
X 2
1
Part Number
20120-13038-250
20120-13016-250
20124-10013-250
20132-08018-250
20332-08010-250
22500-42010-137B
G501-0054-9100
30220-13000-250
30232-08000-250
G350-0026-9000
3
NO.10-24UNCX13 Screw
X 18
6
ST4.2X10 Tapping Screw
X 9
9
NO.8-32UNC Nut
X 2
Qty.
6
26
18
2
3
9
10
2
2
1
