Summary of Contents for kincrome KP8501

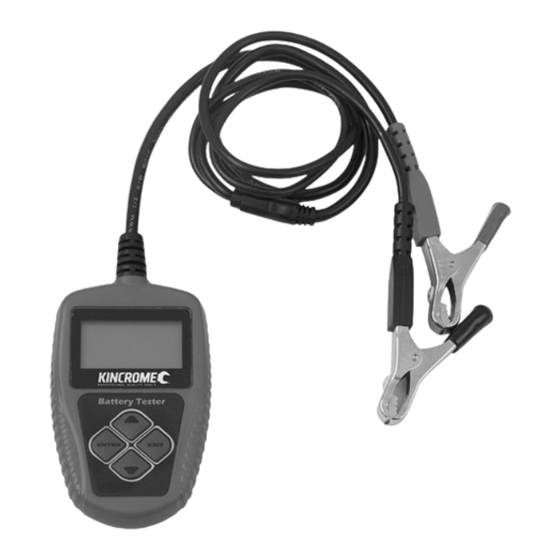

- Page 1 BATTERY TESTER ANALYZER 12V DC, 100 - 2000CCA, 30-220AH 100 - ACCURATE RESULTS 2000 CCA CAPACITY SECONDS EASY TO R E A D DIGITAL DISPLAY KP8501 ED2/May 17...
-
Page 2: Know Your Product
Operation ............ 3 - 10 Installing CD Drivers ......... 10 Warranty ............. 14 Know Your Product Specifications Up Key Part No KP8501 Down Key Battery Test Capability 12V DC, Exit Key 100 - 2000CCA/30-220Ah Enter Key Mini-USB Socket (Side of Product) -
Page 3: General Safety Warnings
This product is not a toy. Keep it out of reach of children. Maintain labels and nameplates on the unit. These carry important safety information. If unreadable or missing, contact Kincrome Tools for a replacement. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure. -
Page 4: Operation
BATTERY TESTER ANALYZER Risk of Electric Shock Never touch the clamps and the terminals with wet hands. Do not pull the clamps from the terminals by pulling on the clamp cables. Check the clamp leads for damage before every use. Be certain of the test battery polarity before connecting the battery tester analyzer clamps (7 &... - Page 5 BATTERY TESTER ANALYZER 3. Change the Language Connect tester as specified “Connecting the Tester”. Press Enter Key (4) to navigate to Main Menu. Press Down Key (2) to navigate to 6. System Setup, press Enter Key (4) (Fig 2). System Setup; Press the Down Key (2) to navigate to Select Language, press Enter Key (4) (Fig. 3). Using the Down Key (2), select required Language, press Enter Key (4).
- Page 6 BATTERY TESTER ANALYZER 7. Battery Test Result Examples Good Battery (Fig. 8) Healthy: 96% 490CCA The battery is in good working condition. Charge: 98% 12.64V Internal R=6.1m Ω Rated: 500A GOOD BATTERY Fig. 8 Good, Recharge (Fig. 9) Healthy: 78% 490CCA Good battery but low current, recharge before using.
-
Page 7: Battery Test
BATTERY TESTER ANALYZER 8. Battery In-Vehicle or Battery Out-Of-Vehicle Tests Main Menu Battery in vehicle means the battery is connected to the vehicles 1. Quick Test battery cables / terminals or vehicles accessories. 2. Battery in Vehicle Out of Vehicle means the battery is not connected to the vehicles battery cables / terminals. -
Page 8: Charging Test
BATTERY TESTER ANALYZER Cranking Test Results Cranking Test Cranking Test Time 780ms Time 1020ms Cranking Normal Cranking Cranking Test RPM Detected 10.13V Replace 10.13V Fig. 22 Fig. 20 Fig. 21 Test in Vehicle E. Charging Test 1. Battery Test Connect tester as specified “Connecting the Tester”. Press Enter Key (4) to navigate to Main Menu. - Page 9 BATTERY TESTER ANALYZER Charging Test Results Charging Volt Normal • Charging system shows the alternator output is normal, no problem has been detected. • Check if alternators’ drive belt is slipping or broken. Adjust or replace as required. • Check the connections between alternator and battery to ensure there are no loose or damaged connections.
-
Page 10: Review Data
BATTERY TESTER ANALYZER 9. Review Data Main Menu Connect tester as specified “Connecting the Tester” on Page 3. 1. Quick Test Press Enter Key (4) to navigate to Main Menu. 2. Battery in Vehicle Press Up Key (1) / Down Key (2) to navigate to “4. Review Data” (Fig. 32). 3. -
Page 11: Print Data
Fig. 35 Fig. 36 11. Print Data Navigate into “KP8501 Battery Tester Folder” (Fig.35) as described in “Installing KP8501 Drivers” Double Click Print Software folder (Fig 36). Double Click “PrintCOM” application. Note: This program can run from the CD, or copied to your local computer hard drive. -
Page 12: Measuring Range
BATTERY TESTER ANALYZER 12. Battery System Standard Description The battery tester analyzer will test each battery according to the selected system and rating. Cold Cranking Amps, specified by SAE&BCI, most frequently used value for starting battery at 0°F (-18°C) Battery Council International standard Cranking Amps standard, effective starting current value at 0°C Marine Cranking Amps standard, effective starting current value at 0°C. -
Page 13: Spare Parts
BATTERY TESTER ANALYZER Spare Parts No spare parts are available for this product. Contact Kincrome Customer Service for information regarding spares / replacement of this product. Office Contact Details Phone: 1300 657 528 Fax: 1300 556 005 Email: enquiries@kincrome.com.au Website: www.kincrome.com.au... - Page 14 BATTERY TESTER ANALYZER Also Available Cont. Booster Cables Standard 100A 12V DC • Suits 4 Cylinder Petrol Engines 2.5m Cable Length • • Heavy Duty Terminal Clamps KP1451 Standard 200A 12V DC • Suits 4, 6 Cylinder Petrol Engines 2.5m Cable Length •...
- Page 15 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For further details please visit www.kincrome.com.au or call us. Due to minor changes in design or...
- Page 16 www.kincrome.com.au...
