Summary of Contents for Euromaid FGG54W

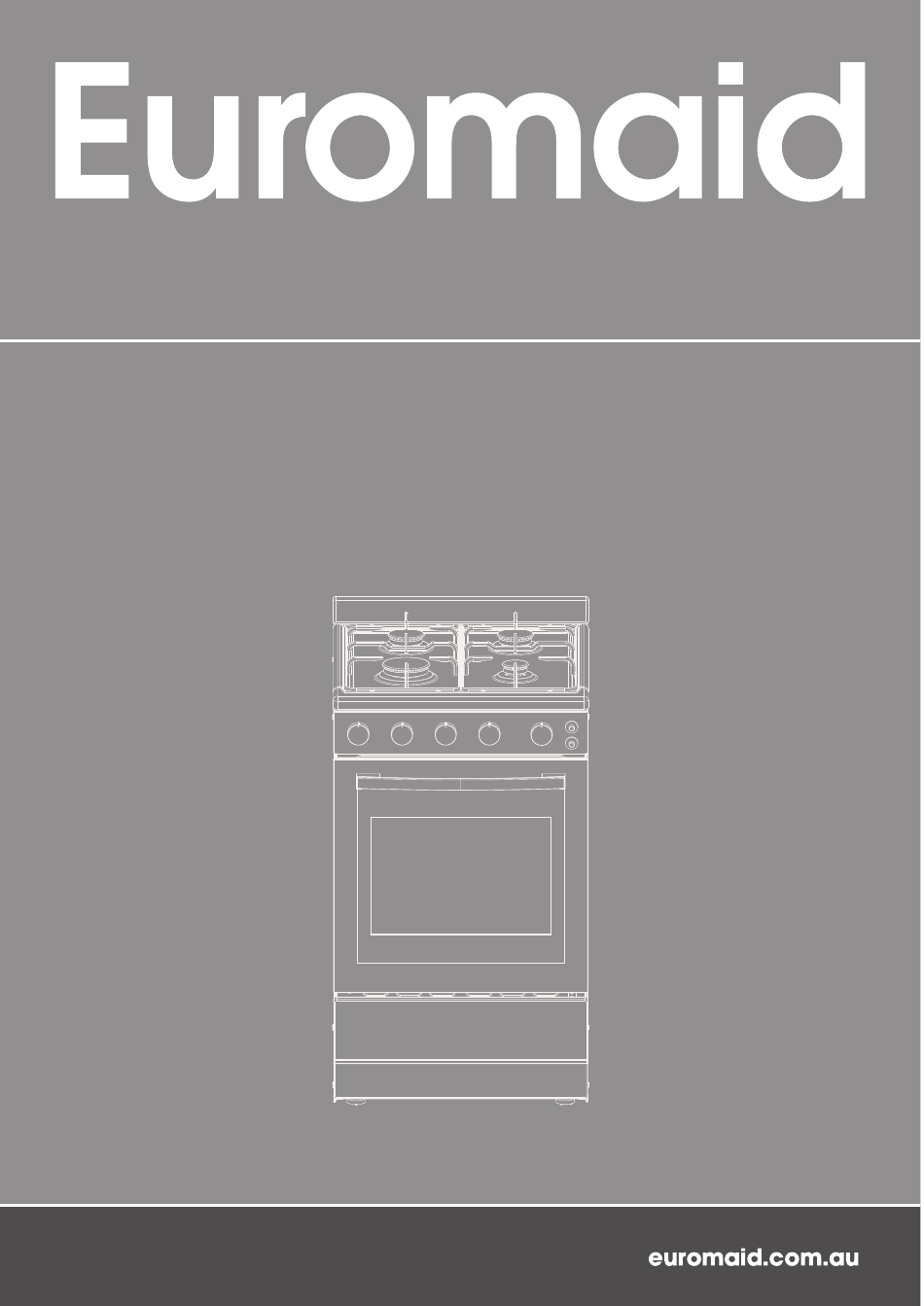

- Page 1 User Manual 54cm Upright Cooking Appliances FGG54W / GG54GW / F54GGW...
- Page 2 Product / Installer details For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the information is always at hand. Product Details Model number: ________________________________________________________________________________________ Description: ___________________________________________________________________________________________ Serial number: _________________________________________________________________________________________ (Located on the product rating label) Purchase Details Date of purchase: ______________________________________________________________________________________...
-
Page 3: Installation
Dear Customer, Congratulations on the purchase of your new product from Home Appliances Pty Ltd. We recommend you please take some time to read the instruction manual thoroughly to familiarise yourself with the functionality and operations to ensure optimum performance of your new appliance. After reading the manual, please store it in a safe and accessible location for future reference. -
Page 4: Connection To The Gas Supply
CONNECTION TO THE GAS SUPPLY... - Page 5 We recommend that you read the instructions in this Manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance.
- Page 6 、 、 This appliance must not be used as a space heater. Do not remove any labels or use abrasive/ corrosive cleaners on. Do not use corrosive cleaners eg oven cleaners that contain caustic soda. 、 、 Do not leave grill on unattended. ...
- Page 7 、 、 1. Focal plane 2. Burner with removable cap, distributor 3. Control Panel 4. Grilling rack 5. Oven door 6. Anti slip feet 7. Under the cover 8. The burner 9. Burning baffle 10.Grill burner 11. Ignition switch 12. Back wall plate 1.
- Page 8 Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. New appliances can have an odor during first operation. It is recommended to ‘run in’ your oven before you ...
- Page 9 If the burner accidentally goes out, turn the knob to the off ( ) position and wait at least one minute before trying to relight it. The oven thermostat has a screw for regulating the minimum setting, accessed by removing the thermostat knob.
- Page 10 Shelf position is counted from the bottom shelf up. Bottom shelf position is 1.Turn down temperatures shown Recommended temperature （℃） Meat/Poultry/Fish Minutes per kilogram Rare 35-40 Beef Medium 45-50 Well done 55-60 Medium Lamb Well done Veal Pork Chicken 180-200 45-60 Duck 180-200...
- Page 11 not browning in fan oven Oven temperature is too low Increase temperature to 200 - 220 Not long enough in oven Continue cooking for another 15+ minutes Also spacing and size of food on trays and the number of baking dishes in the oven can affect air circulation. 、...
- Page 12 GOOD (recessed base) (convex base) (undersize) (oversize) (moisture on hotplate) (no utensil)
- Page 14 Cast iron pan frame components Iron burner cover Burner Crown Burner Cup...
- Page 15 cleaner applied with a nylon scourer. Open the door fully. Remove oven shelves and side racks. Clean in hot soapy water. For a more thorough clean, you can remove and disassemble the oven door. Proceed as follows: Oven door structures 1 remove and assemble procedure: ...
- Page 16 、 、 If you have a problem with your appliance, check the table below before calling service. You may be able to avoid a service call by and avoid unnecessary inconvenience and expense. For cooking problems, refer to Handling Baking Problems. Problem Causes What to do...
- Page 17 、 、 When packaging is removed from product you will notice there are several items nested in the packaging base. The burner crowns, burner caps and trivets can be fitted to the hob. Note: That work trivet is a different size and must be correctly located over wok burner. 16.2 Locating the cooker This appliance must be installed by an authorised person in accordance with this instruction manual, AS/NZS 5601 - Gas installations (installation and pipe sizing), local gas fitting regulations, local electrical regulations, local water...
- Page 19 When the installation is complete, always check that all the unions are absolutely tight using a soapy solution. Never use a flame to make this check.
- Page 20 、 、 Check the manometer zero point is correct. Connect the manometer to the cooker pressure test point. This is located on the regulator or LPG inlet fitting. Turn on the gas supply and the electricity (if applicable) and try to ignite the gas. NOTE: It will take additional time to light the gas for the first time as air needs to be purged from the pipes.
- Page 21 from rear...
-
Page 22: Technical Specifications
20、Technical specifications oven capacity(L) product dimension（mm） 540*600*910 package size（mm） 630*735*982 gross/net weight（Kg） 49.5/57 For all product enquiries (including warranty support), please contact our customer care team 1800 444 357 or via email:sales@lendimplex.com.au Gas Type: Natural Gas @ 1.00kPa Test Point Pressurej Burner Injector Size (mm) N.G.C. - Page 23 For all product enquiries (including warranty support), please contact our Customer Care team on 1800 444 357 or via email: customercare@hapl.com.au...
Need help?
Do you have a question about the FGG54W and is the answer not in the manual?
Questions and answers
Euromaid FGG54W. I'm a tenant. Even the lowest setting on the smallest burner is way too high for simmering. Is there any way to adjust it. The manual only tells you how to adjust the oven settings, not the burners. Do I need to get a fitter in?
To adjust the burner settings on a Euromaid FGG54W for a lower simmering temperature:
1. Light the oven burner and let it run at the highest setting for 10-15 minutes with the oven door closed.
2. Turn the thermostat knob to the minimum temperature setting.
3. Remove the thermostat knob to access the adjustment screw.
4. Use a straight-head screwdriver to adjust:
- Turn the screw fully clockwise for bottled gas.
- For natural gas, turn the screw one full circle counterclockwise after tightening clockwise.
- For LPG, turn the screw 1/8 of a circle counterclockwise after tightening clockwise.
5. Ensure the flame remains stable and uniform when switching from maximum to minimum setting.
6. Close the oven door and check that the burner stays on at the minimum setting.
This answer is automatically generated
