Summary of Contents for Euromaid FFS5463W

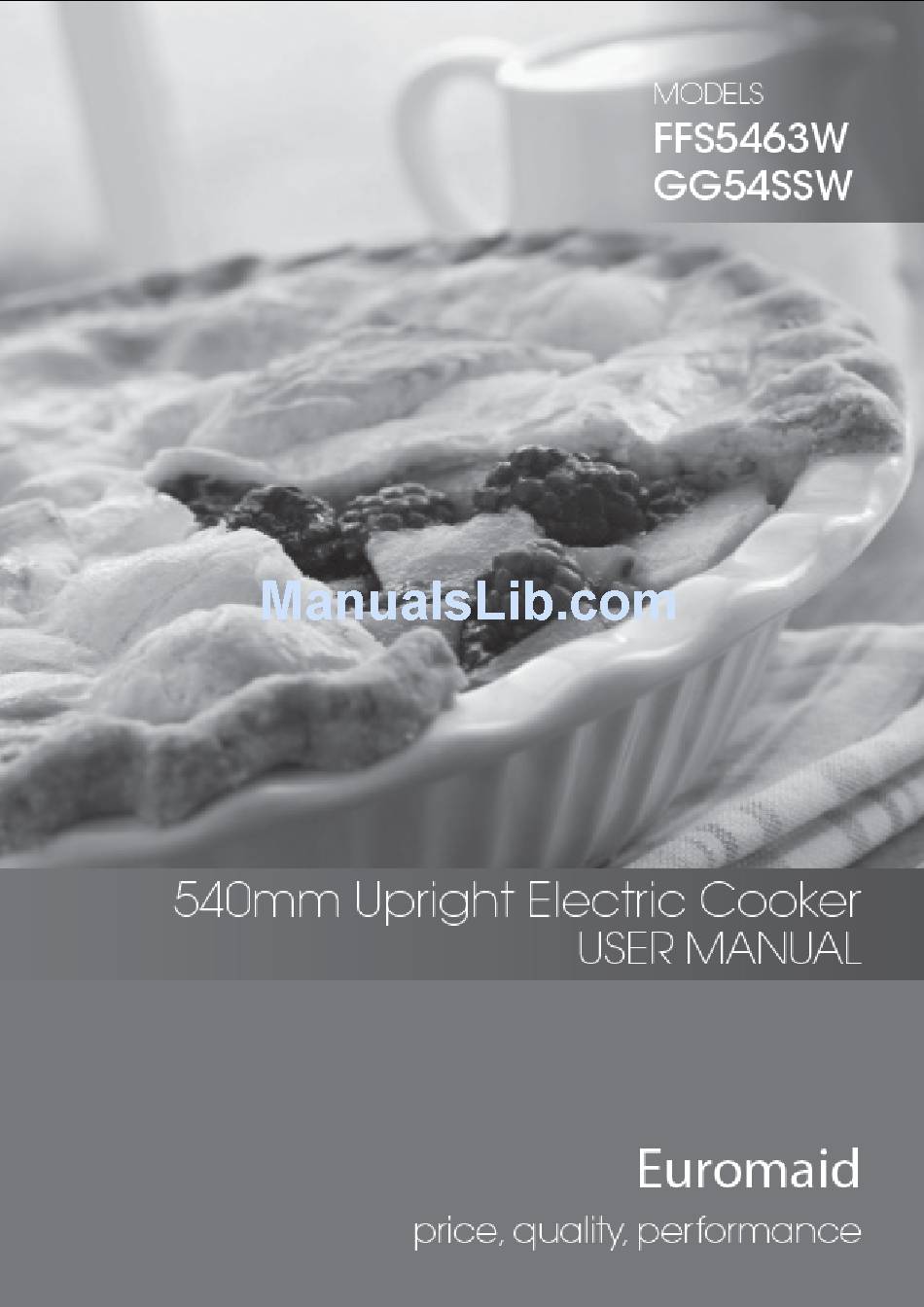

- Page 1 540mm Upright Cooker with single cavity user manual...
-
Page 2: Table Of Contents
540mm Upright Cooker with single cavity user manual contents Conditions of use ...................... 3 Safety precautions ....................3 Other important safety information ................3 Warnings for use of oven, and appliance hob ............4 Disposal of packaging ....................4 Installation, cleaning and servicing ................4 Product description .................... -
Page 3: Conditions Of Use
540mm Upright Cooker with single cavity user manual We recommend that you read the instructions in this Manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. -
Page 4: Warnings For Use Of Oven And Appliance Hob
540mm Upright Cooker with single cavity user manual Warnings for use of oven and appliance hob Oven warnings • Do not push down or apply any weight on open oven door. • Do not line oven with foil or place anything on the bottom of the oven while baking to avoid permanent damage, as trapped heat will crack or craze the enamel floor of the oven cavity liner. -
Page 5: Product Description
540mm Upright Cooker with single cavity user manual Product description Description of electric cooker 1. Cooktop hob area 2. Hotplate Burner (4 of) 3. Control Panel 4. Chrome oven shelf (1 supplied) 5. Baking tray with grill insert (1 supplied) 6. -
Page 6: First Time Use The Appliance
540mm Upright Cooker with single cavity user manual First time use of the appliance Setting the time If you have purchased a model fitted with a 3 button programmable timer, you must set the time of day before you can operate your appliance Note: The clock has a 24 hour display •... -
Page 7: Using The Oven Of Our Electric Cooker
540mm Upright Cooker with single cavity user manual Using the oven of your electric cooker Set: 1) Oven Function 2) Temperature 3) Cooking time 1) Oven Function Description of oven functions (mode) Lamp The lamp of the oven is on. No heating elements are on. Grill (uses upper element) Suitable for grilling food or browning food. -
Page 8: Button Digital Timer
540mm Upright Cooker with single cavity user manual 3 button digital timer with "Auto-Off "feature (some models only) Heating indication Clock indication Hour indication Second indication Minute indication Increase button Set / Mode button Decrease button Starting up display After power is connected to the cooker, the screen will be“00：00”, and“ ”(clock mode) indicator are visible. -
Page 9: Oven Shelf Guide
540mm Upright Cooker with single cavity user manual Oven shelf location (5 shelf positions side racks) Oven cooking guide The following is intended as a guide only. It is often required to set oven 10-20 degrees above or below this guide to get the result you want. Also adjustments are needed for the cooking time to suit personal desired results. -
Page 10: Understanding Baking Problems
540mm Upright Cooker with single cavity user manual Understanding baking problems Problem Causes Remedy Incorrect shelf position Select shelf that puts food in centre of oven Oven tray too large Remove oven tray. Use smaller trays or dishes Uneven cooking Trays not in centre Put trays in centre Oven... -
Page 11: Using The Hotplates Of Your Cooker
540mm Upright Cooker with single cavity user manual Using the hotplates of your cooker Hotplates safety warnings • Do not use pots and pans which are unsteady, as these could overbalance. • Do not use mats, heat diffusers or wok stands. These will cause a temperature build-up which can damage the cook top. -
Page 12: Get To Know Your Oven
540mm Upright Cooker with single cavity user manual Get to know your oven Get to know your new oven with this ‘Simple Test Cake’Although we strive for a perfect performing oven, it’s possible that there will be some variation in colour when baking. Therefore, we suggest this simple, easy and delicious to make Simple Test Cake, it can help you understand your new oven. -
Page 13: Cleaning The Oven
540mm Upright Cooker with single cavity user manual Cleaning the oven Safety warnings about cleaning • Always make sure that the cooker is turned off before cleaning. • Always clean cooker immediately after use. • Do not use steam cleaners. These may cause moisture build-up. •... -
Page 14: Cleaning The Oven Door
540mm Upright Cooker with single cavity user manual Cleaning the oven door / How to remove the oven door For a more thorough clean, you can remove and disassemble the oven door. Proceed as follows: Oven door structures 1 remove and assemble procedure: •... -
Page 15: Replacing The Lamp
540mm Upright Cooker with single cavity user manual Replacing the Oven Lamp • Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains ;or unplug the appliance (gas) •... -
Page 16: Solving Problems
Remove shelf and insert as per correctly, diagram upside down or back to front Clock display off Household fuse blown Check fuses, power supply or power supply is off Note: Only Euromaid Authorised service agents should carry out servicing otherwise warranty may be void. -
Page 17: Installing Cooker - Power Connections
540mm Upright Cooker with single cavity user manual Installing cooker - power connections Fitting on a Power Supply Cable Connecting appropriate power supply ` terminal board/ connector block: • Using a screwdriver ,prize open tabs of the Terminal board cover. •... -
Page 18: Installing Your New Cooker
540mm Upright Cooker with single cavity user manual Installing your new cooker Safety warnings about installation • The cooker must be installed and serviced only by an authorized person. • A certificate of compliance must be supplied by Installer and is to be kept by the customer. -
Page 19: Installation Sequence
540mm Upright Cooker with single cavity user manual Installation Sequence (Refer to diagram relating to minimum Clearances required for correct installation) • • • • • • • • • • • Determine position of cooker and ant-tilt plate. • Securely fix the anti-tilt plate to the floor with appropriate fasteners. -
Page 20: Technical Specifications
2.15kW Oven power (W） 5.0KW Cooktop power (W） 540*630*910 Product dimension（mm） 636*740*976 Package size（mm） 55.8 / 46.3 Gross / net weight（kg） Model FFS5463W Oven capacity (L) Voltage(v) 220-240 Frequency (Hz) 50/60 Circuit breaker(A) 32amp 2.15kW Oven power（W） 5.0KW Cooktop power（W）... - Page 21 540mm Upright Cooker with single cavity user manual THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY...
- Page 22 540mm Upright Cooker with single cavity user manual...
