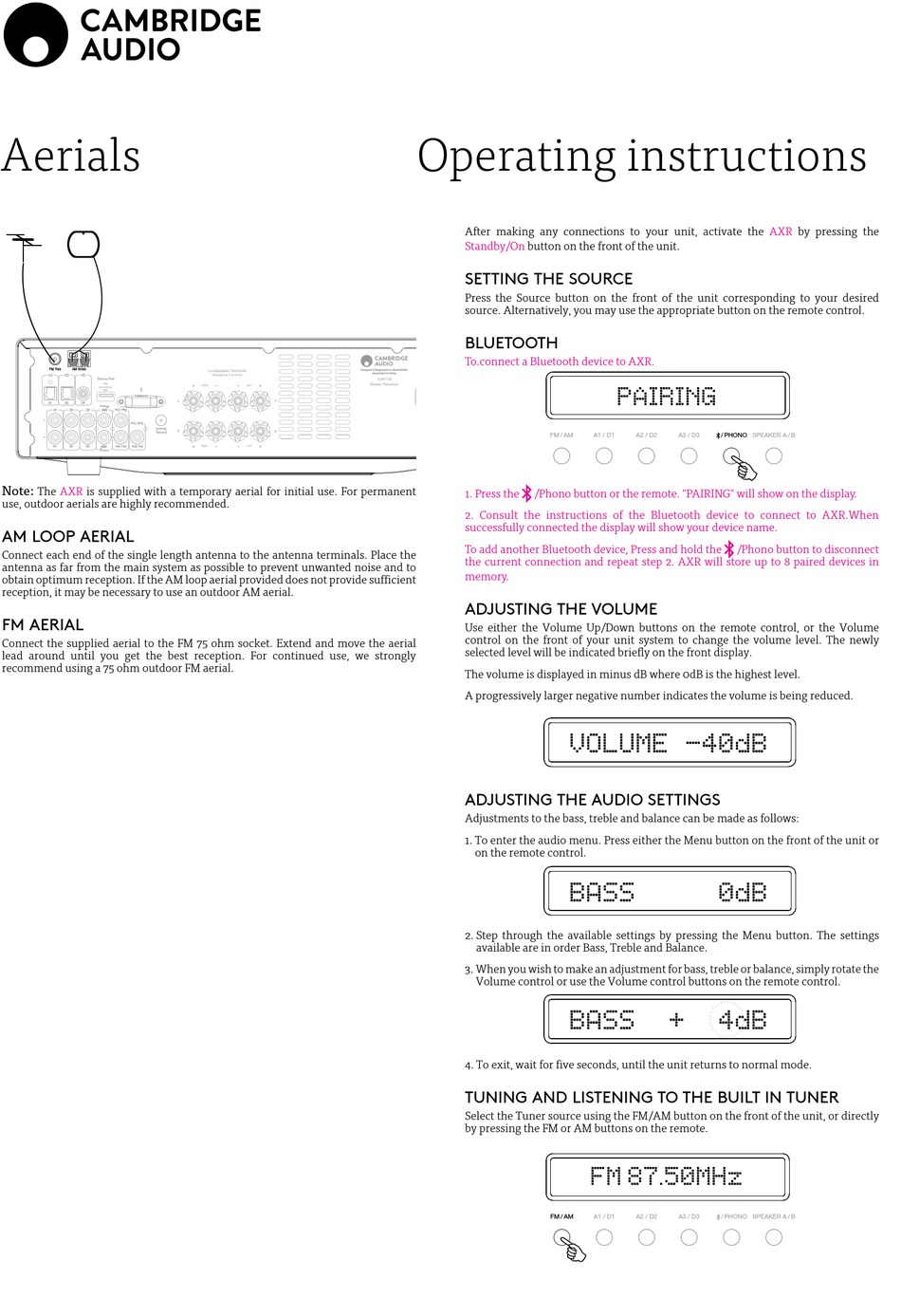

Aerials

FM 75 AM 300
Ω Ω
Service Port
5V 400mA
D1 D2 D3
Ground
A1 A2 A3 MM Rec Out Sub Out
Phono
Note:
The AXR is supplied with a temporary aerial for initial use. For permanent
use, outdoor aerials are highly recommended.
AM LOOP AERIAL
Connect each end of the single length antenna to the antenna terminals. Place the
antenna as far from the main system as possible to prevent unwanted noise and to
obtain optimum reception. If the AM loop aerial provided does not provide sufficient
reception, it may be necessary to use an outdoor AM aerial.
FM AERIAL
Connect the supplied aerial to the FM 75 ohm socket. Extend and move the aerial
lead around until you get the best reception. For continued use, we strongly
recommend using a 75 ohm outdoor FM aerial.
Loudspeaker Terminals
Impedance 4–8 ohms
A
B
Right Left

Operating instructions

After making any connections to your unit, activate the
Standby/On
SETTING THE SOURCE
Press the Source button on the front of the unit corresponding to your desired
source. Alternatively, you may use the appropriate button on the remote control.
BLUETOOTH
To.connect a Bluetooth device to AXR.
Designed & Engineered in Great Britain
Assembled in China
AXR100
Mains Voltage Selector Switch
Stereo Receiver
115/220-230V~ 50/60Hz
Power AC
Max Power Consumption: 550W
1. Press the
2. Consult the instructions of the Bluetooth device to connect to AXR.When
successfully connected the display will show your device name.
To add another Bluetooth device, Press and hold the
the current connection and repeat step 2. AXR will store up to 8 paired devices in
memory.
ADJUSTING THE VOLUME
Use either the Volume Up/Down buttons on the remote control, or the Volume
control on the front of your unit system to change the volume level. The newly
selected level will be indicated briefly on the front display.
The volume is displayed in minus dB where 0dB is the highest level.
A progressively larger negative number indicates the volume is being reduced.
ADJUSTING THE AUDIO SETTINGS
Adjustments to the bass, treble and balance can be made as follows:
1. To enter the audio menu. Press either the Menu button on the front of the unit or
on the remote control.
2. Step through the available settings by pressing the Menu button. The settings
available are in order Bass, Treble and Balance.
3. When you wish to make an adjustment for bass, treble or balance, simply rotate the
Volume control or use the Volume control buttons on the remote control.
4. To exit, wait for five seconds, until the unit returns to normal mode.
TUNING AND LISTENING TO THE BUILT IN TUNER
Select the Tuner source using the FM/AM button on the front of the unit, or directly
by pressing the FM or AM buttons on the remote.
button on the front of the unit.
PAIRING
FM / AM A1 / D1 A2 / D2 A3 / D3
/Phono button or the remote. "PAIRING" will show on the display.
VOLUME -40dB
BASS
BASS +
FM 87.50MHz
FM / AM A1 / D1 A2 / D2 A3 / D3
AXR by pressing the
/ PHONO SPEAKER A / B
/Phono button to disconnect
0dB
4dB
/ PHONO SPEAKER A / B
