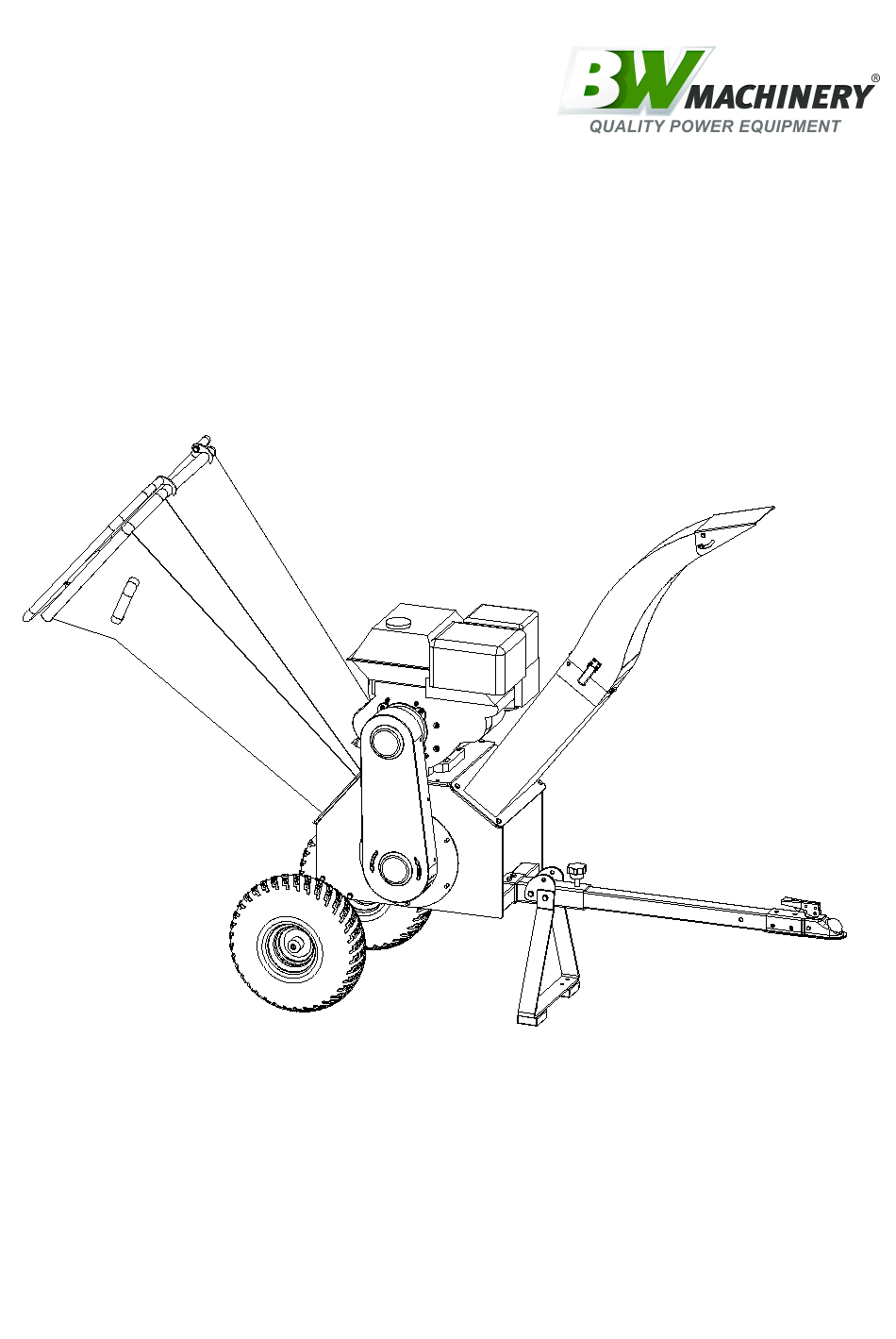

- Page 1 Greatbull Chipper Shredder User’s Manual GBK130, GBK130H and GBK130K Please read through this owner’s manual carefully before using the product, to insure the safety of yourself and others. *Due to continuing improvements, actual product may differ slightly from the product described herein.
-
Page 2: Table Of Contents
Index 1. Safety Instructions...................1 2. Technical Features.................. 2 3. Installation Steps..................3 4. Operating Instructions................5 4.1 Starting Machine:................5 4.2 Chipping:..................... 6 4.3 Emergency Button:................6 4.4 Blocking of The Rotor:...............7 4.5 Stopping Machine:................7 5. Basic Maintenance...................8 5.1 Lubricating Oil................... 8 5.2 Chipper Parts Regularly Checking..........8 5.3 Changing the blades:................8 5.4 Changing engine oil:................9 6. -
Page 3: Safety Instructions
11. Before using the machine, please read the carefully the instructions and understand well. Failure to comply with instructions could result in personal injury and/or damage to GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 4: Technical Features
Model: GBK130/GBK130H/GBK130K Max. Chipping Capacity: 100mm Chipping Fineness: Granulated detrital Function: Chipping leaves, branches, crop straw and farming feeds and etc. Max. Blade Speed: 2530rpm Engine Type: OHV 4-stroke Briggs & Stratton or Honda GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 5: Installation Steps
The above blade maximum speed is achieved with the engine running at the maximum output. 3. Installation Steps Step1 — Wheels and wheel axel GBK130 Series Manual Book V1.01 B.W. Machinery... - Page 6 Step2 — Support feet & tow bar Step3 — Feeding chute & discharge chute Step4 — Connect the wires Step5 — Battery(only for model GBK130K) GBK130 Series Manual Book V1.01 B.W. Machinery...
-
Page 7: Operating Instructions
Pull the starting cord until the engine starts. Push the choke lever off. Turn the throttle lever to fastest position. (must use highest speed while chipping) If engine is hot, it is not necessary to use the choke when restarting. GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 8: Chipping
The emergency stop button is located on the top of the feeding chute (see Fig.14) . Push the emergency stop button by pressing the button and the engine will stop immediately. To release the emergency stop button, turn the red button. Within half a GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 9: Blocking Of The Rotor
Use a branch or a stick to remove any blocked materials in the drum. Do not use your hands. 4.5 Stopping Machine: Make sure the machine is completely emptied before stopping the engine (otherwise rotor may be jammed when using it for next time). GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 10: Basic Maintenance
5.3 Changing the blades: Stop the engine (Put the on/off switch in the “off” position) and disconnect the safety switch cable. Remove the feeding chute. (Two people required) GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 11: Changing Engine Oil
Unscrew the bolt to drain the engine oil. Screw the bolt on and add new engine oil. (see Figs.21&22) Tips: For Honda GX390 model, add 1.1 litre (1100mL) of genuine Honda 10W30 GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 12: Transport And Storage
3. For storage, keep the machine out of reach of children. Store the machine in a well ventilated place. Drain the fuel into a petrol tank if not using is for an extended period of time. GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 13: Troubleshooting
(belt can be purchased from us, call 1300454585) Need to adjust blade anvil. The gap should be Chipped material too coarse no smaller than 0.5mm and not bigger than 0.95mm. (see chapter 5.3) 7. Troubleshooting GBK130 Series Manual Book V1.01 B.W. Machinery... -
Page 14: Spare Parts Diagram
8. Spare Parts Diagram GBK130 Series Manual Book V1.01 B.W. Machinery... - Page 15 GBK130 Series Manual Book V1.01 B.W. Machinery...
-
Page 16: Spare Parts List
9. Spare Parts List GBK130 Series Manual Book V1.01 B.W. Machinery... - Page 17 Customer Service: GBK130 Series Manual Book V1.01 B.W. Machinery...
- Page 18 303 Warrigal Road, Cheltenham, VIC 3192, Austrlia Telephone: 1300 454 585 Email: kmowersorder@gmail.com Website: WWW.BWMACHINERY.COM.AU Spare parts are available from our dealers or our official website. GBK130 Series Manual Book V1.01 B.W. Machinery...
