- Page 1 Cód. 50121600 Protocol converter CD-PLUS/90 Instructions manual TCD-PLUS/90ML rev.0112...
-
Page 2: System Characteristics
INTRODUCTION First of all we would like to thank and congratulate you for the purchase of this product manufactured by Golmar. The commitment to reach the satisfaction of our customers is stated through the ISO-9001 certification and for the manufacturing of products like this one. -
Page 3: Operation Modes
Permits replace a faulty 90 door panel by a Plus door panel, the Plus door panel installed will be connected to the 90 system through the protocol converter CD-Plus/90. There is an option to place a CE-990 Plus porter's exchange between the converter and the Plus door panel. -
Page 4: Installation

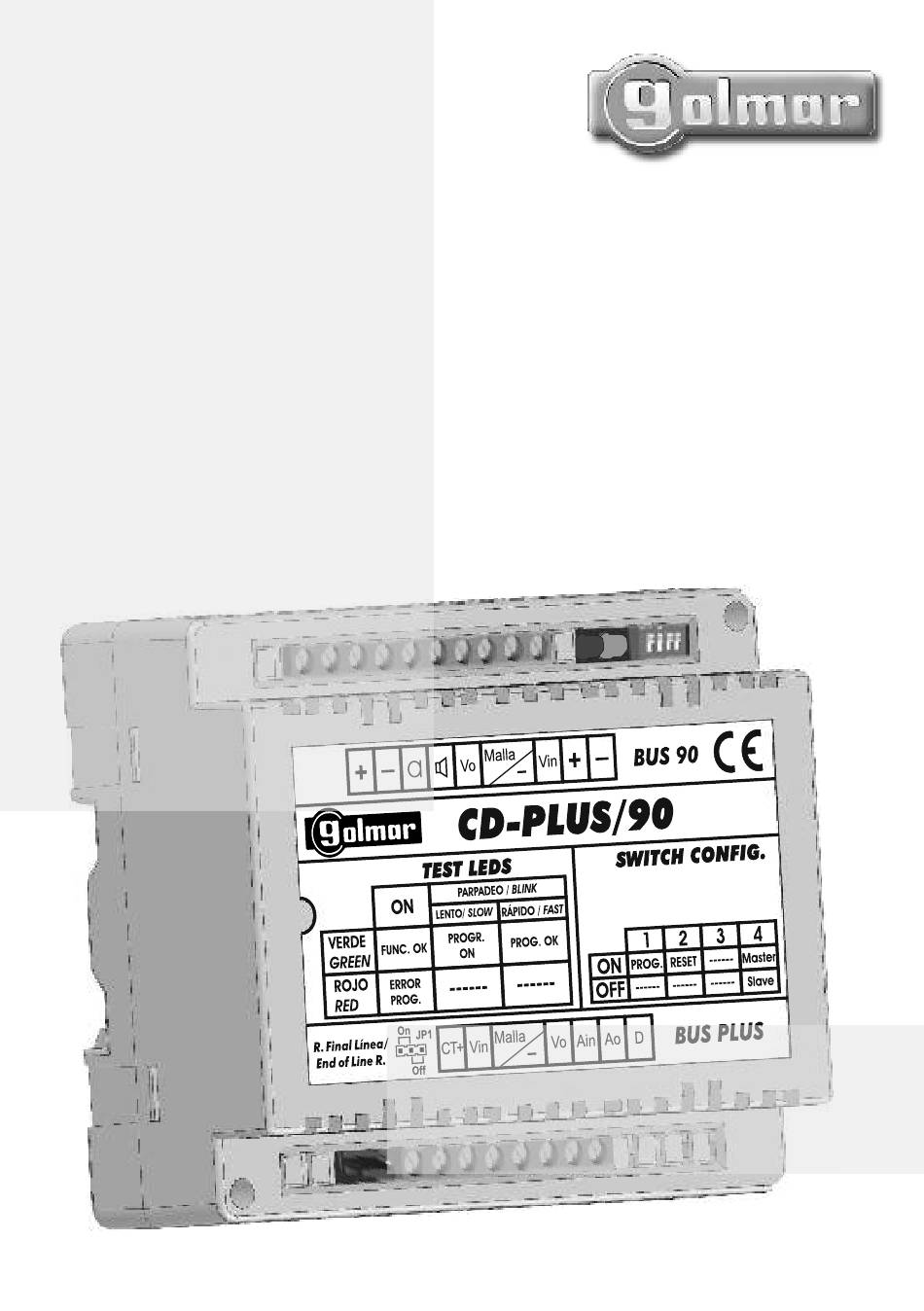

DESCRIPTION escription of the converter. DIN rail latch release Autodiagnostic LEDs Configuration dip switch 90 Bus connection block Label Plus Bus connection block End of line configuration jumper JP1 INSTALLATION etail of the converter installation. Install the converter in a dry and protected place without risk of drip or water projections. To avoid damage, the conveter must be firmly fixed. - Page 5 CONFIGURATION escription of the configuration dip switch. The SW1 configuration dip switch is located on the upper right part of the module. Set to ON to programme the backbone. Once the programming has finished, return the switch to the OFF position. To reset the converter, switch to ON (all leds Off) and then set to OFF (green led On), after an operation or programming errors.
-
Page 6: Autodiagnostic Leds
AUTODIAGNOSTIC LEDS escription of autodiagnostic LEDs. The autodiagnostic LEDs are placed next to the configuration dip switch. Green Led Fixed: Correct operation. Slow blinking: Programming active (SW1-1 to ON). Quick blinking: Programming finished. Red Led Fixed: Programming error, restart programming from the beginning. -
Page 7: Installation Diagrams
T-840 T-790VD Next Distributor HZ _ T-840 T-790VD HZ _ M =Master. 90 BUS S =Slave. Malla CD-PLUS/90 A-490/1 A-490/2 Malla 0 220 PLUS BUS Plus door panel EL500SE FA- PLUS/C ver. 938072 230 110 0 AP - - +... - Page 8 Cut the resistor in all distributors except in the last one. Configuring the end of line in the last monitor. M =Master. S =Slave. 90 BUS Malla CD-PLUS/90 A-490/1 A-490/2 Malla 0 220 PLUS BUS Plus door panel EL500SE FA- PLUS/C ver.
- Page 9 Configuring the end of line in the last monitor. M =Master. S =Slave. 90 BUS Malla Malla Vp1 Mp1 TP In TP Out Coax In CD-PLUS/90 Coax to TP A-490/1 A-490/2 EL-564 TP to Coax Malla Malla Malla Vp2 Mp2...
- Page 10 A1 2C PV-90 A-490/1 A-490/2 1 2 3 Vout L1 L2 CV CV A 0 220 90 BUS General door panel Malla CD-PLUS/90 STADIO Malla PLUS BUS FA-PLUS/C rev.938072 INOX General door panel Communication R. : ACTIVATED 230 110 0 MALLA...
- Page 11 Platea 90 D2L-90 A1 2C A1 2C Shiner 90 Platea 90 D2L-90 A1 2C A1 2C 90 BUS Malla CD-PLUS/90 A-490/1 A-490/2 Malla 0 220 PLUS BUS Cut the resistor in all distributors except in FA-PLUS/C the last one. rev.938072 Configuring the end of line in the last monitor.
- Page 12 A1 2C PV-90 A-490/1 A-490/2 1 2 3 Vout L1 L2 CV CV A 0 220 90 BUS Malla EL-564 CD-PLUS/90 Malla Malla Malla Vp2 Mp2 Vout PLUS BUS FA-PLUS/C rev.938072 General door panel Communication R. : ACTIVATED 230 110 0...
- Page 13 Platea 90 D2L-90 A1 2C A1 2C Shiner 90 Platea 90 D2L-90 A1 2C A1 2C 90 BUS Malla EL-564 CD-PLUS/90 A-490/1 A-490/2 Malla Malla Malla Vp2 Mp2 Vout 0 220 PLUS BUS Cut the resistor in all distributors except in the last one.
-
Page 14: Coded Panel
Cut the resistor in all distributors except in the last one. Configuring the end of line in the last monitor. STADIO M =Master. S =Slave. 90 BUS INOX Malla CD-PLUS/90 A-490/1 A-490/2 Malla ROCK 0 220 PLUS BUS O.K. ANCEL FA- PLUS/C ver. 938072 Coded panel Communication R. - Page 15 Configuring the end of line in the last monitor. M =Master. S =Slave. 90 BUS Malla Malla Vp1 Mp1 TP In TP Out Coax In CD-PLUS/90 Coax to TP A-490/1 A-490/2 EL-564 TP to Coax Malla Malla Malla Vp2 Mp2...
-
Page 16: Troubleshooting Hints
