  • Page 1 Cód. 50124572 Protocol converter CD-PLUS/R5 Instructions manual TCD-R5ML rev.0114...

  • Page 2: Table Of Contents

    INTRODUCTION First of all we would like to thank and congratulate you for the purchase of this product manufactured by Golmar. The commitment to reach the satisfaction of our customers is stated through the ISO-9001 certification and for the manufacturing of products like this one.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS O Install or modify the equipment without the power connected. O The installation and handling of these equipments must be performed by authorised personnel. O The entire installation must be at least 40 cm. away from any other installation. O Do not use excessive force when tightening the connector screws.
  • Page 4 OPERATION MODES Backbone encoder (general door panels) Permits Plus general door panels with VISTA PLUS inner portals, allowing placement of a CETK-590 Plus porter's exchange between both elements as an option. This type of installation requires a converter for each inner backbone. Installation diagram on pages 41-42.

  • Page 5: Description

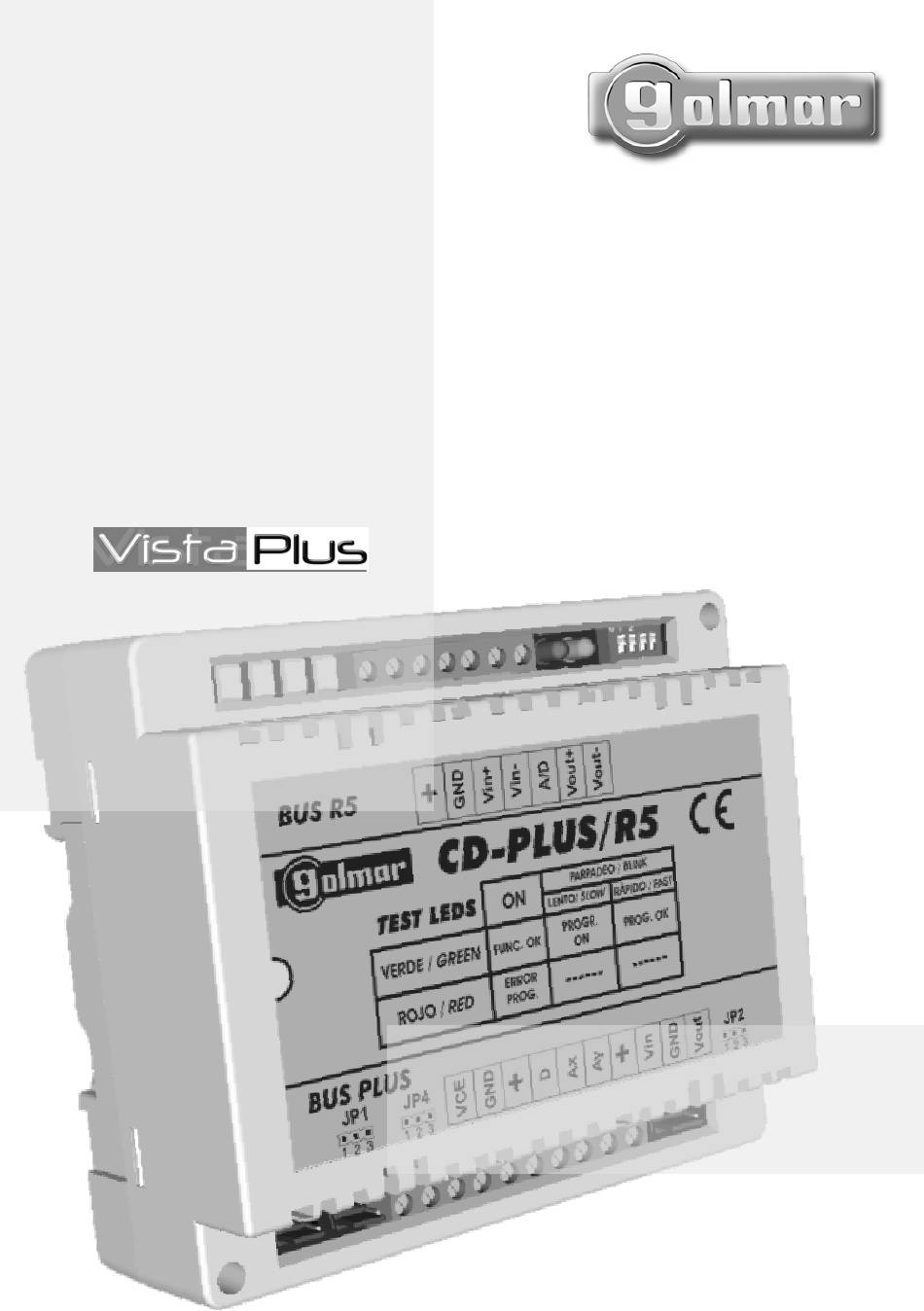

    DESCRIPTION escription of the converter. escription of the converter. DIN rail latch release DIN rail latch release Autodiagnostic LEDs Autodiagnostic LEDs Configuration dip switch Configuration dip switch R5 connection block R5 connection block PLUS connection block PLUS connection block INSTALLATION etail of the converter installation.
  • Page 6 OFF position. Auto End of line resistor (Only in backbone encoder mode). Set to Off in all converters except the last one (end of the coaxial cable). To be handled exclusively by Golmar personnel. Set always to Off. Factory default...
  • Page 7 AUTODIAGNOSTIC LEDS scription of autodiagnostic LEDs. The autodiagnostic LEDs are placed next to the configuration dip switch. Green LED Fixed: Correct operation. Slow blinking: Programming activated. Quick blinking: Programming finished. Red LED Fixed: Programming error, go through the steps from the beginning.

  • Page 8: Installation Diagrams

    INSTALLATION DIAGRAMS orter's exchange interface mode with D4L-R5 distributor. Tekna R5 Tekna R5 RCTK RCTK R. Line R. Line D4L-R5 VD1+ VD1- SALIDA VD4- VD4+ VD2+ VD2- ENTRADA VD3- VD3+ FA- PLUS/C ver. 938072 CETK-590 Plus Take off JP1 jumper of all the distributors except in the last one.

  • Page 9: Porter's Exchange Interface Mode With D4L-R5R Distributor

    INSTALLATION DIAGRAMS orter's exchange interface mode with D4L-R5R distributor. Take off JP1 jumper of Tekna R5 Tekna R5 all the distributors except RCTK RCTK in the last one. R. Line R. Line D4L-R5R Vout Junction Box FA- PLUS/C ver. 938072 CETK-590 Plus a bc 2 d ef 3...
  • Page 10 INSTALLATION DIAGRAMS ackbone encoder mode (general door panels) Backbone 1 Vista Plus Door Panel FA-PLUS/C rev.938072 EL500/R5 230 110 0 CV1 +12 Main General door panel FA-PLUS/C R5-BUS rev.938072 GND MP VP Vout+ Vout- CD-PLUS/R5 STADIO 230 110 0 PLUS-BUS VCE GND Vin GND Vout Main...
  • Page 11 INSTALLATION DIAGRAMS Backbone 250 Vista Plus Door Panel FA-PLUS/C rev.938072 EL500/R5 230 110 0 CV1 +12 Main FA-PLUS/C R5-BUS rev.938072 GND MP VP Vout+ Vout- CD-PLUS/R5 230 110 0 R5-BUS VCE GND Vin GND Vout Main Backbone 0 M =Master. S =Slave.
  • Page 12 INSTALLATION DIAGRAMS ackbone encoder mode (coded panel) with D4L-R5 distributor. Tekna R5 Tekna R5 RCTK RCTK R. Line R. Line D4L-R5 VD1+ VD1- SALIDA VD4- VD4+ VD2+ VD2- ENTRADA VD3- Coded panel VD3+ Take off JP1 jumper of STADIO all the distributors except in the last one.
  • Page 13 INSTALLATION DIAGRAMS ackbone encoder mode (coded panel) with D4L-R5R distributor. Tekna R5 Tekna R5 RCTK RCTK R. Line R. Line D4L-R5R Vout Coded Panel Junction Box Take off JP1 jumper of STADIO all the distributors except in the last one. M =Master.

  • Page 14: Backbone Encoder Mode (General Door Panels)

    TROUBLESHOOTING HINTS Porter's exchange interface mode The porter's exchange don't receive calls from the door panel. Check if it can receive calls from any other monitor (pressing the lock release button, with the handset off the hook) If so, check in the porter´s exchange configuration that the option capture door panel is activated and that the door panel has dip switch number 6 set to ON If not, check that the porter´s exchange is not off, see On-Off light indicator.

  • Page 15: Troubleshooting Hints
