- Page 1 Cód. 50121239 Protocol converter CD-V2PLUS/TP Instructions manual TCD-V2PLUS/TP ML rev.0112...
-
Page 2: Table Of Contents
Do always follow the enclosed information When starting the equipment for the first time, or after a modification, the system will remain inactive for around 45 seconds due to the initial busy channel time Use Golmar RAP-2150 cable in the... -
Page 3: Safety Precautions
16 risers (being necessary the use of multiplexers MC-V2Plus connected in daisy chain) or 250 apartments with coded panel (it also needs CD-V2PLUS/TP converter). Simple configuration through easy access dip switches. Autodiagnostic LEDS that allow detecting installation and/or programming errors. - Page 4 Riser 1 FA-V2PLUS MC-V2PLUS MC-V2PLUS Next Next Riser Riser P LU P LU FA-V2PLUS FA-V2PLUS CD-V2PLUS/TP CD-V2PLUS/TP 3 + TP To the rest of the Backbones FA-V2PLUS FA-V2PLUS 3 + TP Porter’s exchange General Plus door panel General Plus door panel Central de conserjería...
-
Page 5: Description

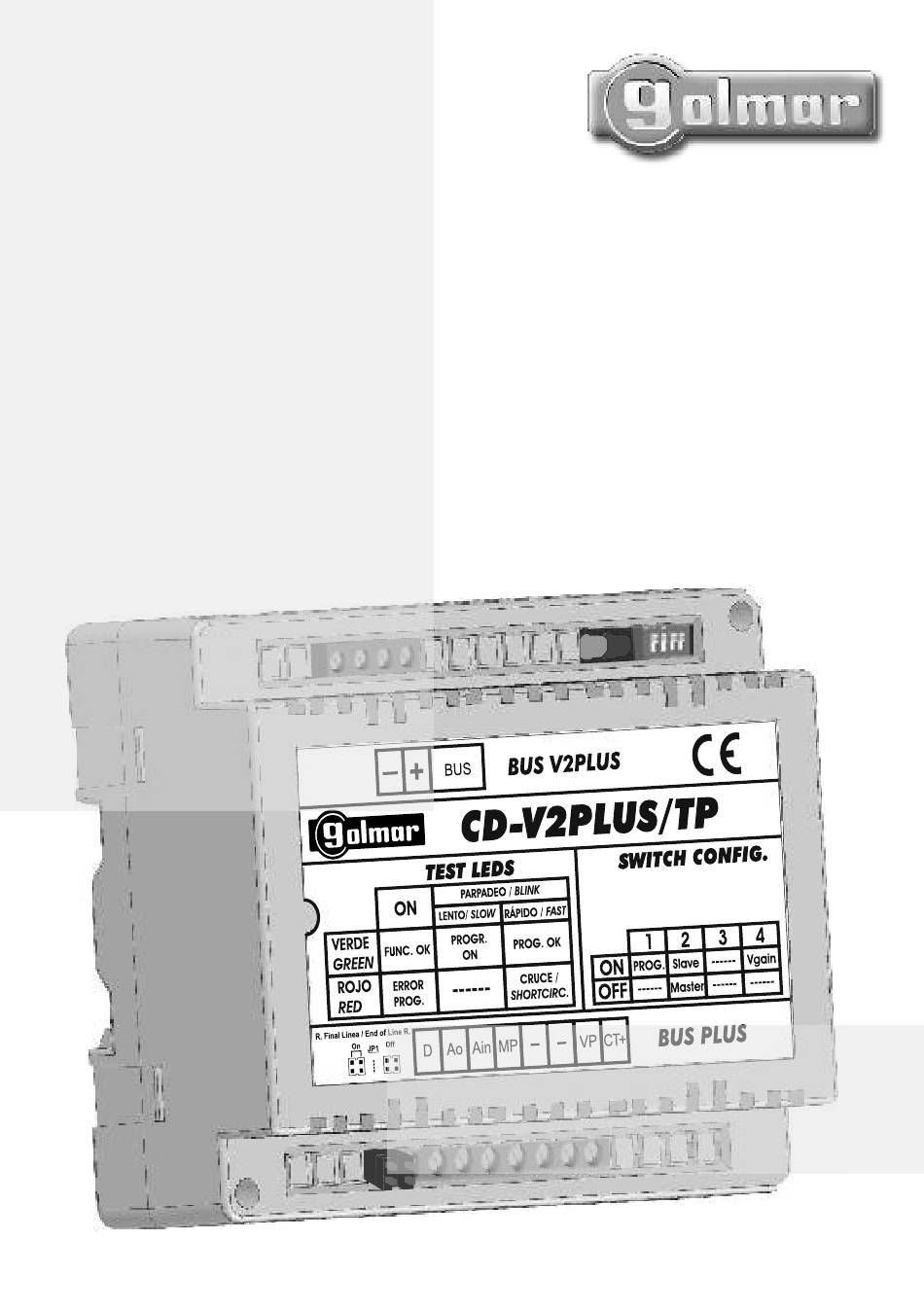

DESCRIPTION escription of the converter. DIN rail latch release Autodiagnostic LEDs Configuration dip switch V2Plus Bus connection block Label End of line configuration jumper Plus Bus connection block (TP video) INSTALLATION etail of the converter installation. Install the converter in a dry and protected place free from the risk of drip or water projections. To avoid damage the converter must be firmly fixed. - Page 6 CONFIGURATION escription of the configuration dip switch. The SW1 configuration dip switch is located on the upper right part of the module . Set to ON to programme the backbone (see page 35). Once the programming has finished, return the switch to the OFF position. Set to OFF in installations backbone encoder type (coded door panel) or (general door panels without V2Plus inner door panel), to configure the converter as Master, (see page 35).
-
Page 7: Autodiagnostic Leds
AUTODIAGNOSTIC LEDS escription of autodiagnostic LEDs. The autodiagnostic LEDs are placed next to the configuration dip switch . Green Led Fixed: Correct operation. Slow blinking: Programming active (SW1-1 to ON). Quick blinking: Programming finished. Red Led If the short circuit is eliminated before 2 minutes (approx.), the converter will Fixed: Programming error. -
Page 8: Replacement
REPLACEMENT The Golmar V2PLUS video door entry system is a digital system with simplified installation (2 wire bus without polarity), designed to new installations and to replace existing audio door entry systems in both apartment blocks and villas. In installation for replacement it is necessary a detailed study of the existing installation before installing the system. -
Page 9: Installation Of Replacement
- Maximum distance between multiplexer in daisy chain and the last monitor B/W:100m. ( ) 1 Golmar has a special cable for this system, its reference number is RAP-2150. The use of this cable ensures the correct functioning of the system and simplifies the riser replacement given that it contains all the necessary wires for the installation. - Page 10 1 par UTP Cat 5 0,18mm. 35m. 15m. 25m. 26m. 16m. 2 par UTP Cat 5 0,18x2= 0,36mm. 10m. 70m. 15m. 50m. 52m. 33m. 4 par UTP Cat 5 0,18x4= 0,72mm. 25m. 100m. 15m. 100m. 75m. 67m. Use Golmar RAP-2150 cable, for new installations.
-
Page 11: Installation Diagrams
