INSTALL POWER MODULE
• With the lamp cordage facing away
from the mounting surface, use the long
mounting screws and install the power
module in a suitable location inside the
control panel of the air handler using
two self-drilling screws (included).
NOTE: DO NOT OVERTIGHTEN
SCREWS.
• Connect the power module to constant
24V power.
• Connect input 24V power cord. Align
markers on power module with power
cord connector.
INSTALL POWER MODULE
• With the lamp directly connected to
the power module, connect the power
module to the mounting surface using
the short, self drilling screws (included).
• Connect the power module to constant
24V power.
• Connect input 24V power cord. Align
markers on power module with power
cord connector.
The device must be installed in compliance with all national and local electrical and
mechanical codes. Failure to do so will void warranty.
WARNING
Electric Shock Hazard.
Can cause injury or death.
Disconnect all electrical power
supplies before servicing.
(Remote Lamp)
(Direct Connect™)

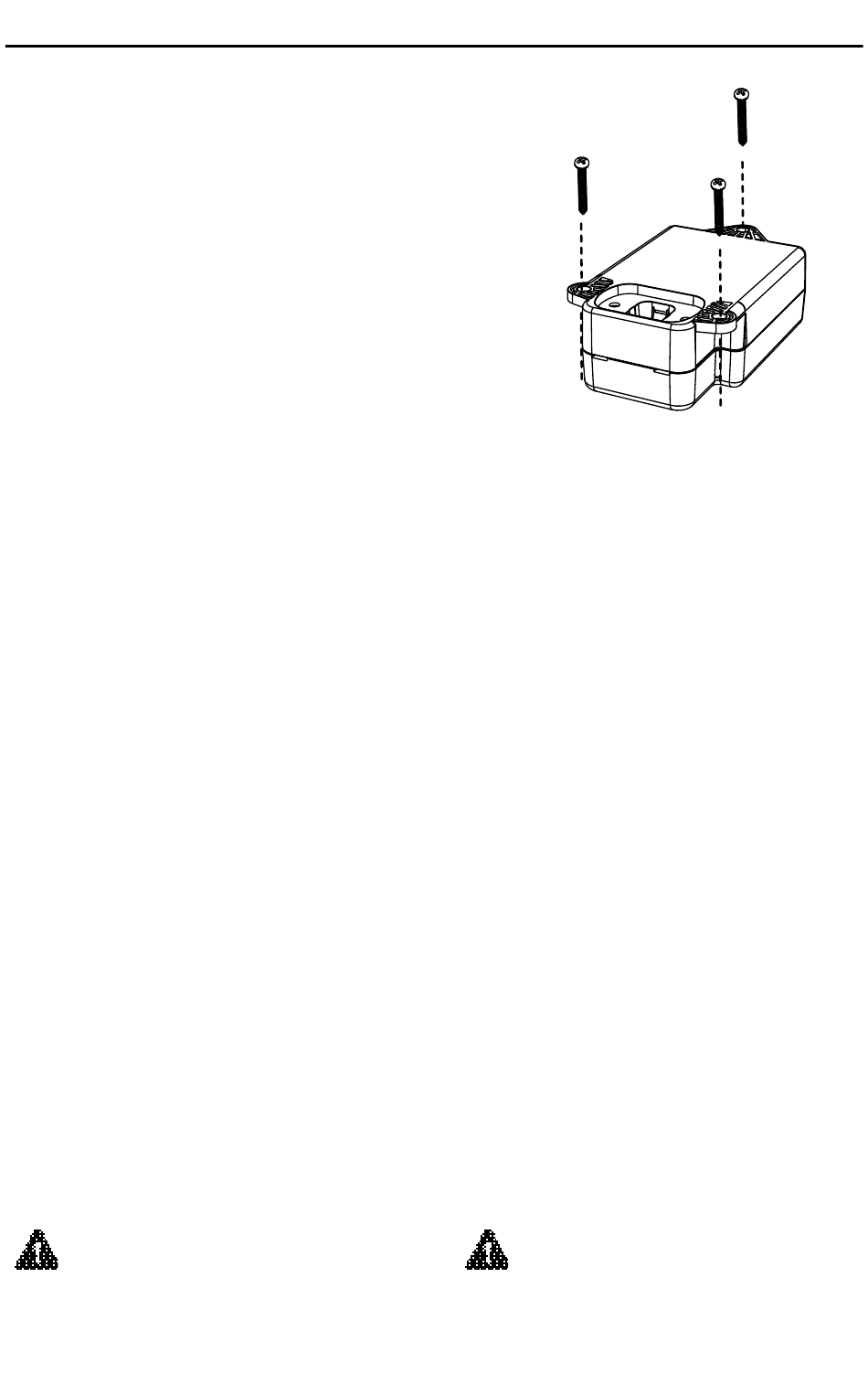

Fig. 5A Flip power module over and secure with
long screws. Do not overtighten.
WARNING
For Use with 24V Only..
Do not exceed voltage rating.
Severe damage to device and/or fire
could result. Verify proper voltage.
