GENERAL
This product emits germicidal ultraviolet
(UV-C) light to help disinfect the cooling
coil, drain pan, and internal surfaces of
HVAC systems for improved indoor air
quality.
BEFORE INSTALLING
• Read all instructions carefully. Failure
to do so could damage the equipment
or cause harm to yourself or others.
• Acknowledge all warnings.
• Only qualified technicians should per-
form the installation.
by

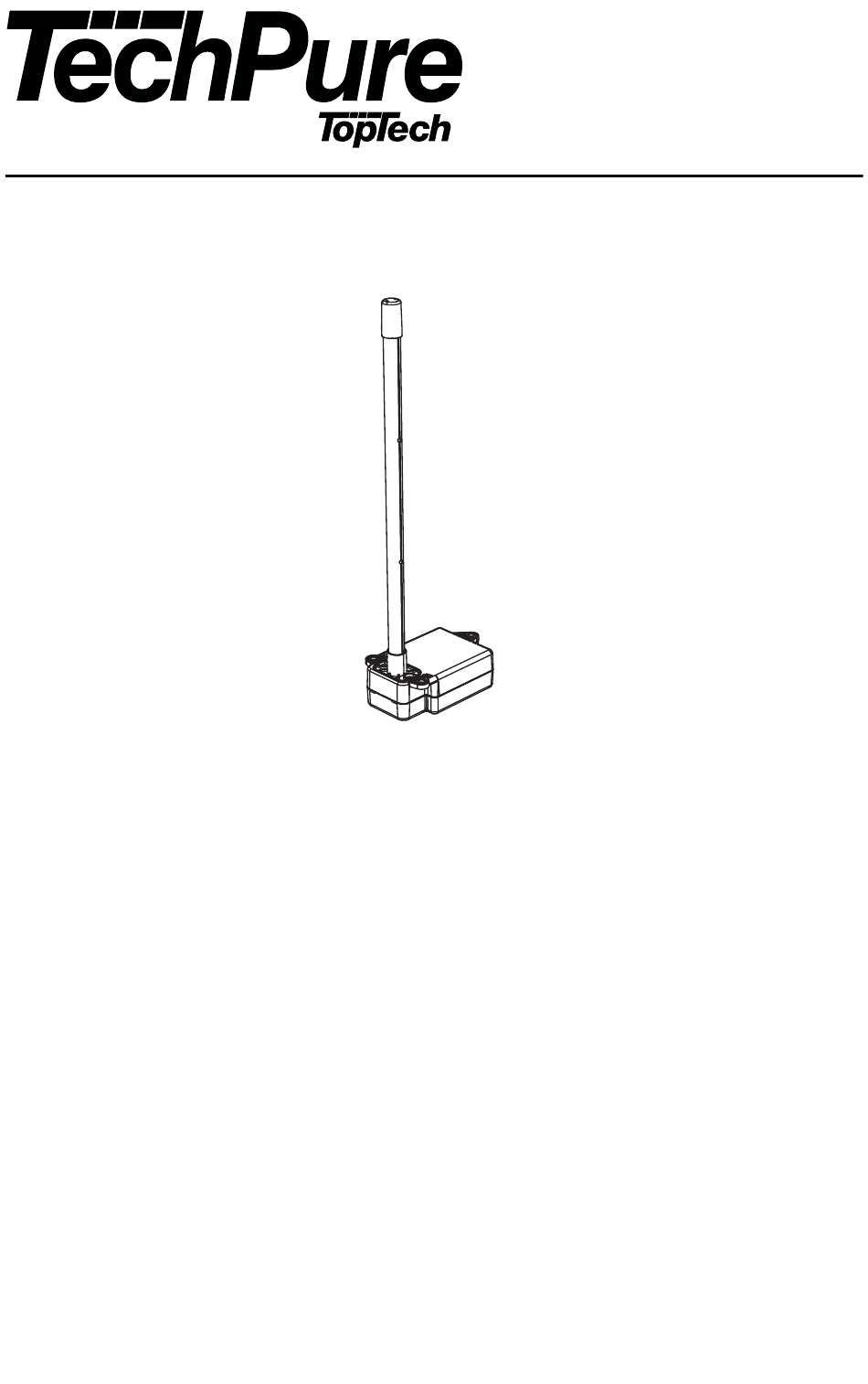

Installation & Operation Manual
This manual covers the following model:

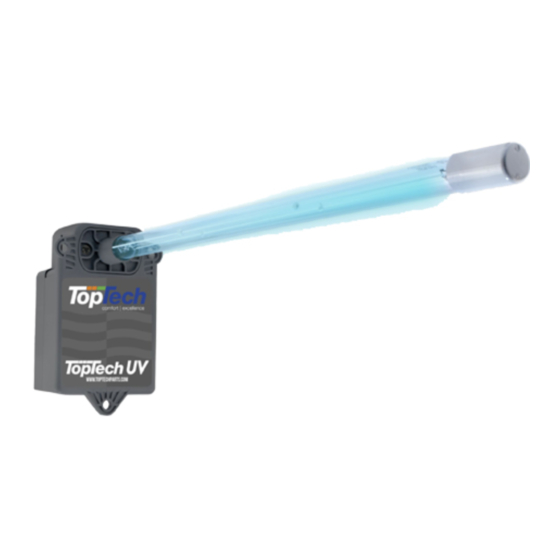

TechPure UV #TT-UV24-15
GERMICIDAL
UV SYSTEM
INCLUDED INSIDE BOX
• Power Module
• Germicidal UV lamp
• Power cord
• Remote lamp cord
• Magnetic Mounting bracket
• Filter shield
• Self-drilling screws
• UV safety viewport
• UV safety label
• Installation & operation manual
• Installation hardware
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for TechPure TT-UV24-15
- Page 1 GERMICIDAL UV SYSTEM Installation & Operation Manual This manual covers the following model: TechPure UV #TT-UV24-15 GENERAL INCLUDED INSIDE BOX This product emits germicidal ultraviolet • Power Module (UV-C) light to help disinfect the cooling • Germicidal UV lamp coil, drain pan, and internal surfaces of •...
-
Page 2: Specifications
TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL SPECIFICATIONS 3.35” 3.16” 4.75” Dimensions: Power Module: 5”L x 3.25”W x 2”H Bracket: 3.5”L x 2.25”W x 3.5”H Electrical: 24V (Expanded range ballast: 20V-32V), 50/60Hz, 1.4A. 3000V surge protection. 3-ft power cord. 4-ft lamp cord Lamp Length: 15”... - Page 3 TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL UV INSTALLATION NOTES This device is meant only to be installed in the duct portion of the HVAC system. If the UV device is installed on the inlet side (return air side) of a coil, make sure that the...
- Page 4 TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL W-COIL / ABOVE A-COIL INSTALLATION (Remote Lamp) • Disconnect power to the air handler and open access panels. • Magnetic Bracket Installation - Slit insulation on the back or side wall of air handler and attach magnetic bracket to the wall.
- Page 5 TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL A-COIL DELTA PLATE INSTALLATION (Direct Connect™) • Drill a 7/8” hole in the outer sheet metal where the lamp will be centered on the return side of the coil. See diagram.
- Page 6 TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL INSTALL POWER MODULE (Remote Lamp) • With the lamp cordage facing away from the mounting surface, use the long mounting screws and install the power module in a suitable location inside the control panel of the air handler using two self-drilling screws (included).
- Page 7 TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL 24V INSTALLATION NOTES Installing the 24V UV fixture may require an upgrade to the 24V transformer in the furnace, or air handler, depending upon the capacity of the OE specified by the manufacturer of the AHU / furnace.
- Page 8 TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL INSTALL UV SAFETY VIEWPORT • Adhere the provided UV safety label to the outside of the duct near the installation location and drill a 5/8” hole as indicated on the label. Press the UV safety viewport into hole.
-
Page 9: Warranty
TECHPURE 24V GERMICIDAL UV SYSTEM INSTALLATION & OPERATION MANUAL WARRANTY TECHPURE 24V GERMICIDAL UV SYSTEM How to make a warranty claim or have questions LIMITED WARRANTY answered: Should you have a warranty claim or questions TopTech warrants this UV-C Light to be free from...
