Graco 25A931 Operation Manual

Compressor kit for toughtek f340e fireproofing pump
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Installation
Compressor Kit for ToughTek
F340e Fireproofing Pump
For the installation of a compressor to ToughTek F340e fireproofing systems.
For professional use only.
Kit 25A930 - 120 VAC Compressor Kit
Kit 25A931 - 240 VAC Compressor Kit
Important Safety Instructions
Read all warnings and instructions in the F340e
Operation manual. Save these instructions.

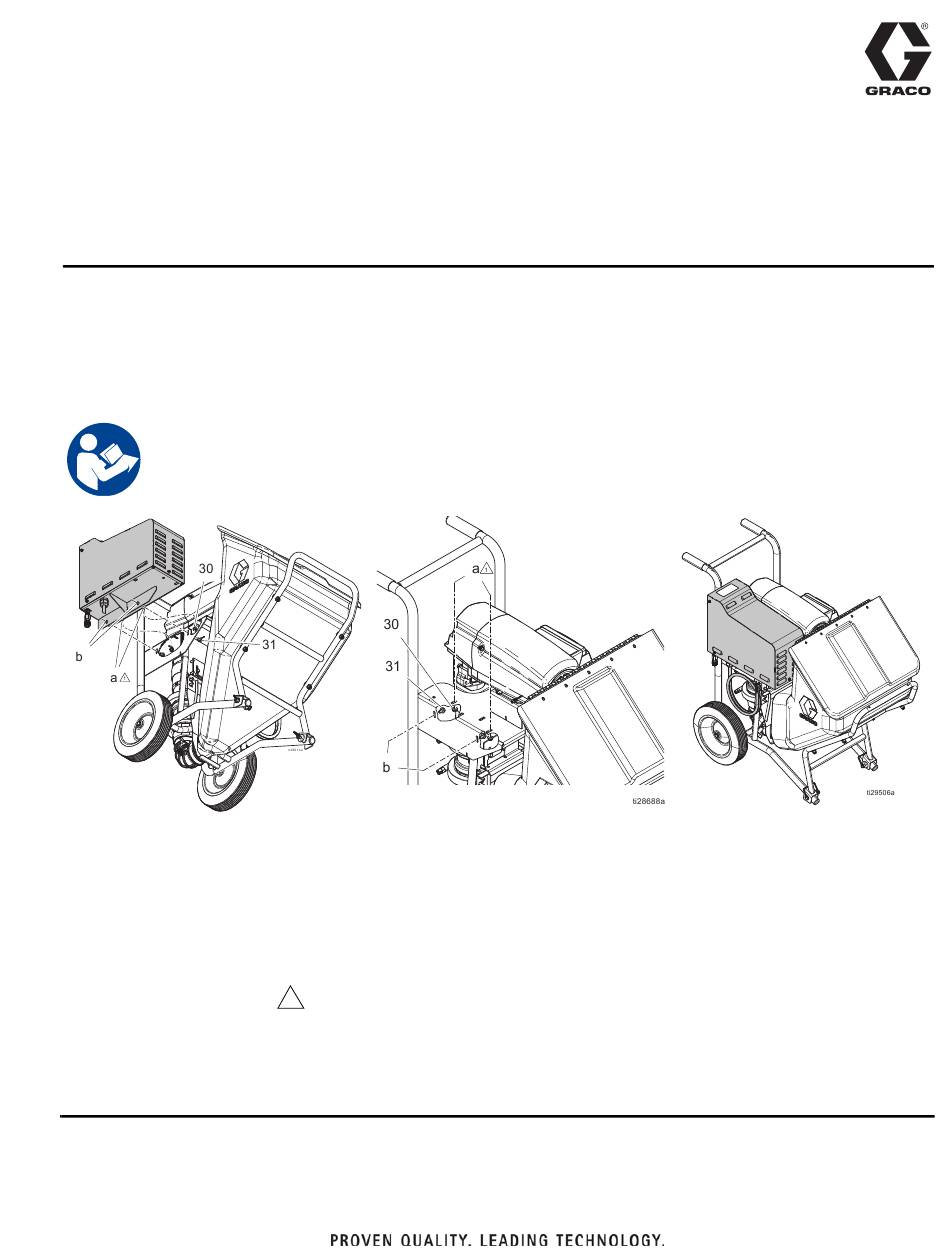

Installation:
1. Remove and discard the toolbox and toolbox mounting bracket.
2. Install two screws (31) into holes (b).
3. Install two nuts (30) onto studs (a).
Tighten all fasteners one full turn past hand tight.
1
™
3A3998C
EN

Advertisement

loading

Related Manuals for Graco 25A931

Summary of Contents for Graco 25A931

  • Page 1 For the installation of a compressor to ToughTek F340e fireproofing systems. For professional use only. Kit 25A930 - 120 VAC Compressor Kit Kit 25A931 - 240 VAC Compressor Kit Important Safety Instructions Read all warnings and instructions in the F340e Operation manual.
  • Page 2 Models Models Models 25A930 100-120 VAC 25A931 230-240 VAC Max Pressure: 55 psi (3.7 bar, 0.37 MPa) Max Pressure: 55 psi (3.7 bar, 0.37 MPa) Max Flow: 5 cfm Max Flow: 5 cfm Current Draw: 15 Amps Current Draw: 8.5 Amps Compressor and Motor Repair For 120 V sprayer, use Compressor and Motor Replacement Kit 287315.
  • Page 3 Models Reassembly 5. Remove two fasteners and washers. 1. Install the motor into the assembly. 2. Install the washers and fasteners on both sides of the motor. ti4463a 6. Remove fasteners and washers on the other side of the motor. 3.

  • Page 4: Compressor Rebuild Kit

    Compressor Rebuild Kit Compressor Rebuild Kit To replace the piston, seals and sleeve. 4. Loosen the four bolts on top of the motor housing. For 120 V sprayer, use Compressor Rebuild Kit 287330. For 230 V sprayer, use Compressor Rebuild Kit 287331. Disassembly 1.
  • Page 5 Compressor Rebuild Kit Reassembly 3. Replace the top motor housing and four bolts. Tighten the four bolts. 1. Insert the new piston rod in the motor housing. ti4703a ti4700a 4. Replace the motor fan and center the fan bolt. Tighten the fan bolt. 2.

  • Page 6: Parts List

    Original instructions. This manual contains English. MM 3A3998 Graco Headquarters: Minneapolis International Offices: Belgium, China, Japan, Korea GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA Copyright 2016, Graco Inc. All Graco manufacturing locations are registered to ISO 9001. www.graco.com...

This manual is also suitable for:

25a930
