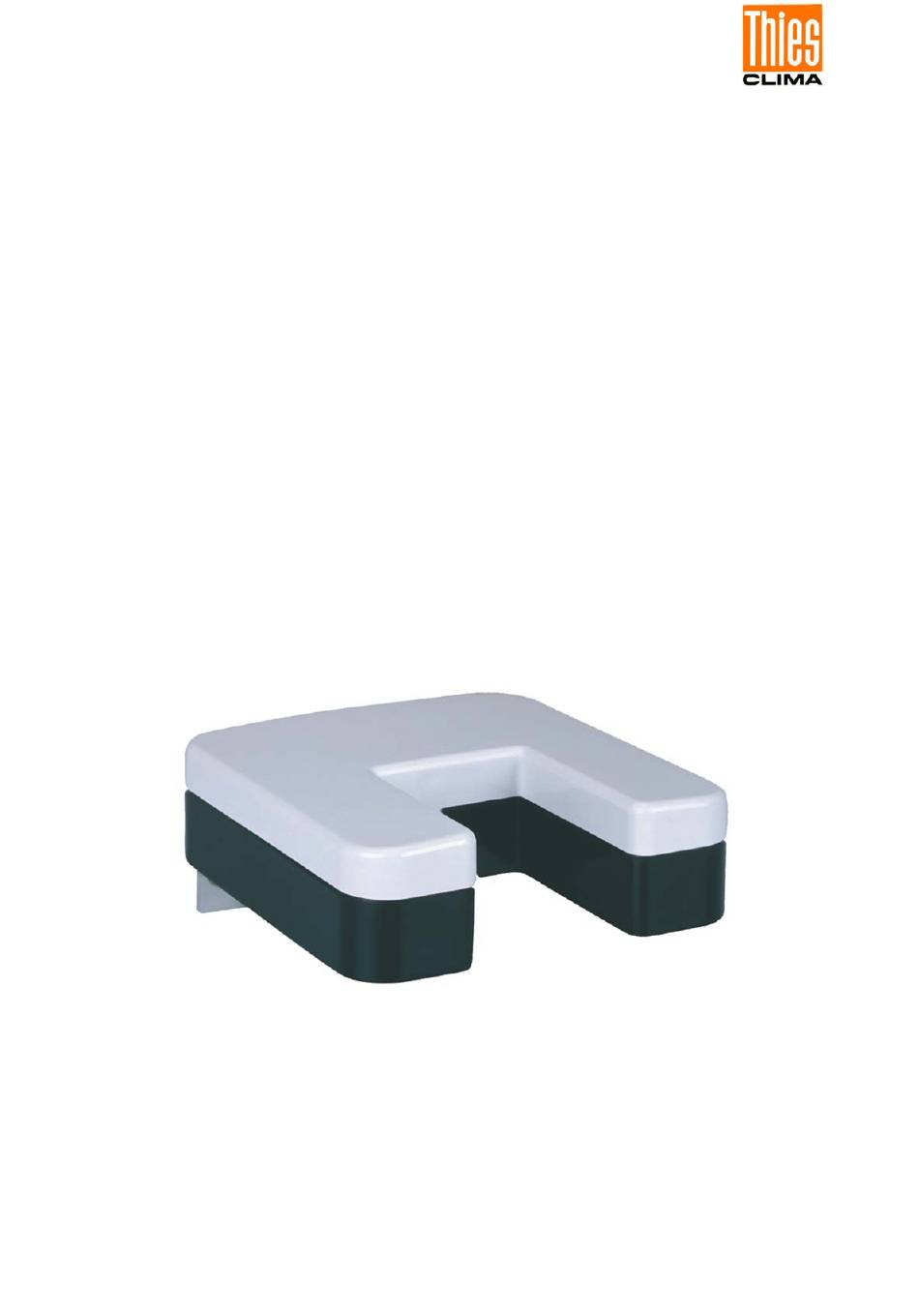

- Page 1 Precipition Sensor Instruction for Use with analogue Intensity Output 5.4103.20.041, 5.4103.20.641, 5.4103.20.741 Dok. No. 021335/05/18 T H E W O R L D O F W E A T H E R D A T A...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...
-
Page 3: Table Of Contents
Contents Models available ........................4 Application .........................4 Construction and Mode of Operation ..................4 Recommendation Side Selection/Standard Installation ............5 Installation ..........................6 Mechanical Mounting ....................6 Electrical Mounting for Precipitation Sensor with Cable Gland ........6 Electrical Mounting for Precipitation Sensor with Plug Connection ......7 5.3.1 Plug Mounting .......................7 Taking into Operation ......................7... -
Page 4: Models Available
>0° by means of a regulated heating. At the end of the precipitation the analogue output goes in one time of 180 sec. (5.4103.20.041, 5.4103.20.741) or 50 sec. (5.4103.20.641) to 0 mA. If the precipitation starts, the analog output rises again to the measured value. -
Page 5: Recommendation Side Selection/Standard Installation
4 Recommendation Side Selection/Standard Installation Order-No. Clamp connection 5.4103.20.041 5.4103.20.641 Order-No. Plug connection 5.4103.20.741 View on the soldering side of the counter plug. © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021335/05/18 Phone +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com... -
Page 6: Installation
The pictured tube is not included in delivery. 5.2 Electrical Mounting for Precipitation Sensor with Cable Gland For: 5.4103.20.041, 5.4103.20.641 see circuit diagram in chapter 5 Process: Remove 5 screws at the bottom side of the precipitation monitor. -
Page 7: Electrical Mounting For Precipitation Sensor With Plug Connection
5.3 Electrical Mounting for Precipitation Sensor with Plug Connection For: 5.4103.20.741, see circuit diagram in chapter 5 5.3.1 Plug Mounting Applies only to instruments with connection „plug“. Coupling socket, Typ:Binder, Serial 423, EMC with cable clamp Cable connection: without cable shield 1. -
Page 8: Technical Data
8 Technical Data Measuring Value Precipitation intensity (mm / min) Output Constant current, depending on measuring value, between 4.0 mA and 20.0 mA Measuring range, Output, Measuring range Output Function Transfer function Segment 1 0 …..0.01 mm / min = 4.0 ….. 8.0 mA 0,0025 *x -0,01 Segment 2 0.01 …0.1 mm / min = 8.0 …... -
Page 9: Dimension Diagram
9 Dimension diagram 5.4103.20.041 5.4103.20.641 5.4103.20.741 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021335/05/18 Phone +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Page 9 of 12... -
Page 10: Accessories (Optional)
10 Accessories (Optional) Power Supply Unit 9.3388.00.002 The power supply unit provides for the current supply of the Precipitation Sensor. It supplies the necessary operation voltage for the electronics and the heating. Primary : 230 V / 50 Hz Secondary : 24 V AC / 25VA Housing : synthetic... -
Page 11: Ec-Declaration Of Conformity
Info@ThiesClima.com This declaration of conformity is issued under the sole responsibility of the manufacturer Description of Product: Precipitation Transmitter Article No. 5.4103.10.000 5.4103.10.012 5.4103.10.112 5.4103.10.700 5.4103.11.000 5.4103.20.041 5.4103.20.641 5.4103.20.741 5.4103.21.021 5.4103.30.000 5.4103.30.700 5.4103.31.000 5.4103.32.000 specified technical data in the document: 021196/04/16;... - Page 12 Please contact us for your system requirements. We advise you gladly. ADOLF THIES GMBH & CO. KG Meteorology and environmental metrology Hauptstraße 76 · 37083 Göttingen · Germany Phone +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021335/05/18 Phone +49 551 79001-0 ·...
