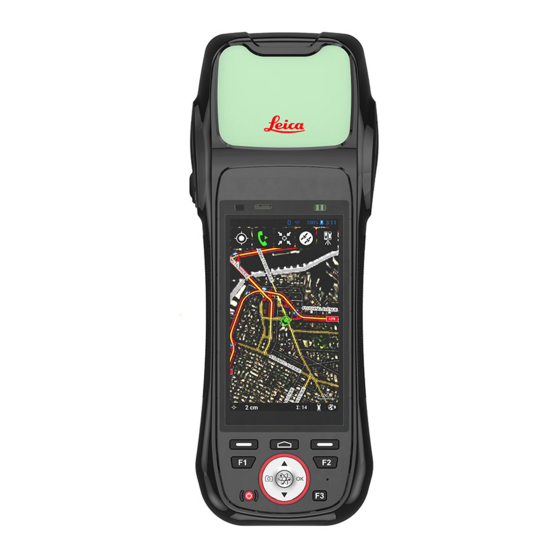

- Page 1 Zeno Mobile Quick Guide Version 1.0 English...
- Page 2 Starting Zeno Step Description Mobile To start Zeno Mobile tap the Zeno Mobile App icon Zeno Mobile starts in the Projects overview. When you start Zeno Mobile for the first time you will only find a default project called "Project 1"...
- Page 3 Zeno Mobile Components a) Zeno Mobile Toolbar buttons b) Zeno Mobile Notification Area: slide upwards to open the Zeno Mobile Notification Drawer c) Slide towards the middle to open the Zeno Mobile Navigation Slider d) Map View Zeno Mobile Quick Start Manual...
- Page 4 Press the Home button to return to the Home screen. Press the Open Apps button on the right to get a list of all open Apps. The Zeno Mobile Tap the Zeno Mobile toolbar buttons to perform central tasks like: Toolbars Take a Measurement...
- Page 5 The Zeno Mobile The Zeno Mobile Notification Area at the bottom displays GNSS information: Notification Area a) GNSS solution type b) Estimated position accuracy c) Satellites in use d) Antenna in use e) RTK connection type When a notification comes in the status symbols are replaced for a few seconds with the notification text.
- Page 6 Location access page. Tap the switcher and slide it right- wards to switch GNSS ON. By default, GNSS is off to save battery. Tap the Back button at the bottom to return to the Zeno Mobile Map View.
- Page 7 Name field and type "Tree". The System Name will be written auto- matically, but can be changed if necessary. Leave the Geometry Type ("Point") as is. Tap OK to close the dialog and create the new feature layer. Zeno Mobile Quick Start Manual...
- Page 8 Zeno Mobile Quick Start Manual Step Description In the Map View the Feature Tag pops up. The feature tag shows you: a) the feature layer of the meas- urement that you have just taken, in this case "Tree" b) the symbology that is currently used for the feature layer "Tree"...
- Page 9 Step Description If you have acquired a Zeno Mobile Professional license you can collect more than one feature on a single measurement (Multi- Collect) by tapping the icon in the feature tag. For further details on Multi-Collect please refer to the Zeno Mobile Help menu.
- Page 10 Zeno Mobile Quick Start Manual How to edit Step Description attributes? Tap the feature tag to open the Wheel Menu. In the Wheel Menu tap Edit Attrib- utes.
- Page 11 In the Edit Attributes dialog tap the in the upper right corner to add an attribute. For "Trees" you will most likely define attributes of Data Type "Text" and/or "Number" so that you can specify their species, height and/or diam- eter. Zeno Mobile Quick Start Manual...
- Page 12 Zeno Mobile Quick Start Manual How to measure a Let us assume that after you have measured a series of trees along a street you want line/polygon? to measure the street. The street is a line feature. Step Description Move to the first point on the street and tap the toolbar button.
- Page 13 Step Description Tap the feature tag to open the Wheel Menu. In the Wheel Menu tap Not Tree? Zeno Mobile Quick Start Manual...
- Page 14 Zeno Mobile Quick Start Manual Step Description The Change To ... dialog pops up. Tap the in the upper right corner to define the new street feature layer.
- Page 15 Tap the Name field and type, for example, "Street". Tap the System Name field and select "Polyline" from the choice list. Tap OK to create the feature layer "Street". It will automatically be selected for use. Zeno Mobile Quick Start Manual...
- Page 16 "Street" until you arrive at the final point. To complete the "Street" tap Finalize Feature in the Wheel Menu. For details on how to pause and resume features please refer to the Zeno Mobile Help menu.
- Page 17 RTK profile. You will be guided through a wizard. For selected countries a pre- defined SmartNet profile is available. For details on the wizard please refer to the Zeno Mobile Help menu. Zeno Mobile Quick Start Manual...
- Page 18 Description Tap the toolbar button to switch the gamtec mode on and off. Make sure that WiFi is switched off. Zeno Mobile will automatically set up a hotspot of its own. For details on how to proceed when you are already connected to...
- Page 19 Follow the steps by tapping WLAN and Select Network. In the Select Network page look for the Zeno Mobile hotspot and tap it to establish the connection. For details on how to connect your Disto S910 with Zeno Mobile refer to the Zeno Mobile Help menu.
- Page 20 Zeno Mobile Quick Start Manual Step Description On the Disto S910 the levelling wizard will start up automatically. Follow the steps as indicated on the instrument. Measure the reference target selected in step 4.) with the Disto S910.
- Page 21 Step Description In the Zeno Mobile Notification Area you will get the confirmation that the setup has been oriented successfully. The symbol that indicates the gamtec setup in the Map View turns from red to green Now you can start taking offset measurements. Disto S910 measurements are always triggered on the Disto S910 itself.
- Page 22 Zeno Mobile Quick Start Manual Available Comprehensive Help on Zeno Mobile functionality is available within the application. documentation To access the Zeno Mobile Help menu open the Zeno Mobile Navigation Slider and tap onto Help.
- Page 24 Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
