Summary of Contents for SoundFreaq SFQ-09

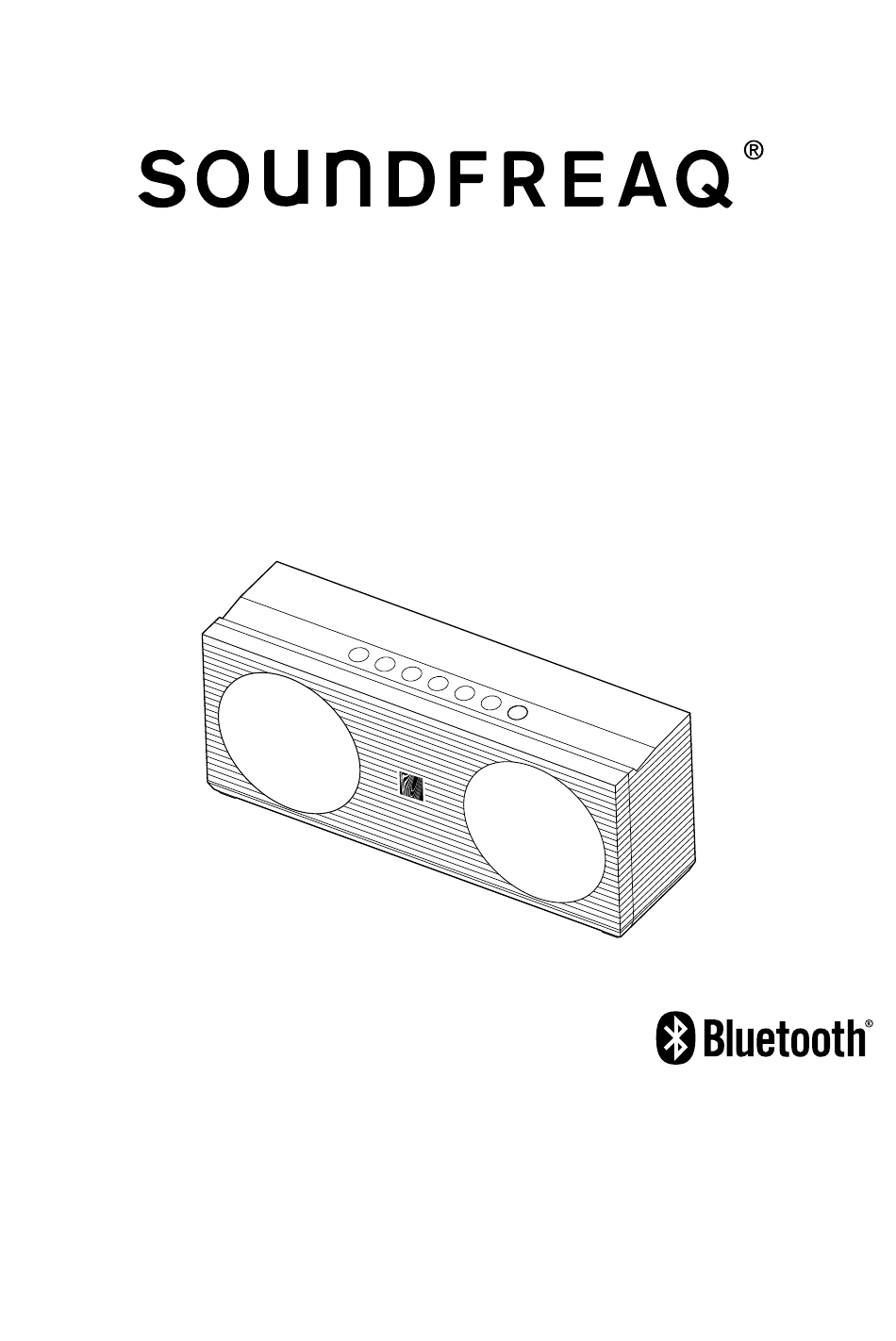

- Page 1 Double Spot SFQ-09 User Manual ...
- Page 2 Safety Information electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point The lightning flash with arrowhead symbol, where they exit from the apparatus. within an equilateral triangle is intended to alert the user to the presence of uninsulated Only use attachments/accessories "dangerous voltage"...
- Page 3 Do not place any naked flame sources, Reorient or relocate the receiving antenna. such as lighted candles, on the apparatus. Increase the separation between the equipment and receiver. The battery used in this product must be Connect the equipment into an outlet on a properly recycled or disposed of.
- Page 4 Information for Users on CAUTION - Proper Installation Disposal of Old Equipment Install the system in a place which is level, [European Union] dry and neither too hot nor too cold. The This symbol indicates that the appropriate temperature is between 5 electrical and electronic and 35 equipment should not be...
-
Page 5: Table Of Contents
Contents Getting Started .................... 6 Package Contents ..........................6 Connecting to the AC Power Adapter ..................... 6 Using the Battery Pack (Optional) ............. 7 Installing the Battery Pack ....................... 7 Charging the Battery Pack ....................... 7 ... -
Page 6: Getting Started
Getting Started Package Contents Examine whether the following package contents are all included: Main Unit AC Power Adapter Audio Cable Quick Start Guide Warranty Card Safety Card Quick Start Guide Safety Card Warranty Card Connecting to the AC Power Adapter WARNING! For optimal performance, use only the supplied AC power adapter. -
Page 7: Using The Battery Pack (Optional)
Using the Battery Pack (Optional) The system has been designed to equip with a separate battery pack (purchased separately) to give you portable power without using the AC power adapter. Installing the Battery Pack 1. Twist the screw clockwise from CLOSE to OPEN ( ), and push down to remove the battery cover ( ). -
Page 8: Checking Battery Power
Type: Li-Ion Battery Model No: LC18650 Rated Voltage: 7.4V Capacity: 1800mAh WARNING！ There is a danger of explosion if the battery is incorrectly replaced. Replace it only with the same or equivalent type. Do not expose it to excessive heat such as sunshine, fire, etc., where it would be exposed to high temperatures above 60°C. -
Page 9: System Overview
System Overview Top View 1. VOL– button Press to decrease the volume level. 2. VOL+ button Press to increase the volume level. 3. << (Previous/Rewind) button In Bluetooth mode, press to skip to the start of the current track or skip to previous track. -
Page 10: Rear View
8. DC IN jack Rear View Connect to AC power Adapter. 9. POWER OUT jack Charges your external USB devices. 10. AUX IN jack Inputs audio signals from an external device. switch Slide to activate or deactivate the UQ3 (High Definition Wide Stereo) sound effect. -
Page 11: Basic Operation
Basic Operation Activating the Power Saving Turning on/off the System Mode Press the button on the top to turn on the Press and hold PAIR button and the ► System. button together to disable or enable the Power Saving mode: ... -
Page 12: Selecting The Sound Source
Selecting the Sound Source This system enables you to access two sound sources – AUX IN and Bluetooth. If AUX IN jack has been inserted, the sound source will switch to AUX IN mode automatically. Remove the audio cable from the AUX IN jack, the sound source will switch to Bluetooth mode automatically. -
Page 13: Playing Back Via Bluetooth
Playing back via Bluetooth Establishing a Bluetooth Select the desired music and press Play Connection button on your device. The system automatically starts playing back the Notes: music. If your mobile phone supports A2DP, Before starting playback via Bluetooth, AVRCP profiles, its music will play make sure the AUX IN jack is not through the system. -
Page 14: Playing Back From Macbook Or Macbook Pro
6. Double click the Double Spot icon and Playing back from Macbook or the device connection screen will be Macbook Pro shown. 1. In the desktop screen, select the Open 7. Click the Connect button in the Music Bluetooth Preference. and Audio option. -
Page 15: Playing Back From External Source
Playing back from External Source You can enjoy the sound from an optional component such as a digital music player through the speakers of this system. Be sure to turn off the power of each component before making any connections. For details, refer to the instruction manual of the component to be connected. Connect an external device to the AUX IN jack on the back panel of the system using a stereo audio cable (supplied). -
Page 16: Charging An External Device
Charging an External Device The POWER OUT jack can be used to charge most devices that allow for USB charging (including many mobile phones, smart phones and wireless headsets). Connect one end of USB power cord to POWER OUT jack of the system, and the other end to your USB device. -
Page 17: Optimizing Sound Quality
Optimizing Sound Quality is proprietary technology that enhances stereo separation. To turn UQ3 on/off, slide the switch. Slide Tone switch to select a WARM, FLAT or BRIGHT tone for your listening preference. TIP: Sound Spot Stereo has been tuned to a balanced acoustic profile. You can use the EQ settings on your playback device to further customize the EQ balance to suit your personal preference. -
Page 18: Troubleshooting
Troubleshooting Check this list for a possible troubleshooting solution before calling for service. In These Cases Check the Following Points Power does not come on AC power adaptor is not inserted securely. Plug in securely. When using the battery pack, the battery power is too low. Charge the battery. -
Page 19: Technical Specifications
Technical Specifications Model SFQ-09 Type Double Spot Support Bluetooth Bluetooth 1.2, 2.0 and 2.1 compliant Support Profile A2DP, AVRCP Input Sensitivity AUX Input 1000mV Input Terminal External DC IN, AUX IN Power Source DC IN 12V/2.5A Dimensions (Approx.) 280mm (L) x 80mm (D) x 112mm (H) - Page 20 Save this manual ...
