4 Display Screens

When the device is powered up you can scroll through numerous display screens
by pressing the left and right buttons to show you things of interest
Table 1: Summary of CA3.1 Display Screens
Display #1, Main Screen
Display #2, Electrical Only
Display #3, Human Power
Display #4, Wh/km
Display #5, Human Stats
Display #6, % Regen
Display #7, Peak Stats
Display #8, Speed Stats
Display #9, Temp Stats
Display #10, Odometer
Display #11, Batt Info
Display #12, Diagnostics
Most of the essential information you would want while riding is on Display #1.

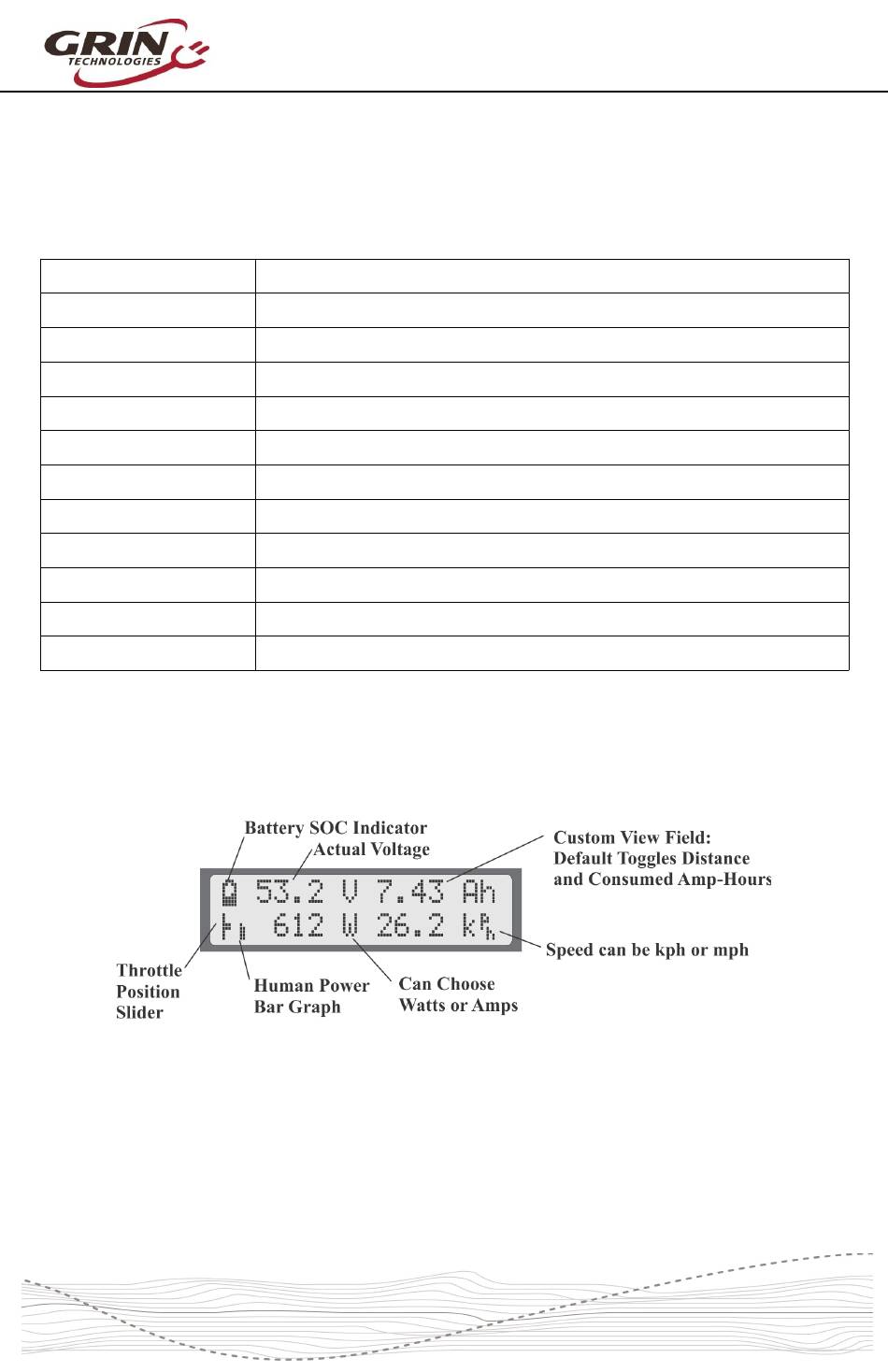

4.1 Main Display

The battery State Of Charge (SOC) icon on the top left is a graphical indication of
the charge level in your battery pack, inferred from a combination of the cell
chemistry, pack voltage, and amp-hour consumption. This gauge will only be
accurate if the battery type and series cell count has been set up correctly.
Next to that is the actual pack voltage. We recommend paying attention to your
battery voltage and becoming familiar with the value that it shows on a full
Cycle Analyst V3.1 User Manual
Summary of battery level, speed, power, voltage, distance etc.
View of just the battery voltage, current, power, and amp-hours
Shows pedal cadence and human power if torque sensor installed
Battery watt-hours and energy consumed per km or mile
Average human power, pedal cadence, and total human energy output
Shows regenerative amp-hours and % by which it has extended your range
Shows peak current, peak regen current, and battery voltage sag
Maximum and average trip speed and total trip time
Shows current, average, and maximum temperatures if sensor is attached
Shows both current trip distance and lifetime odometer
Charge cycle count, total kWh energy used, and Battery internal resistance
Live readout of throttle input/output voltages and active limiting flags
