Table 2: CA3.1 Setup Menu Organization
Setup Speedometer
Setup Battery
Setup Throttle Input
Setup Throttle Output
Setup Speed Limits
Setup Power Limits
Setup PAS Device
Setup PAS Configuration
Setup Temperature Sensor Configure motor Temperature Sensor type and max temperature limits
Setup Analog Aux Control
Setup Digital Aux Control
Setup Ebrake
Setup Calibration
Setup Presets
Setup Display Options
Setup Miscellaneous
Setup Lifetime Statistics

6.2 Setting the Speedometer

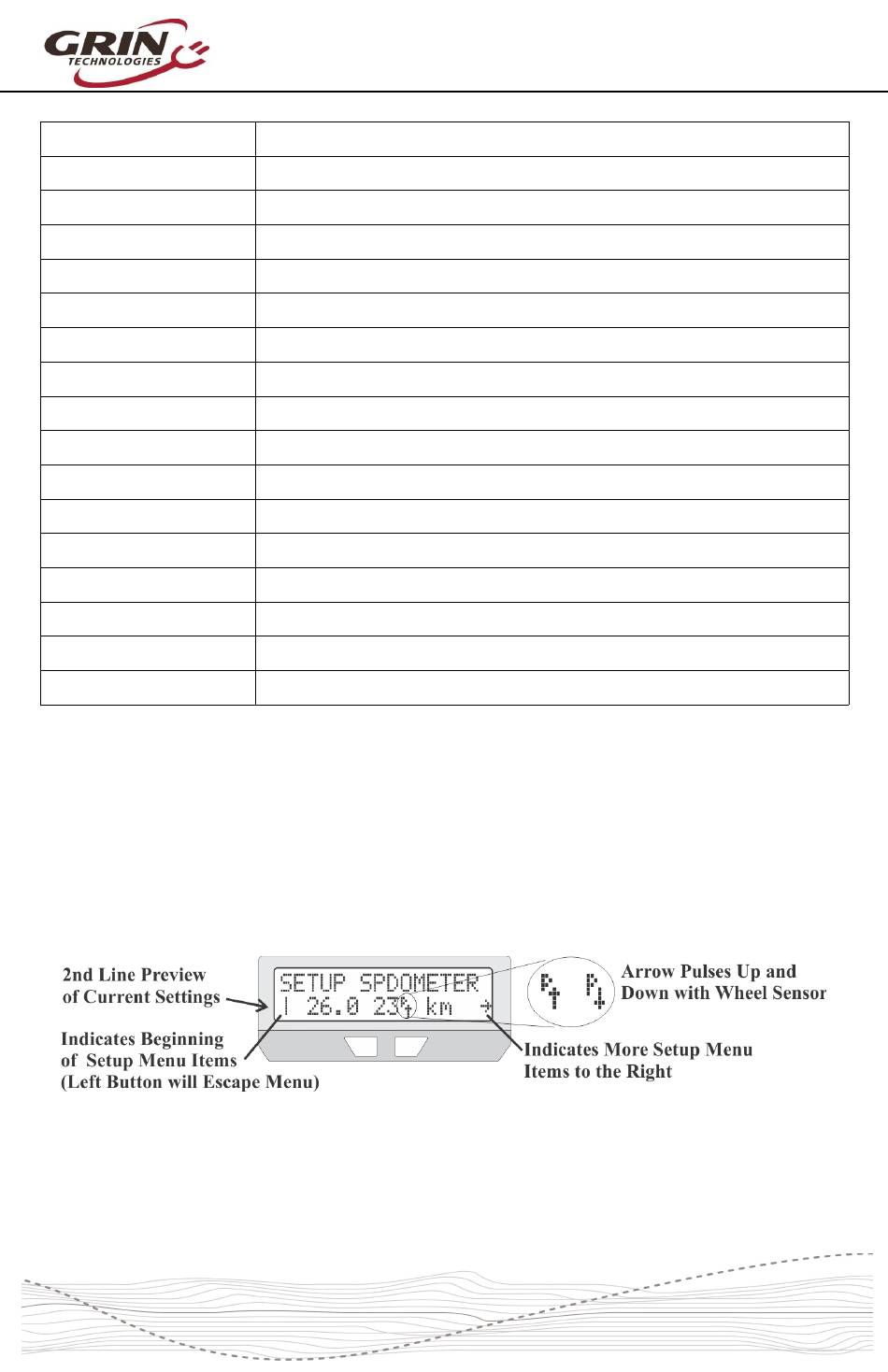

The first item in the setup menu is your speedometer configuration. The second
line of the setup menu shows a preview of the configured settings, including the
number of pulses per wheel revolution, the programmed wheel diameter, and
your preference of metric or imperial display.
What you may not notice on this preview line is the small wheel sensor arrow
beside the number of poles, which shows the signal going into the CA's
speedometer input. With a spoke magnet and sensor this arrow should switch
down whenever the magnet is right by the sensor. If you have a CA3-DP device
Cycle Analyst V3.1 User Manual
Configure Speedometer Sensor (wheel diameter, #poles, metric/imperial)
Configure Battery Details (chemistry, #cells, low voltage rollback etc)
Configure Input Throttle Mapping (min/max range, throttle mode, autocruise)
Configure CA's Output Throttle (min/max range, ramp limits, voltage/RC Pulse)
Set various Speed Limits and associated PID feedback parameters
Set maximum power and current limits, and feedback gain parameters
Set PAS or Torque Sensor parameters (#poles, fwd/rev direction, torque signal)
Configure how the CA responds to pedal RPM and torque input from rider
Setup behavior of potentiometer or 2/3 position switch for Limit Control
Setup behavior of 2-button up/down Digital Limit Control
Configuration of Brake Cutoff behavior and proportional regen
Calibration parameters for voltage scaling, zero offset, and Rshunt
Enable up to three Mode Presets for quick access to pre-configured limits
Customize Display behavior, hide screens, choose custom views
Other parameters like data log rate, display averaging, default saving
Total Lifetime charge cycles, kilowatt hours, and odometer distance
