All-Axle Installation Manual
Rev 0

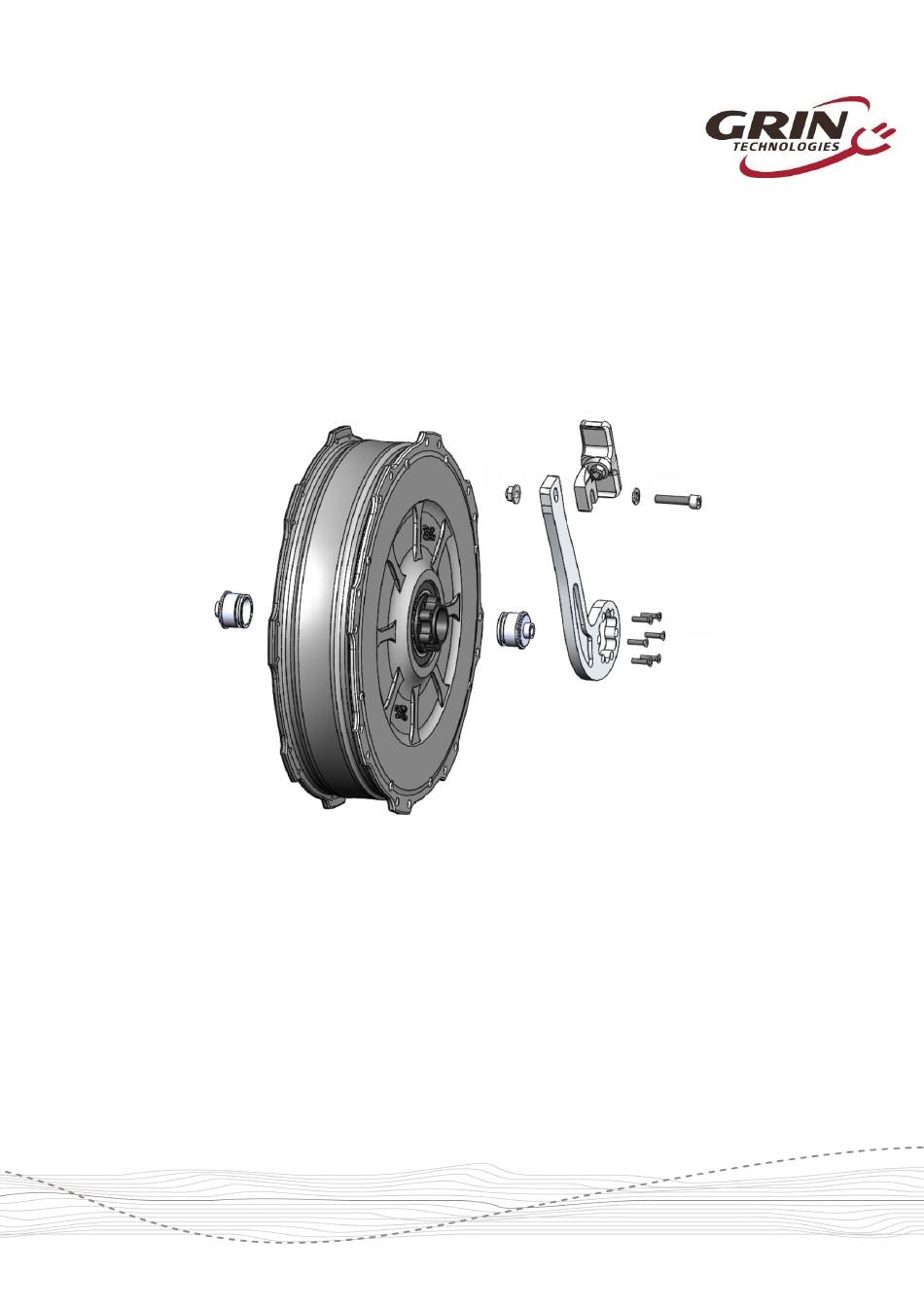

The Grin All-Axle Hub Motor
Installation Manual
For 9x100mm Quick Release, and 12x100mm, 15x100mm, 15x110mm, 15x150mm,
20x110mm Thru-Axle Adapters
Grin Technologies Ltd.
Vancouver, BC, Canada
ph: (604) 569-0902
email: info@ebikes.ca
web: www.ebikes.ca
Copyright © 2023
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the All-Axle Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Grin All-Axle Series

  • Page 1 All-Axle Installation Manual Rev 0 The Grin All-Axle Hub Motor Installation Manual For 9x100mm Quick Release, and 12x100mm, 15x100mm, 15x110mm, 15x150mm, 20x110mm Thru-Axle Adapters Grin Technologies Ltd. Vancouver, BC, Canada ph: (604) 569-0902 email: info@ebikes.ca web: www.ebikes.ca Copyright © 2023...
  • Page 2: Parts Included

    All-Axle Installation Manual Rev 0 1 Parts Included ● All-Axle Hub Motor ● Torque Arm ● Axle Adapter Set (9x100mm, 12x100mm, 15x100mm, 15x110mm, 15x150mm, 20x110mm) ● 6x M3 T20 Torx Bolts ● 6x M5x10mm Disc Rotor Bolts ● Frame Clamp ●...
  • Page 3 All-Axle Installation Manual Rev 0 Step 2: Insert the Axle Spacers Insert the axle spacers into the bore of the motor. Fig. 2: Range of axle inserts. Special install notes about 15x110mm, 15x150mm, and 12x110mm boost adapters in Appendix. Step 3: Install the Disc Brake (Optional) The All-Axle motor has a 6 bolt ISO standard disc mount.
  • Page 4 All-Axle Installation Manual Rev 0 The All-Axle provides 18.25mm of clearance between the disc rotor and side plate, which fits most calipers. Some caliper models are wider than this gap and will rub against the side plate. In that case, either swap to a different model caliper, or use a spacer under the disc to position it further out.
  • Page 5 All-Axle Installation Manual Rev 0 Step 4: Insert the Motor into the Forks Insert the motor into the forks with the torque arm roughly lined up and temporarily secure it with the quick release or thru-axle. If you have slotted dropouts, ensure the spacers are fully seated at the top of the fork slots before tightening.
  • Page 6 All-Axle Installation Manual Rev 0 With the torque arm attached, tighten the bracket nut to ~8Nm using the supplied socket. Note: No parts of the frame holder should move when the wheel is in operation. The connecting bolt must be tightened at the end of the installation, ensuring that the threads of the bolt fully...
  • Page 7: Additional Notes

    All-Axle Installation Manual Rev 0 4 Additional Notes ● The motor and torque arm must be mounted securely. There should be no motion or play in any of the components, especially in the torque arm or frame clamp. After assembly and after your first test ride you should check to ensure all components remain snug and secure.
  • Page 8 All-Axle Installation Manual Rev 0 Appendix 15x110 Boost Adapters For QR15x110mm boost adapters, use the provided torque arm spacer between the torque arm and frame clamp. Fig. 11: Use the torque arm spacer to align the torque arm spacer. 15x150 Fatbike Adapters If using 15x150mm adapters, use the included torque arm spacer between the hub and torque arm.
