Display

When power is first supplied to the appliance, everything on the
display will light up for 1 to 2 seconds, then a time of day and
"PF" will appear. Press OFF to clear "PF" from the display.
Any other time "PF" appears, a power failure occurred. Press
OFF and reset the clock if needed.
When the oven is in use, the display shows preheat time and the
temperature and oven setting.
When the oven is not in use, the display shows the time of day.
When using the TIMER, for settings of 1-59 minutes, the display
will count down in seconds. For settings 1 hour or over, the
display will count down hours and minutes.
When using COOK TIME, the display will show hours and
minutes. When using STOP TIME, the display will show minutes
and seconds.
After setting a function, you must press the START button to start
the function. If you do not press the START button within 5
seconds, "START?" will be displayed as a reminder.
The OFF button stops any function except the Clock, Timer and
Control Lock. When you press the OFF button, the display will
show the time of day, or the time remaining if the TIMER is being
used.

Clock

On some models, if you do not want the clock time to be
displayed, press and hold the CLOCK pad (button) for 5 seconds.
When the clock is not displayed, you can see the time for 5
seconds by pressing the CLOCK pad (button).

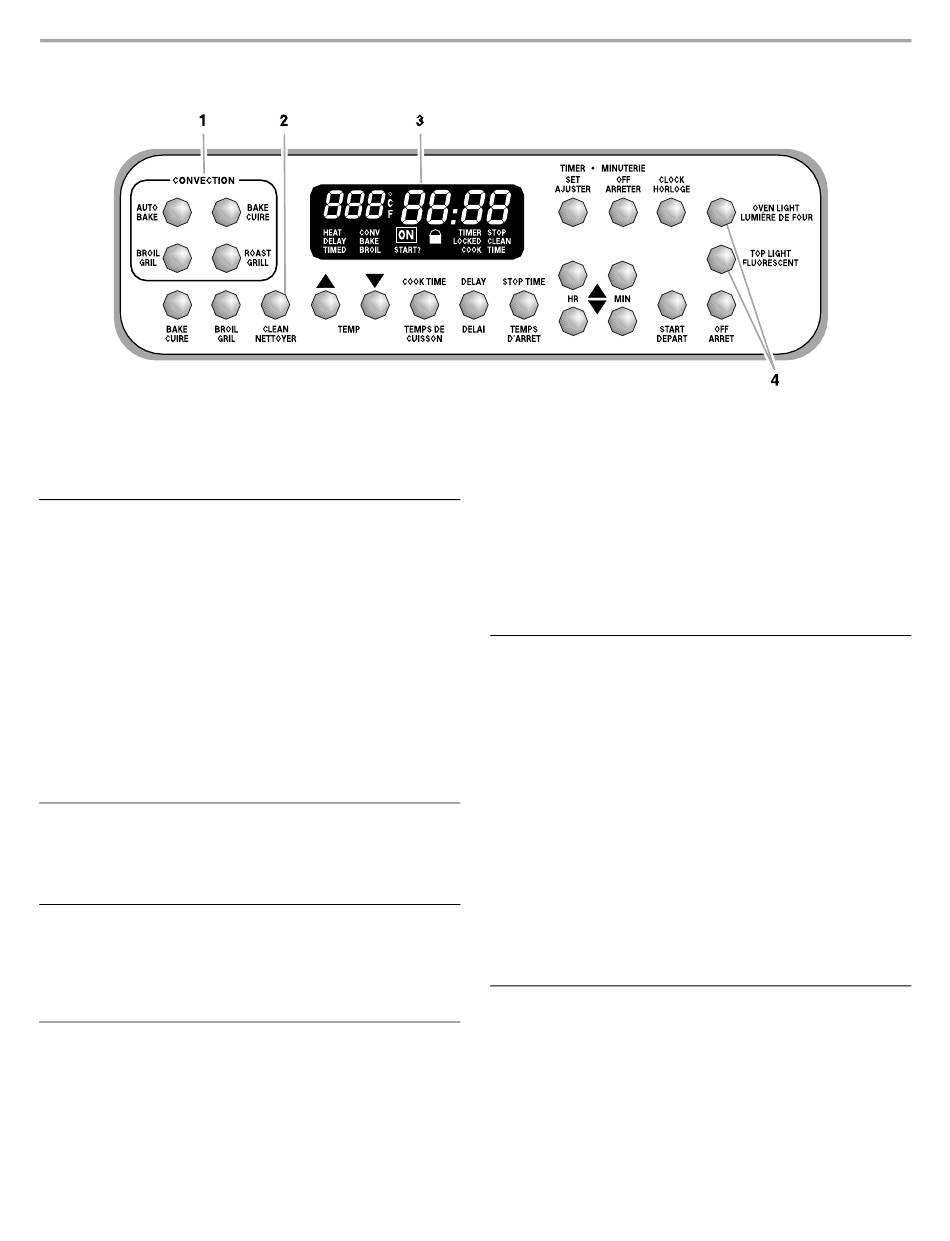

ELECTRONIC OVEN CONTROL

1. Convection Controls
(on convection models only)
2. Self-Clean Control
(on self-clean models only)

Start

Off

3. Electronic Display
4. Light Controls
(on some models)
To Set:
Before setting, make sure the oven, TIMER and COOK TIME are
off.
1. Press CLOCK.
2. Press the HR or MIN "up" or "down" arrow pads (buttons) to
set the time of day.
3. Press CLOCK or START.
Tones are audible signals that indicate if a function has been
entered correctly, or when a cycle has ended.
To shut off all tones except the end-of-timer and error

tones:

1. Press and hold the STOP TIME button for 5 seconds.
2. A short tone will sound when the tones have been changed.
To turn tones back on, repeat step 1.
3. "Off" will be displayed for 3 seconds when the tones have
been turned off, and "ON" will be displayed for 3 seconds
when the tones have been turned back on.
To choose between high and low volume tones:
1. Press and hold the DELAY button for 5 seconds.
2. A short tone will sound indicating the tones have been
changed.
3. Either "HI" or "Lo" will appear on the display for 3 seconds to
show the volume you have chosen.
The Timer can be set in hours or minutes up to 12 hours and 59
minutes, and counts down the set time. The Timer does not start
or stop the oven.
To Set:
1. Press TIMER SET.
If no action is taken after one minute, the display will return to
the time of day mode.
Tones

Timer

9
