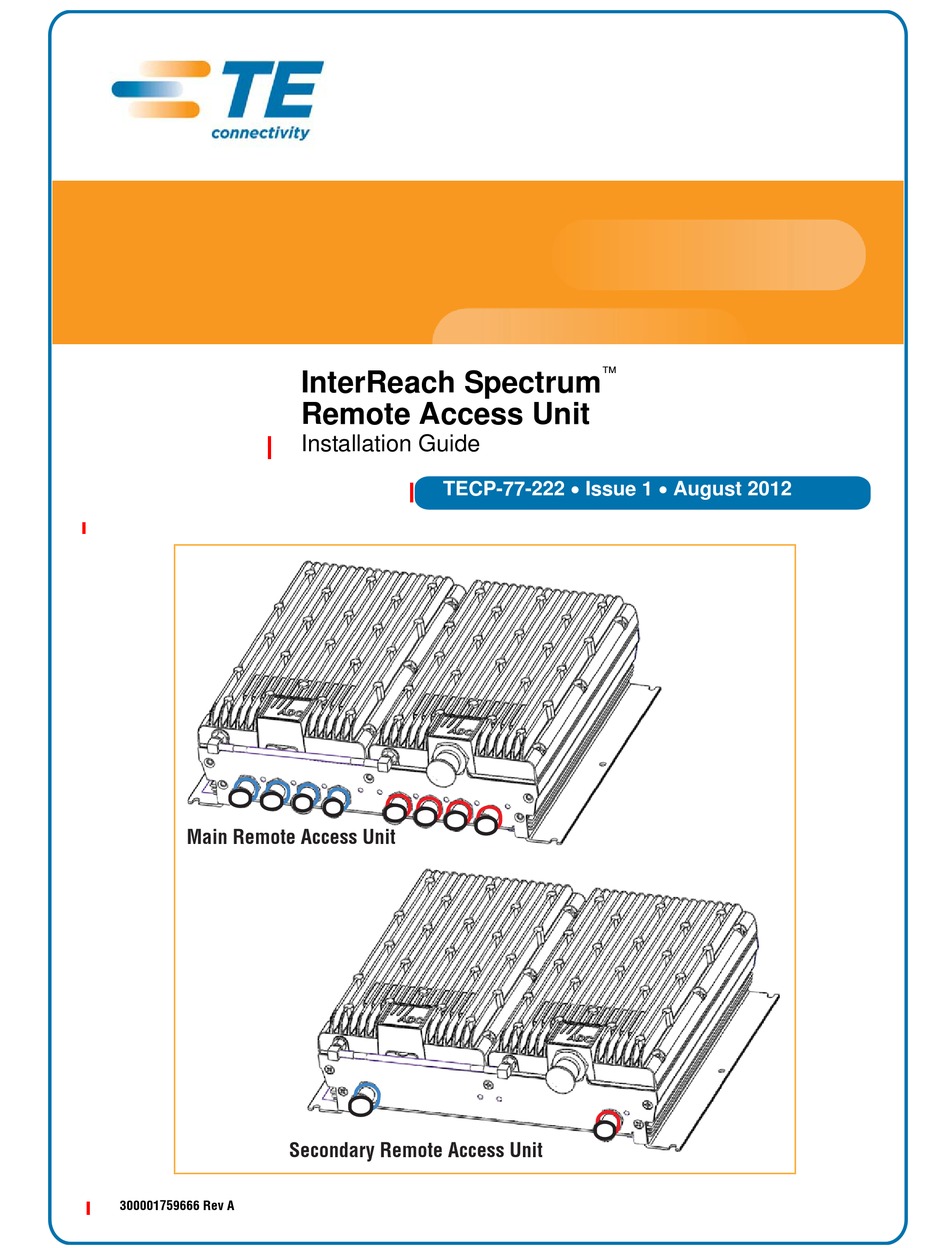

- Page 1 ™ InterReach Spectrum Remote Access Unit Installation Guide TECP-77-222 Issue 1 August 2012 Main Remote Access Unit Secondary Remote Access Unit 300001759666 Rev A...
- Page 2 Copyright © 2012 TE Connectivity, Inc. All Rights Reserved. Information contained in this document is company private to TE Connectivity Ltd., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of TE.
-
Page 3: Table Of Contents
CATV Cable Requirements............................ 20 Belden 1695A Coax Specifications ........................21 Description ..................................21 Overall Physical Characteristics ............................21 Overall Nominal Electrical Characteristics........................22 Belden 7732A Coax Specifications ........................23 Description ..................................23 Overall Physical Characteristics ............................23 Overall Nominal Electrical Characteristics........................24 Appendix C: Omni Antenna..........................25 Appendix D: Contacting TE Connectivity ......................26 InterReach Spectrum Remote Access Unit Installation Guide Page 1 TECP-77-222 • Issue 1 • August 2012 ©2012 TE Connectivity Ltd. -
Page 4: Preface
Access to the Customer Portal requires a user account and password. If you do not have an account, click on the registration link on the Log In page. Click on the following URL link or enter the URL into your web browser, and then press Enter on your keyboard: http://www.adc.com/Americas/en_US/1268116693520 On the page, click Customer Portal Home Manuals & Spec Sheets Click on the title of the manual that you wish to open or download. Page 2 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 5: Document Cautions And Notes
100 GHz. Limits have been set for portable, mobile, and fixed equipment. TE Connectivity products fall in the category of fixed equipment; products intended to be permanently secured and exposures are evaluated for distances greater than 40cm (15.75”). Portable devices fall into exposures of less than 20cm, where SAR evaluations are used. Antenna gain is restricted to 1.5 W ERP (2.49 W EIRP) in order to satisfy RF exposure compliance requirements. If higher than 1.5 W ERP, routine MPE evaluation is needed. The antennas should be installed to provide at least 40cm from all persons to satisfy MPE requirements of FCC Part 2, 2.1091. UL/CUL: This will be installed in a restricted access location. This equipment complies, per UL and CUL 50, Standard for Enclosures for Electrical Equipment. UL/CUL: This equipment complies with UL and CUL 60950‐1 Standard for Safety for Information Technology Equipment, including Electrical Business Equipment. UL/CUL: All InterReach Spectrum RAUs are Plenum rated and suitable for use in environmental air space in accordance with Section 300‐22(C) of the National Electrical Code, and Sections 2‐128, 12‐010(3) and 12‐100 of the Canadian Electrical Code, Part 1, CSA C22.1. UL: This equipment is UL Plenum rated under UL 2043. CAUTION! Modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. InterReach Spectrum Remote Access Unit Installation Guide Page 3 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 6: Product Overview
RODUCT VERVIEW InterReach Spectrum supports up to eight frequency bands in a single system. Each antenna location supports those bands in modular, group pairings. Each location includes a Main Remote Access Unit (MRAU), which can power up to three additional Secondary Remote Access Units (SRAUs). An MRAU supports two frequency bands, and each SRAU can support up to two frequency bands, for a total of up to eight frequency bands. MRAUs and SRAUs are grouped logically, based on common service provider groupings and include, as an example: 850/1900 • 700/700 MIMO • 800/900 SMR • 1900/AWS. • To add more frequency bands, you connect an SRAU to the existing MRAU. Figure 1 illustrates how RF and IF signals are sent between Spectrum units and modules. Page 4 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... - Page 7 LINK STATUS Antenna SECONDARY SECONDARY LINK STATUS Figure 1. REV and FWD Signals for the RAU NOTE: This book refers to the Omni Antenna (4214‐M727), which is the antenna that TE Connectivity recommends. Other antennas may be used. For further information on the Omni Antenna, see “Appendix C: Omni Antenna” on page 25. InterReach Spectrum Remote Access Unit Installation Guide Page 5 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd.
-
Page 8: Main Remote Access Units
Connects to the IFEU REV Module IF IN connector via CATV cable. (1) The AWS/PCS MRAUs does NOT have an RF SMA cable, and has two Antenna ports. Page 6 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 9: Mrau Leds
IFEU REV connection is paired incorrectly. • Off • Cable is not connected to the IFEU FWD port. InterReach Spectrum Remote Access Unit Installation Guide Page 7 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 10: Secondary Remote Access Units
CATV cable. (1) The 700 MIMO SRAUs does NOT have an RF SMA cable, and has two Antenna ports. Page 8 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 11: Srau Leds
MRAU REV connection is paired incorrectly. • Off • Cable is not connected to the MRAU FWD port. InterReach Spectrum Remote Access Unit Installation Guide Page 9 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 12: Rau N Connectors
There are two bands per RAU, which results in two N connectors. When there is one N connector, the two bands are combined internally and both bands use the single N connector. Page 10 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 13: Install The Rau Sand Antennas
NOTE: It is common practice to install passive antennas below the ceiling. If you install a passive antenna above the ceiling, when estimating the antenna coverage area, account for additional loss due to the ceiling material. InterReach Spectrum Remote Access Unit Installation Guide Page 11 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 14: Connect The Ifeu To The Mrau
A pair of CATV cables connects each MRAU to the IFEU. The IFEU REV Module IF IN port • and the IFEU FWD Module IF OUT port must match. For example, if IFEU REV Module IF IN Port 3 is used, use IFEU FWD Module IF OUT Port 3. Refer to “Appendix B: 75‐Ohm CATV Cable” on page 20 for information on maximum RG‐6 • or RG‐11 CATV cable lengths. Test the cable termination for each CATV cable before installing it. Connect F connector CATV cables on the IFEU and MRAU, in the order given below. If the LEDs do not perform as described in this procedure, refer to “MRAU LEDs” on page 7. Connect a CATV cable from one of the IFEU FWD Module IF OUT connectors (1 ‐ 8) to the MRAU FWD IF IN connector. Confirm that the MRAU FWD IF IN LED is yellow, which indicates a correct physical connection. Connect a CATV cable from the IFEU REV Module IF IN connector (1 ‐ 8) to the MRAU REV IF OUT connector, making sure that you pair the port used to the same port number selected in Step 6a. If the connection is correct, the MRAU powers up and the MRAU FWD IF IN LED turns green. Page 12 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... - Page 15 IFEU FWD Module IF OUT connector to MRAU FWD IF IN connector IFEU REV Module IF IN connector to MRAU REV IF OUT connector InterReach Spectrum Remote Access Unit Installation Guide Page 13 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd.
-
Page 16: Connect The Mrau To Sraus
20’ RG-6 Cable; F Male to F Male CATV cable that connects the MRAU to SRAUs. Two cables required per SRAU. Test the cable termination for each CATV cable before installing it. Connect F connector CATV cables from the MRAU to an SRAU, in the order given below. If the LEDs do not perform as described in this procedure, refer to “SRAU LEDs” on page 9. Connect a CATV cable from an MRAU FWD SECONDARY PORT (1, 2, or 3) F connector to the SRAU SECONDARY FWD F connector. Confirm that the SRAU SECONDARY FWD LED is yellow, which indicates a correct physical connection. Connect a CATV cable from an MRAU REV SECONDARY PORT (1, 2, or 3) F connector to the SRAU SECONDARY REV F connector, matching the same port number selected in Step 9a. That is, if in Step 9a you connected an F connector to the MRAU FWD SECONDARY PORT 1, the paired CATV cable must connect to the MRAU REV SECONDARY PORT 1. If the connection is correct, the SRAU powers up and the SRAU SECONDARY FWD LED turns green. Page 14 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... - Page 17 MRAU FWD Secondary port to SRAU Secondary FWD port Step 9b MRAU REV Secondary port to SRAU Secondary REV port 10 Repeat Step 9 to install up to two more SRAUs, as per system design. InterReach Spectrum Remote Access Unit Installation Guide Page 15 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd.
-
Page 18: Configure The Mraus And Sraus
LINK STATUS SRAU3 SRAU1 To an antenna To an antenna SECONDARY SECONDARY KEY: LINK STATUS SRAU2 Configure the MRAUs and SRAUs Refer to the InterReach Spectrum™ Element Management System 7.3 User Manual (TECP‐77‐200) for information on how to configure the MRAUs and SRAUs. Page 16 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 19: Appendix A: Specifications
Frequency Band Supported 850 Cellular; 800 iDEN; 900 iDEN; 1900 PCS; 2100 AWS; 700 Upper C Lower ABC Propagation Delay System Delay <12 microseconds Delay Management Digital (Manual or Automatic) Noise Figure Noise Figure For 1 Host, 1 DRU, 8 RAUs: < 17 dB For 1 Host, 4 DRUs, 32 RAUs: < 23 dB Input IP3 >‐10 dBm Optical Specifications Optical Budget 10 dB (Standard); 26 dB (Optional) Digital Transport Rate 3.072 Gbps InterReach Spectrum Remote Access Unit Installation Guide Page 17 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. - Page 20 776-786 Gain (dB) 700 Lower ABC Bandwidth 728-746 698-716 Gain (dB) Output Power Output P1dB Power per Band 26 dBm 850MHz Cell 26 dBm 1900MHz PCS 26 dBm 700MHz Upper C Lower ABC 26 dBm 2100MHz AWS 26 dBm 800 iDEN 26 dBm 900 iDEN Page 18 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012...
-
Page 21: Composite Power Out Of Rau
700 Upper C 746-756 776-786 18.0 15.0 12.0 700 Lower ABC 728-746 698-716 18.0 15.0 12.0 NOTE: Industry Canada ‐ 24.83 dBm rated output power for 2100MHz AWS NOTE: Industry Canada ‐ 46.8MHz Declared Bandwidth Gain for 2100MHz AWS InterReach Spectrum Remote Access Unit Installation Guide Page 19 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 22: Appendix B: 75-Ohm Catv Cable
Belden 1695A and 7732A Coax Cables Use RG‐6 or RG‐11 CATV cable between the IFEU and MRAU, the typical lengths of which are • listed below. Minimum Length Maximum Length Cable Type Meters Feet Meters Feet RG-6 RG-11 Page 20 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 23: Belden 1695A Coax Specifications
0.170‐inch diameter ® Outer Shield Layer 1 Duofoil Tape Aluminum Foil‐Polyester Tape‐Aluminum Foil 100% coverage Outer Shield Layer 2 Braid Tinned Copper (TC) 95% coverage ® Outer Jacket Flamarrest Low Smoke Polyvinyl Chloride (LS PVC) Overall Cabling 0.234‐inch overall nominal diameter InterReach Spectrum Remote Access Unit Installation Guide Page 21 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 24: Overall Nominal Electrical Characteristics
3.400 360.000 4.000 540.000 5.200 720.000 6.100 750.000 6.200 1000.000 7.300 1500.000 9.200 2000.000 10.900 2250.000 11.600 3000.000 13.700 Page 22 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 25: Belden 7732A Coax Specifications
Insulation Teflon Foam Fluorinated Ethylene Propylene (FFEP) 0.274‐inch diameter ® Outer Shield Layer 1 Duofoil Tape Aluminum Foil‐Polyester Tape‐Aluminum Foil 100% coverage Outer Shield Layer 2 Braid Tinned Copper (TC) 95% coverage Outer Jacket Fluorocopolymer (PVDF) Overall Cabling 0.348‐inch overall nominal diameter InterReach Spectrum Remote Access Unit Installation Guide Page 23 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 26: Overall Nominal Electrical Characteristics
2.600 360.000 3.100 540.000 3.890 720.000 4.570 750.000 4.680 1000.000 5.500 1500.000 6.910 2000.000 8.130 2250.000 9.200 3000.000 10.200 Page 24 InterReach Spectrum Remote Access Unit Installation Guide © 2012 TE Connectivity Ltd TECP-77-222 • Issue 1 • August 2012... -
Page 27: Appendix C: Omni Antenna
The Omni Antenna supports the following: Port 1 • 698‐806 MHz (700 Upper C Lower ABC) – 1710‐2170 MHz (AWS) – Port 2 • 806‐941 MHz (Cellular/SMR) – 1850‐1990 MHz (PCS) – Port 3 • – 2500-2700 MHz (WiMAX) InterReach Spectrum Remote Access Unit Installation Guide Page 25 TECP-77-222 • Issue 1 • August 2012 © 2012 TE Connectivity Ltd. -
Page 28: Appendix D: Contacting Te Connectivity
Appendix D: Contacting TE Connectivity D: C TE C PPENDIX ONTACTING ONNECTIVITY PHONE U.S.A. or CANADA Sales: 1-800-366-3891 Extension 73000 Technical Assistance: 1-800-530-9960 Connectivity Extension: 73475 Wireless Extension: 73476 EUROPE Sales Administration: +32-2-712-65 00 Technical Assistance: +32-2-712-65 42 EUROPEAN TOLL FREE NUMBERS...
