M-system M2EXV Operating Manual page 6

■ OPERATION IN EACH SETTING MODE
• Basic operation
Mode button: In measuring mode, holding down Mode button for ≥ 2 seconds, ≥ 4 seconds, ≥ 6 seconds or ≥ 8 seconds
enables to move on to each setting mode. Holding down Mode button for ≥ 2 seconds at each setting item
display enables to return to measuring mode.
Holding down Mode button for ≥ 2 seconds while changing settings ('(Setting)' is displayed next to 'DATA')
enables to discard setting value in changing, and to return to the state before change settings ('(Setting)'
next to 'DATA' is off).
Set button: Pressing Set button at each setting parameter enables to blink setting value and changing settings is
ready ('(Setting)' is displayed next to 'DATA'). Pressing Set button while changing settings enables to
save (enter) setting value and change from blinking to on.
Up button: Press Up button to move through setting parameters. Selecting setting value while changing settings,
increasing a setting value to set value. Keeping pressing Up button enables to increase the value
continuously.
Down button: Press Down button to move through setting parameters. Selecting setting value while changing settings,
decreasing a setting value to set value. Keeping pressing Down button enables to decrease the value
continuously.

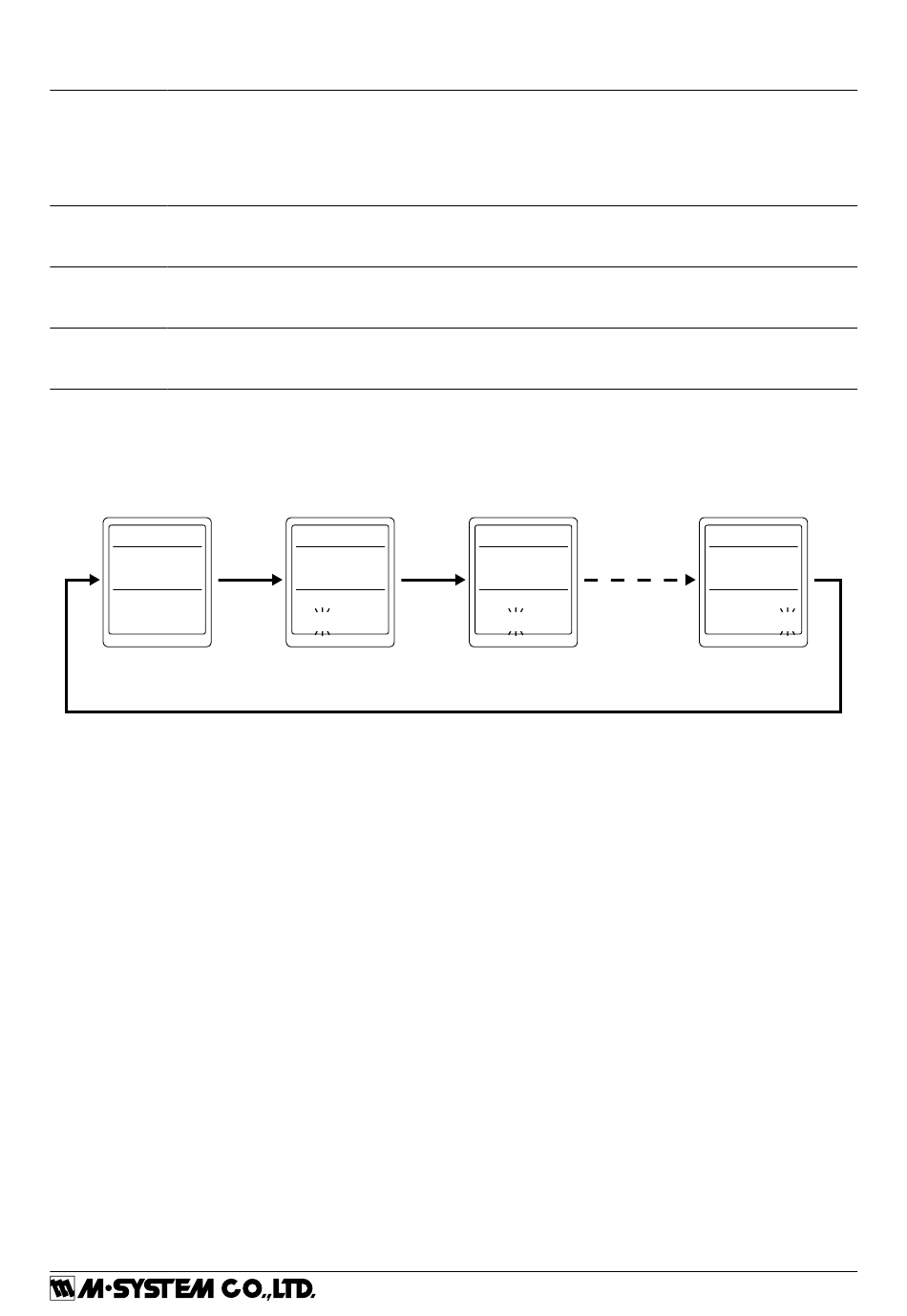

• Input / output display scaling setting parameter
For input/output display scaling setting parameter, set values digit by digit. Pressing Set button enables to move blinking
digit. Adjust blinking digit to set numerical value with Up and Down button. Blinking digit moves from most significant digit
with pressing Set button. At least significant digit, pressing Set button again enables to turn on and determine the setting
value. During setting, press and hold Mode button for ≥ 2 seconds to discard the setting value.
0% input scal
ITEM
Set button
14
DATA
0
• Lockout setting
'Lockout setting' is available for the unit. When unlocking the lockout setting, indicate 'Lockout Setting' of 'ITEM01' in each
setting mode and set 'Unlock'. To enable lockout setting again, set 'Lock'. Even when lockout setting is enabled, it is avail-
able to confirm the each setting value. 'DATA (Locked)' is indicated in that case.
0% input scal
ITEM
Set button
14
DATA ( Setting )
000000
Setting sixth digit
Set button (save)
