J.Burrows JB5TMTLSWE Assembly Instructions page 2

2

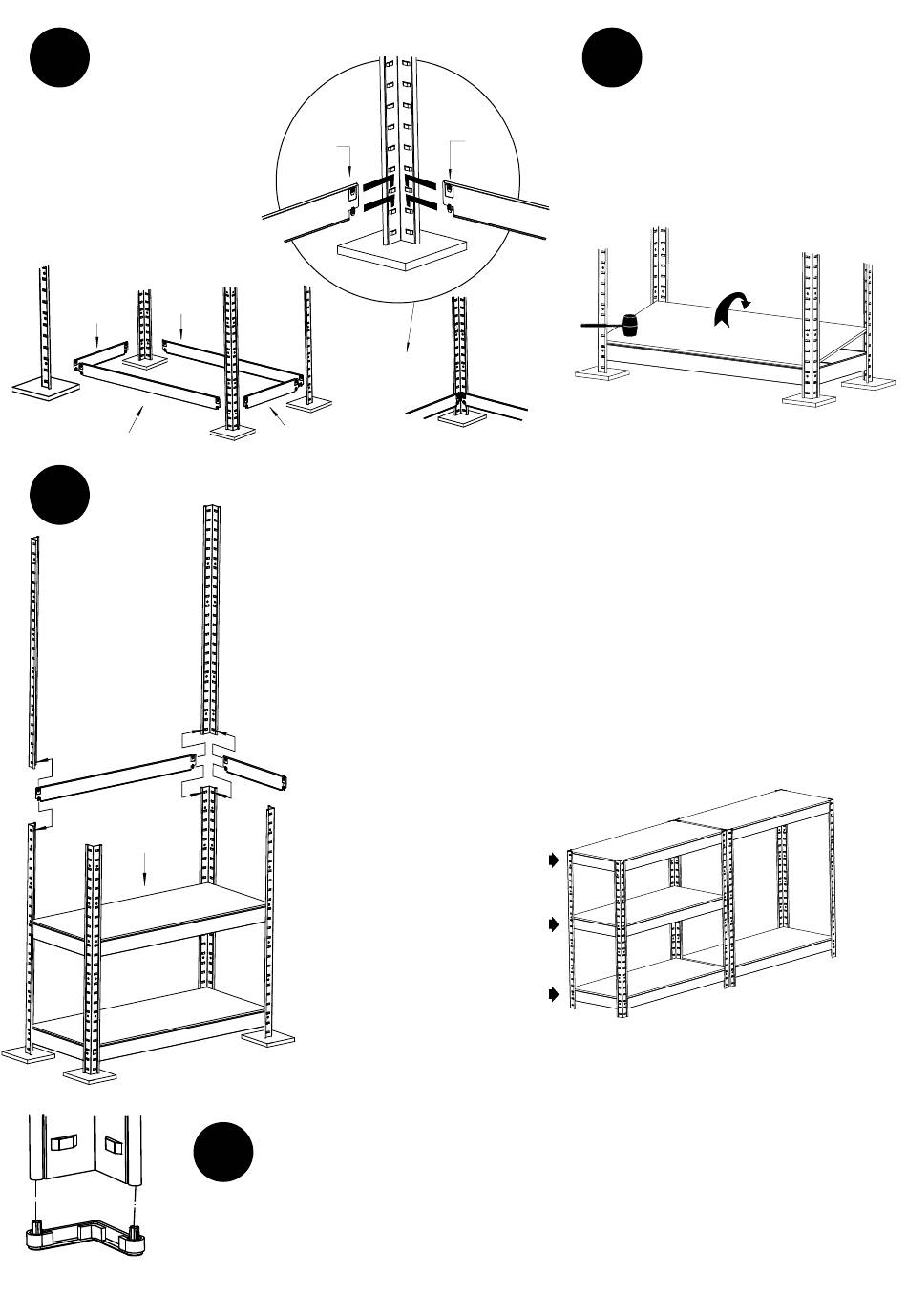

Next, insert tabs of a short apron
into the front post, creating a
"tripod." Then alternate insertion
of support aprons with posts.
Long Apron
Short Apron
Long Apron
4
Vertical Assembly
C
D
Optional Location
Fit the floor protectors
provided on the end of each leg.
For damaged or missing parts, please email products@geelongsales.com.au.
lnside
View
Tabs
Assembled
"Tripod"
Short Apron
This unit can be assembled upright (vertically) or side-by-side (horizontally).
For vertical assembly the posts are attached using a shelf support apron at
the mid-level of the unit. To attach using the aprons, begin with a short apron.
First insert top apron tab into the bottom slot of the upper post section, as shown
in illustration A, and then insert the lower apron in the top slot of the lower
post section as shown in illustration B. Repeat this process at the other end of
the short apron. Insert a long apron by again inserting the lower tab into the top
slot of the lower post section and top apron tab into the bottom side of the upper
post section (illustrations C, D) If needed, the unattached end of the long apron
can be rested on the lower post section, joining of lower and upper post sections
using the aprons until all are installed.
A
When assembling your unit it is recommended that you place the top shelf aprons
in the first and second slots from the top.
B
Horizontal Assembly
First and second slots
Optional Location
Second and third slots
To ensure stability of the unit, do not place the top shelf aprons any lower than the
sixth slot. This applies to both vertical and horizontal assembly.
5
Tabs
recommended
recommended
When moving assembled unit, always
handle by the lower half. Recheck all
apron tabs / slots being sure they are
securely seated.
3
Place shelves starting at the bottom as you
build each layer. Gently tap the top of the
shelf around each corner with a rubber
mallet until tabs are flush with slots.
