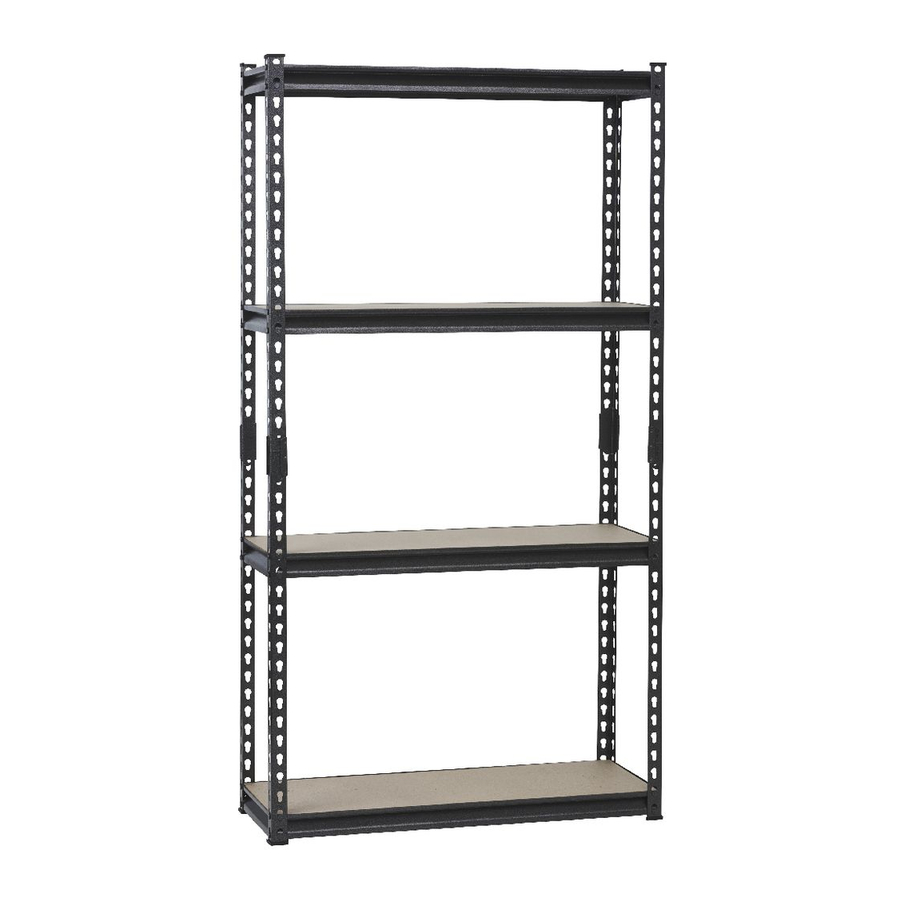

Hammerfast 4 shelf boltless shelving system
Hide thumbs Also See for JB4TRBLSR:

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
HAMMERFAST 4 SHELF BOLTLESS
SHELVING SYSTEM
JB4TRBLSR
This design and instruction booklet is subject to copyright.
www.officeworks.com.au
1 Carton
For spare parts or hardware call 1300 OFFICE (1300 633 423)
1 / 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the JB4TRBLSR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for J.Burrows JB4TRBLSR

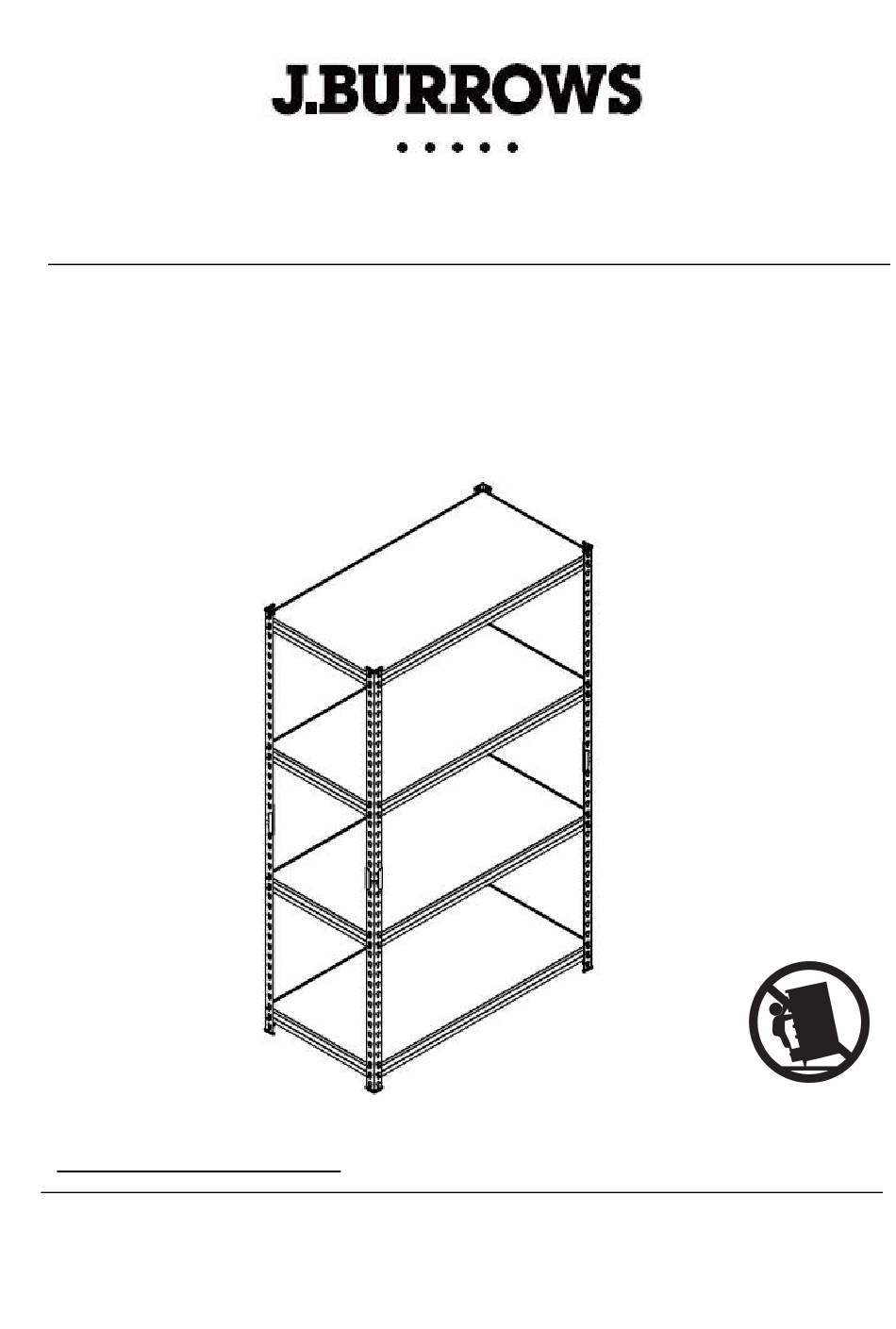

  • Page 1 ASSEMBLY INSTRUCTIONS HAMMERFAST 4 SHELF BOLTLESS SHELVING SYSTEM JB4TRBLSR This design and instruction booklet is subject to copyright. www.officeworks.com.au 1 Carton For spare parts or hardware call 1300 OFFICE (1300 633 423) 1 / 9...
