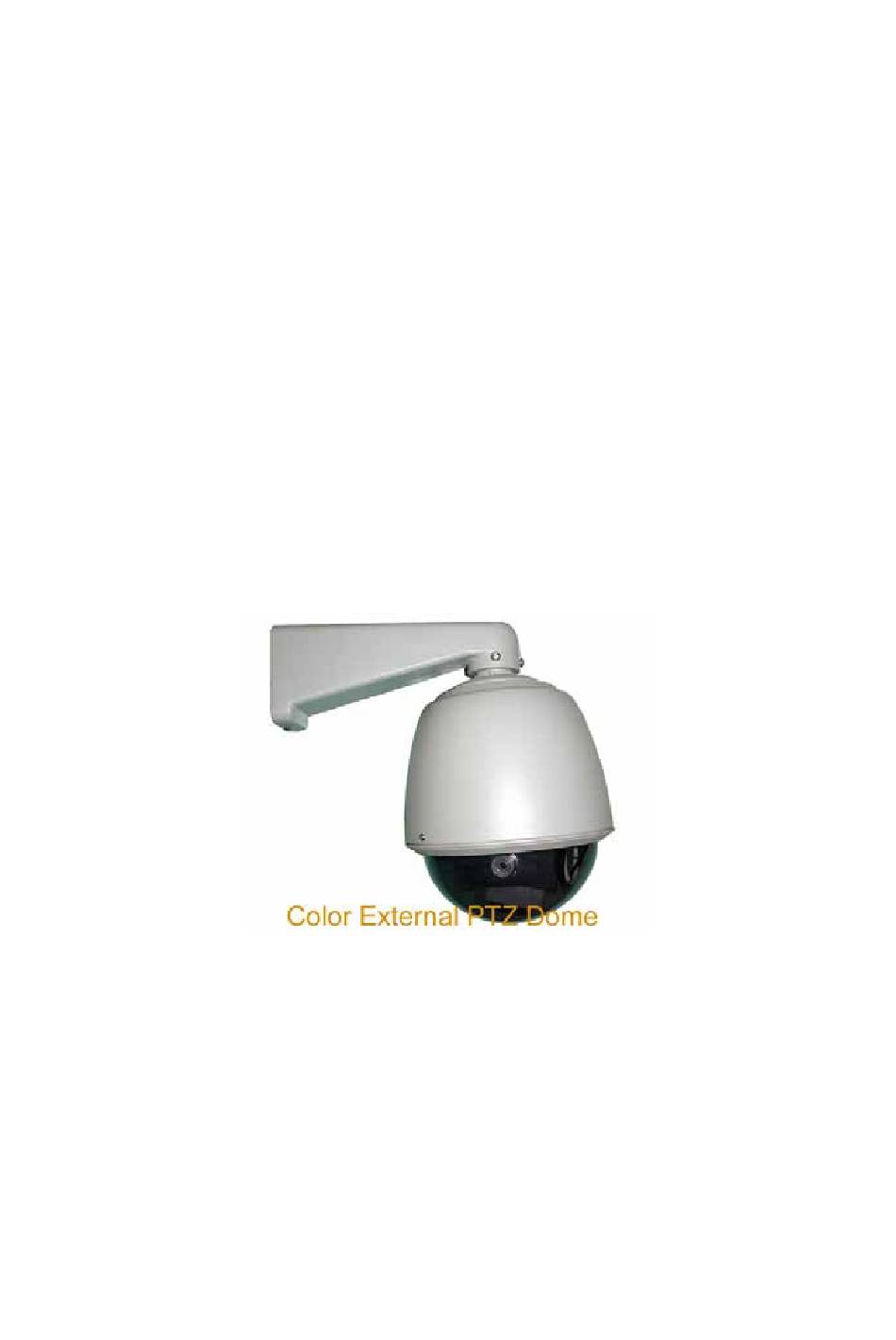

- Page 1 Jetview® Model JE710PTZ 7” Pan-Tilt-Zoom Dome Camera (24V AC) User Manual Rev. 0 (Sept. 01-2004)
- Page 2 Introductions Thank you for purchasing the surveillance product from Jetview® (http://www.jetviewcam.com). This is an all weather outdoor 7” dome PTZ (Pan-Tilt-Zoom) camera with the most powerful features to meet your application requirement. Please read the following manual carefully before use.
- Page 3 damage the unit instantly. 1. The package contains the following items: 1 x metal arm 1 x dome cover 1 x main body including: - 1 x 218X (or upgraded 220X) zoom camera - 1 x PTZ controller (default setting Pelco-D, 2400 Baud, Camera ID:1) 3 x arm mounting screws 1 x cloth glove 2 x mounting screw for dome cover...
- Page 4 Fig. 2 3.3 Install the arm to the main body by using three screws supplied. (Fig. 3). Fig. 3 3.4 Dome cover installation Use two mounting screws supplied, line up to two holes on the body and tighten up. Notice that you may need a cloth glove to do this as scratches may occur if hard subject touching the dome cover.
- Page 5 3.5.2 Connect the data cable labeled with “RS485 (+) and (-) to the RS485 output of your DVR system or keyboard controller. Note: The factory default setting for built-in controller is Pelco-D, 2400 Baud, Camera ID is “1”. Please read the internal PTZ controller for other settings. 3.5.3 For unit with manual control, connect the cable labeled with “Up”, “Down”, “Left”, “Right”...
- Page 6 desired. 4. PTZ Dome Specifications Specifications Power input AC 24V, 50/60Hz Power consumption 8 VA Rotation angle Horizontal: 0-360° Vertical: 0-90° (adjustable) Rotation Speed Horizontal 6.5°/sec; Vertical: 6.5°/sec Temperature -10°C to 50°C (heater and fan (optional) can extend low temp limit) Body: ABS Bracket components: Aluminum alloy Structure...
- Page 7 6. Built-in PTZ controller The built-in PTZ controller is also called “Decoder”. It converts the digital signals sent by the DVR (Digital Video Recorder) into the analog ones for Pan, Tilt , Zoom and Focus control. The built-in controller takes only RS 485 signal (+) and (-). The input voltage is AC 24V. Wrong power input could cause server damage to the controller and the camera.
- Page 8 6.2 Protocol setting Protocol setting is done via a 4-position dip-switch SK2. Item Switch Protocol Baud Rate 1 2 3 4 Pelco-P 4800 Pelco-D 2400 6.3 Baud Rate setting Baud rate setting is also done via Switch 1 and 2 of SK1. Switch 1,2 Baud Switch 1,2...
- Page 9 DVR system to ensure 100% matching the PTZ camera setting. For any questions regarding to this product, please contact ken@tailand.com.cn at Jetview Electronics for assistance.
