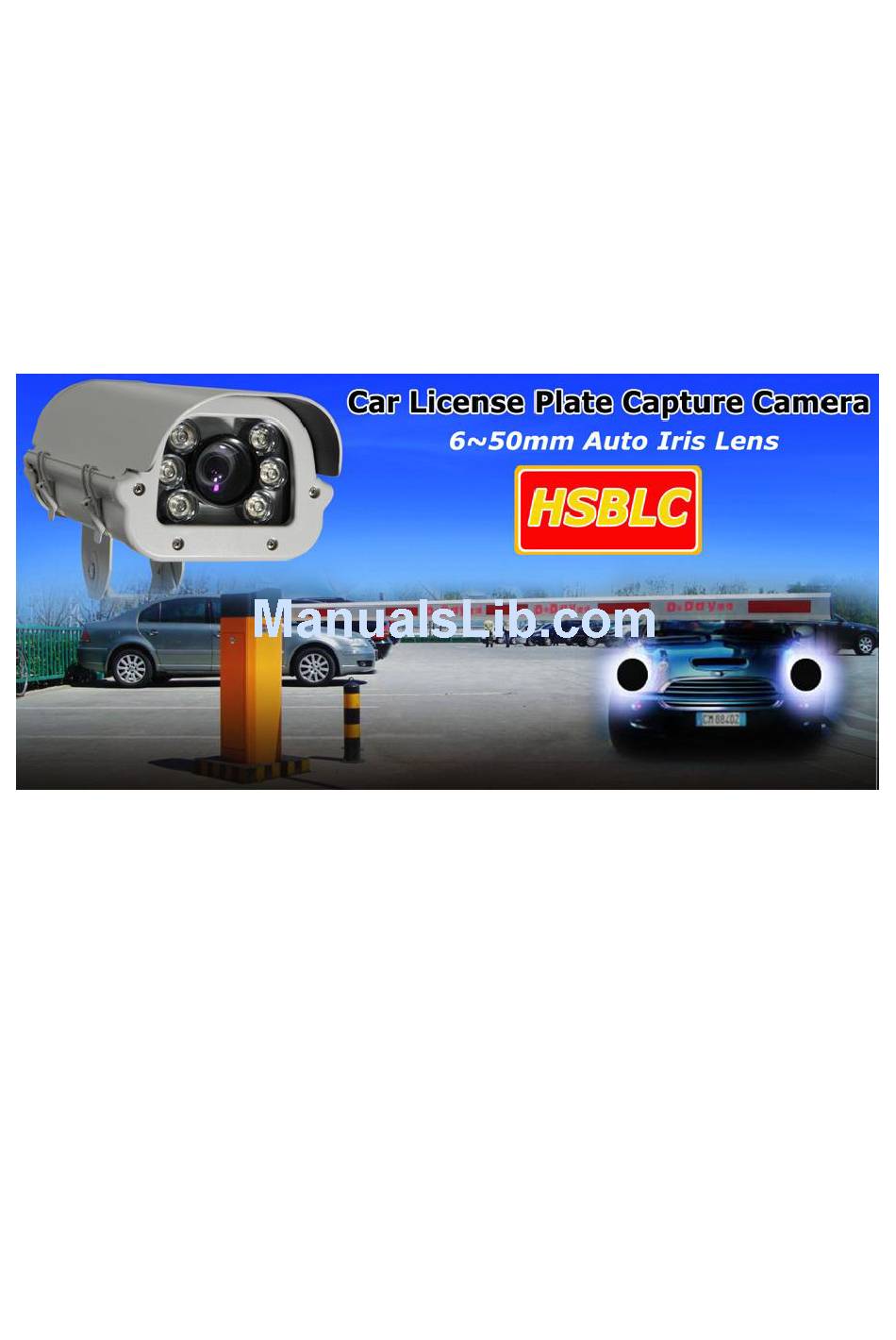

- Page 1 600TVL IR Car License Plate Capture Camera User Manual Warning：Please read this manual carefully before installation and use!
-
Page 2: Table Of Contents
User manual for PC DVR card Tab of Contents Safety Tips ..............................3 Points For Attention ............................. 3 Characteristics .............................. 3 Function ........................错误！未定义书签。 Camera Real Panel ..................错误！未定义书签。 Overview ......................错误！未定义书签。 Usage ..........................错误！未定义书签。 Dimensions (mm) ............................6 Menu Operation ............................. 7 Lens .............................. -
Page 3: Safety Tips
User manual for PC DVR card 1 Safety Tips Installation must be operated by qualified professionals; Laypeople are forbidden to open this camera; 2 Points For Attention Keep the camera away from damp or rainy places, and install strictly as per the manual; ... -
Page 4: Overview
User manual for PC DVR card Recognize No. Plate with clarity at any vehicle speed IP66 Water-Proof 4 Overview Note Unfasten the latch, then cover the protective cover and fasten the latch after the camera installation and lens’ focusing finished (It’s recommended to fasten the latch by screw in order to avoided unprofessional disassembly on housing) ... - Page 5 User manual for PC DVR card Connecting Sketch The camera can automatically identify the PELCO-D/PELCO-P Protocol and Baud Rate Protocol and 2400/4800/9600 baud rate. The camera ID address range from 0 to 127 for， Please see “10. ID DIP Code Setting” to setup the new ID address will be Camera ID Address activated after reboot the camera.
-
Page 6: Dimensions (Mm)
User manual for PC DVR card Dimensions (mm) -
Page 7: Menu Operation
User manual for PC DVR card Menu Operation Call+100+Enter into the main menu for camera, in this menu user can setup camera by oneself. This button means has submenu. 7.1 Lens User can select and setup the lens mode to be DC (auto-Iris) or ESC (electronic shutter), the system default status is ESC. -
Page 8: White Bal (White Balance)
User manual for PC DVR card Shutter: When FLK is OFF, you can set the shutter. Normally, shutter is for taking a photo for moving objects. The time is short, the photo is clear. Example, you need take a photo for water-drop and that needs the shutter time is short for best. -
Page 9: Agc (Automatic Gain Control)
User manual for PC DVR card Menu WB Manual Lens ….. White BAL Blue ….. Day/Night AUTO Image ADJ General Initial Exit Red: 0~160 Blue: 0~160 7.2.3 Push Not adjustable 7.3 AGC (automatic Gain Control) AGC can make the photo color more vivid, increasing of the color contrast and making it sharper (make trenchant edges line clearer). - Page 10 User manual for PC DVR card 7.4.1 Auto Menu Change Delay Time Lens Delay time ….. White BAL D/N level High Day/Night AUTO Image ADJ General Initial Exit AUTO: lens will change between day (color mode) and night (b/w mode) automatically. Delay time: user can set the delay time for switching from day to night.
-
Page 11: Image Adj(Image Adjust)
User manual for PC DVR card 7.4.4 EXT(external synchronous) Menu Color Burst Lens White BAL Burst Day/Night Image ADJ General Initial Exit B/W image changes to colorful according to the IR light. When IR is on, the image will be b/w; if the IR is off, the image will be color. - Page 12 User manual for PC DVR card 7.5.2 DNR(descent noise rate) Menu Color Burst SBLC Burst SHARPNESS MIRROR MOTION PRIVACY COLOR GAIN GAMMA 0.45 INITIAL RETURN 7.5.3 Sharpness Sharpness is to help make the image clearer. The system default value is 10: (Level: 0~20) Menu Sharpness SBLC...
- Page 13 User manual for PC DVR card Menu Motion SBLC Area SHARPNESS Display MIRROR Sensitivity MOTION PRIVACY Bottom COLOR GAIN Left Right GAMMA 0.45 Initial INITIAL RETURN Return Area: There are four areas user can setup; Display: if choose ON, the screen will display letters “motion…”when there’s motion. The system default is OFF.
- Page 14 User manual for PC DVR card Display: When setup the status is ON, the screen will display Letters “mask”. Color: User can select the mask color among white, yellow, green, blue, red, black and gray. TOP: User can set the mask area top (8~126); Bottom: User can set the motion mask area bottom (8~126);...
-
Page 15: General
User manual for PC DVR card 7.6 General User can set normal setting for camera such as camera ID, Language, baud rate, act. 7.6.1 CAM ID Menu General Lens CAM ID White BAL ID Display CAM Title Day/Night Language Image ADJ SYNC General Baudrate... -
Page 16: Initial
User manual for PC DVR card 7.6.6 Version User can get the information for system version. 7.6.7 Initial If you want get default parameters for General. Please set the initial status to be ON. 7.7 Initial If you want get default parameters for system. Please set the initial status to be ON. - Page 17 User manual for PC DVR card 8 Typical Setting...
- Page 18 User manual for PC DVR card 9 Specification Model MS-7800N MS-7800P 1/3 “ SONY Super HAD CCD Sensor Pixel 768（H）x 494（V） 752（H）x 582（V） Scanning 2:1Intelace Sync. Mode Internal，Line Lock Horizontal Frequency 15.734kHz 15.625 kHz Vertical Frequency 59.94Hz 50.00 Hz Resolution Color：600TV Lines/650TV Lines（B/W，Signal Enhancement）...
-
Page 19: Id Dip Code Setting
User manual for PC DVR card 10 ID DIP Code Setting... - Page 20 User manual for PC DVR card...
