Rose electronics GTH 48 - 60 Mounting Instruction

Montageanleitung Geräteträgersystem GTH 48 - 60
Mounting instruction suspension system GTH 48 - 60
cantilever (m)
Aufsatzgelenk (EMV) - Kupplung (EMV)
top mounted joint (EMC) coupling (EMC)
a
b
d
gefettet / greased
1 x M8
Rohr / tube
gefettet
greased
3
4

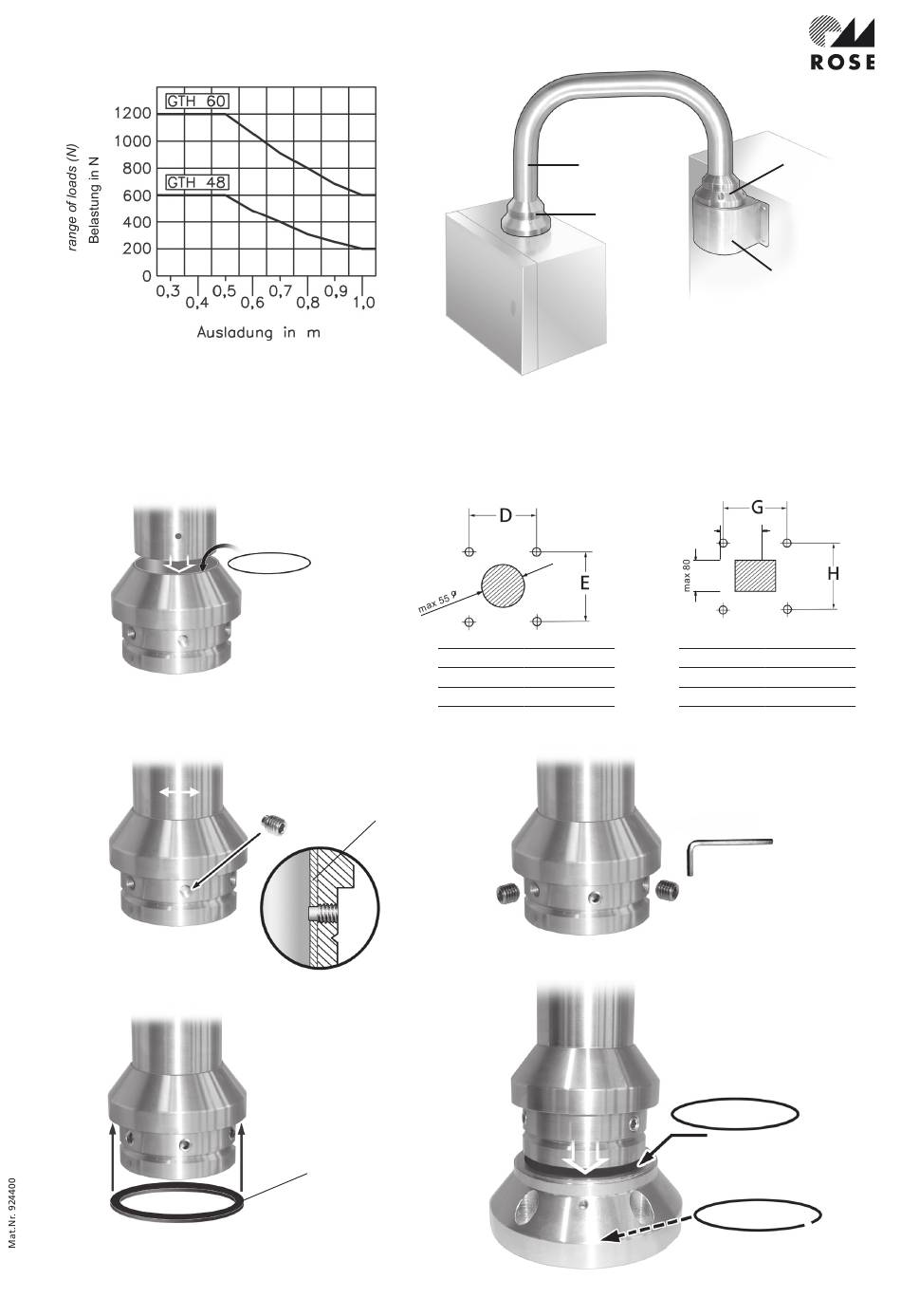

Bohrbild aller Einzelkomponenten
drilling-pattern of all single components
D E
GTH 48 68 72
GTH 60 68 85,8
c
3 x M10
e
2
1
1 Wandkonsole / wall bracket
2 Aufsatzgelenk / top mounted joint
3 Rohr / tube
4 Kupplung / coupling
Bohrbild Wandkonsole
drilling-pattern wall bracket
max 80
G
GTH 48 155
GTH 60 168
20 Nm
gefettet / greased
nur bei EMV-Ausführung
only at EMC-version
EMV-Abschirmung

EMC-screening

H
100
100
