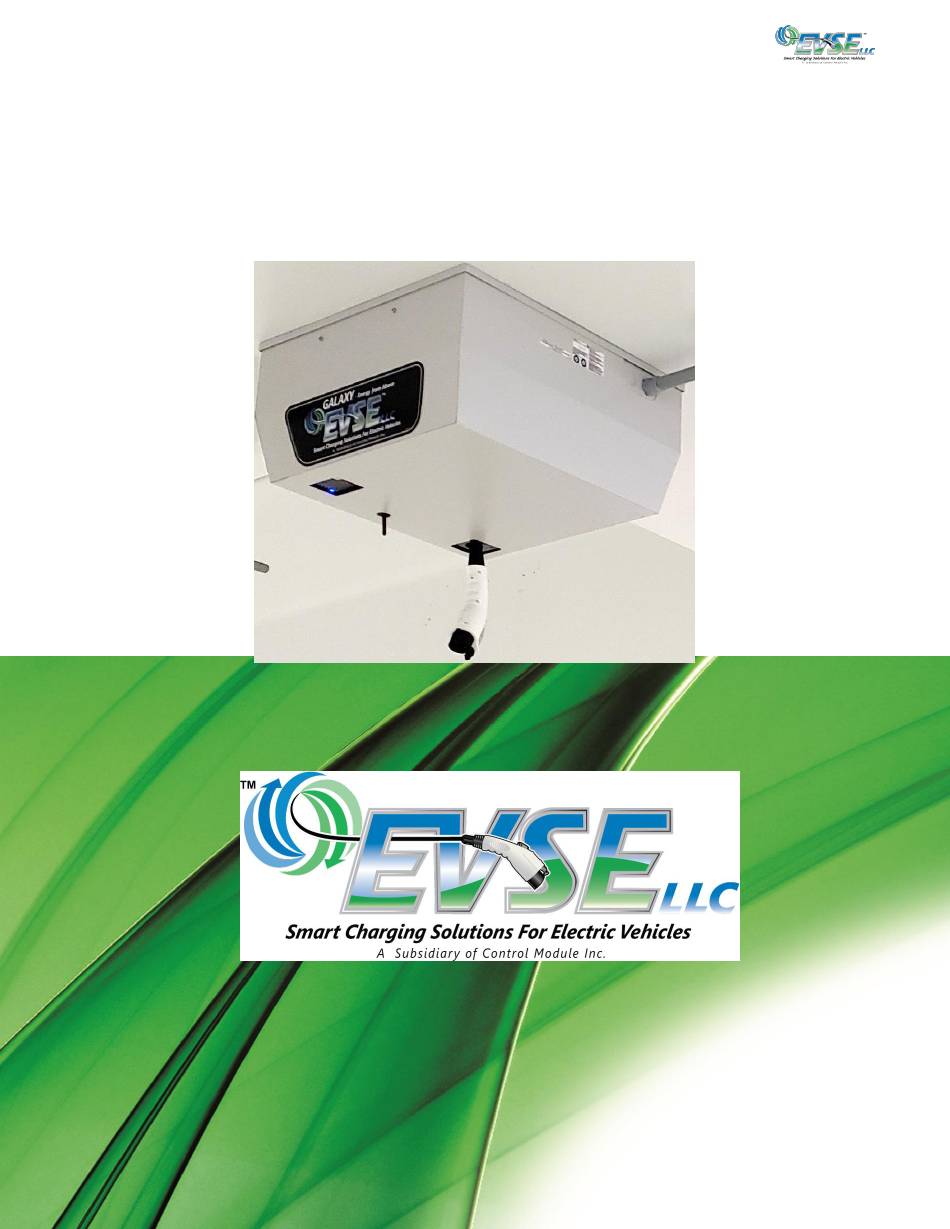

Control Module Inc., EVSE LLC
State of the Art EVSE with Cable Management
Overhead Electric Vehicle Supply Equipment
Model 3722 Family
User Manual and Installation Guide
Model 3722
Electric Vehicle Supply Equipment (EVSE)
Patents Pending
3722-IG-002 Rev 1.1
December 2018
User Manual and Installation Guide
i
Model 3722-001 (Rev. J) Overhead EVSE / 30A
Copyright EVSE LLC 2012-2015. All rights reserved. Patents pending.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3722 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for EVSE 3722 Series

  • Page 1 User Manual and Installation Guide Model 3722 Electric Vehicle Supply Equipment (EVSE) Patents Pending 3722-IG-002 Rev 1.1 December 2018 User Manual and Installation Guide Model 3722-001 (Rev. J) Overhead EVSE / 30A Copyright EVSE LLC 2012-2015. All rights reserved. Patents pending.
  • Page 2: Table Of Contents

    Removing the 3722 from the Shipping Box ..........................12 Mounting the Unistruts to the Ceiling ............................. 13 Mechanical Installation of EVSE Unit ............................14 Wiring for Power ..................................15 Wiring the EVSE for Serial Communication ..........................16 3722-IG-002 Installation and User Manual February 6, 2019...
  • Page 3 Replacing the Cover ............................... 17 Configuring J1772 Cable Operation ..........................18 Testing Cable Operation ................................18 Setting the Cable Lowering Height for ADA..........................18 Installation Notes ................................19 Dip Switch Settings ................................ 20 Operation ..................................21 Testing and Fault Modes ..............................22 Status Indicator Chart ................................
  • Page 4: Important Notes

    DATA, LOSS OF USE, COST OF COVER, OR LOSS OR DAMAGE TO THE WATT POINT CHARGING STATION, ARISING OUT OF OR RELATING TO THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CONTROL MODULE INC., EVSE LLC, OR ITS AUTHORIZED DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 5: Copyright And Trademarks

    Copyright and Trademarks Copyright 2018 Control Module Inc., EVSE LLC. All rights reserved. This material is protected by the copyright laws of the United States and other countries. It may not be modified, reproduced or distributed without the prior, express written consent of Control Module Inc., EVSE LLC.
  • Page 6: Instructions Pertaining To Risk Of Fire Or Electrical Shock

    Instructions Pertaining To Risk of Fire or Electrical Shock The following is a summary of safety concerns relevant to the installation and use of the Model 3722 EVSE unit. Failure to follow these safety instructions may lead to serious injury, death and/or damage to the equipment.
  • Page 7: Instructions De Sécurité Importantes

    Instructions De Sécurité Importantes sert à fournir une alerte de tensions dangereuses et possibilité de choc électrique AVERTISSEMENT: est utilisé pour fournir la sensibilisation des renseignements importants dans ces instructions ATTENTION : INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Seul le personnel qualifié doit effectuer l'installation. Cette installation doit être effectuée AVERTISSEMENT: conformément à...
  • Page 8: Introduction To Model 3722-A30Xx Evse Unit

    The Model 3722 is comprised of the Electric Vehicle Supply Equipment (EVSE) with a motorized cable controller and the Data Router, which is used to activate the EVSE (turning it on or off). There are a number of operating options that are compatible with the Model 3722, ranging from simple ON switches, to a Data Router that displays kW’s used, the price per kW, and the...
  • Page 9: Safety Features

    2 to 5 minutes to prevent the power grid from incurring a large power surge. Plug-Out Detection - The model 3722 EVSE is equipped with a Plug Out Detection circuit that identifies when the connector is attached to the electric vehicle. This allows the EVSE to immediately remove electric power from the electric vehicle before the connector is totally removed from the vehicle inlet.
  • Page 10: Remote Connection

    1% or better accuracy. The EUMD can also be installed and used by itself to send power measurements back to the host. Remote Fob: An external module can be purchased that receives RF signals from a remote fob to lower the EVSE J1772 power cable, operating the same as the wall-mounted ON switch.
  • Page 11: Specifications

    Line 1 and 2, Ground, (Neutral Not Required) Required Service (Breaker Panel) 2-pole 40A breaker Non GFCI on a dedicated circuit/20A Switchable by Dip Settings Stand By Power (Per EVSE) Less than 10W typical (without communication/Payment Module/Gateway operating) Power Output 7.2kW...
  • Page 12: Site Preparation

    Site Preparation The Model 3722 (Figure 2) is a single EVSE unit designed to be mounted to a garage ceiling in a horizontal position. Power must be located at the charging location and supplied by an individual, dedicated 40A non-GFCI circuit breaker at the breaker panel.
  • Page 13: Site Selection

    Site Selection The Model 3722 was designed to be mounted to the ceiling and should be positioned, if possible, so that when the J1772 power connector is lowered, it will be close to the power inlet on the electric vehicle. This location is recommended because the cable, when extended, has a 20 ft.
  • Page 14 The ON Switch option should be located on a wall within 30-wire feet from the EVSE, 250 feet for the wireless version (Figure 4), and 4 feet above the floor. Figure 4 3722-IG-002 Installation and User Manual February 6, 2019...
  • Page 15: 2010 Ada Standards For Accessible Design

    While installers should be knowledgeable about all aspects of the requirement, several critical paragraphs and illustrative figures (Fig. 5A-5E) are referenced below to assist with locating the EVSE to meet reach and obstruction requirements of the Act. When properly located relative to the curb, the Model 3722 is compliant with all aspects of the following ADA paragraphs.
  • Page 16 308.3.1 Side Reach – Unobstructed Where a clear floor or ground space allows a parallel approach to an element and the side reach is unobstructed, the high side reach shall be 48 inches (1220 mm) maximum and the low side reach shall be 15 inches (380 mm) minimum above the finish floor or ground.
  • Page 17: Electrical Service Connections

    120V to Neutral. Attention: Cette EVSE est un appareil monophasé. Ne pas connecter tous les 3 phases d'un flux de phase 3!!! Vous pouvez utiliser tout deux phases d'une phase 3, Wye connecté nourrir ! Le point central des 3 phases (généralement utilisé...
  • Page 18 Attention: Switch Lorsque vous utilisez une source d'alimentation de Delta-style pour le modèle de EVSE 3722, il doit y avoir un robinet center. Seuls les deux phases de chaque Figure 6C côté de l'eau du robinet center (L1 et L2) peuvent être utilisés et chacun doit mesurer 120 v au Neutre.
  • Page 19: Installation

    Recommended Mounting Method Refer to the following table for a list of parts needed for installation that are not supplied as part of the EVSE unit. These parts may be purchased at any reputable building supply store. Ensure that all parts meet or exceed local building codes for quality.
  • Page 20: Mounting The Unistruts To The Ceiling

    The mounting of the two Unistrut sections must be secured to a solid structure (such as the ceiling joists) using appropriate fasteners and must be level. Do not use hollow wall anchors. The EVSE unit weighs 42 lbs. (plus the Unistruts and attaching hardware). Serious injury or death can result if the EVSE unit falls onto personnel during installation or operation.
  • Page 21: Mechanical Installation Of Evse Unit

    4. Reinstall the four screws removed earlier to lock the 3722 main assembly plate to the ceiling mounting plate (Figure 8A). Note: If this EVSE uses a serial-connected Payment/Gateway Module or wired switch to initiate charging sessions, see those installation guides for wiring instructions.
  • Page 22: Wiring For Power

    Wiring for Power 1. After installing conduit between the breaker panel and the EVSE, pull through the AC wiring. Be sure to use stranded copper wires. Note: The Power Disconnect Switch and Ground Bar can accommodate wires from 4-10 AWG.
  • Page 23: Wiring The Evse For Serial Communication

    SHIELD GROUND 3. Lift the housing plate back up into the EVSE, install the two screws removed earlier and tighten all four screws. 4. Turn the Power Disconnect Switch (Figure 9) to ON. 5. Replace the EVSE service cover by following the instructions on Page 17.
  • Page 24: Replacing The Cover

    Replacing the Cover Replacing the cover involves the same steps, in opposite order, as removing the cover. Remote RF Antenna (Optional) J1772 Velcro Strip Zigbee Connector Antenna (Optional) Figure 13 1. If present, lower the Zigbee or Remote RF antenna so they can protrude from the cover. Push out the black plastic cap currently in the cover’s antenna access hole (Figure 13) 2.
  • Page 25: Configuring J1772 Cable Operation

    Remote FOB. 1. Observe the Data Router on the front of the EVSE (Figure 14). You should observe that only the blue Power LED is lit. Either use the Payment Module to initiate a charging session, or press the wired or wireless ON button or Remote FOB.
  • Page 26: Installation Notes

    It is important to fill out the following information for your records. Circuit ___________________________________________________ Panel Location _____________________________________________ Breaker Number ____________________________________________ Breaker Rating _____________________________________________ EVSE Station 1 Installer ID ____________________________________ Location ______________ Company _________________________ Number ______________ Name ____________________________ Tel. No. ___________________________...
  • Page 27: Dip Switch Settings

    Switch 2 is not currently used and is reserved for future applications. Switch 3 puts the EVSE into Test Mode for connecting to a Payment Module via a ZigBee network. See the 3725-UG-002 Payment Module User Guide for information about adding the 3722 to the network. OFF = Not in Test Mode; ON = In Test Mode Switch 4 provides an interface for Controller Access Security Systems (CASS).
  • Page 28: Operation

    The following operation assumes all steps with a Payment Module have been completed to initiate the EVSE for a charging session. If your EVSE does not use a Payment Module, you will need to either push the ON button on the wall switch (Figure 1) or the Remote FOB to release the cable to initiate a charging session.
  • Page 29: Testing And Fault Modes

    Testing and Fault Modes With the communications required between the EVSE and the Electric Vehicle, it is recommended that the installer use a Control Module Inc. Model 3840-001 hand-held Electrician tester. This will thoroughly check out the EVSE, before using an Electric Vehicle.
  • Page 30: Status Indicator Chart

    Status Indicator Chart (Power) (Connect) (Charging) (Problem) NORMAL USE MODES: BLUE YELLOW GREEN Line Voltage On Self-Diagnostics Pass Cable is in home position Line Voltage is between 208-240VAC Ground Connection Present Cable Extending/Waiting to connect Cable Retracting/Disconnected Cable is connected ADA Learn Mode Voltage applied to vehicle Vehicle in charge mode (Level 2)
  • Page 31: User Maintenance

    Assurer l'alimentation électrique a été fermeture à la source avant de commencer les travaux d'électricité. Suivez tous les codes d'état et locaux. Should the Model 3722 EVSE need to be relocated, remove the unit in the reverse order that it was installed. ...
  • Page 32: Customer Support

    Customer Support Should questions about installation, operation, optional features, maintenance or service arise, please call Technical Support at 1-888-753-8222 between the hours of 8:30 am to 5:00 pm EST, Monday to Friday. Letter Service Department Attn: Jack Batalha, Director Product Support Control Module Inc.
  • Page 33: Warranty

    Warranty For Standard Terms and Conditions, and Warranty information: http://controlmod.com/technical-support/order-terms/ 3722-IG-002 Installation and User Manual February 6, 2019...
  • Page 34 SAVINGS, LOSS OF EARNINGS, GOODWILL, COSTS OF COVER, IN EACH CASE RELATING TO THIS WARRANTY OR TO THE EQUIPMENT, EVEN IF SUCH DAMAGES WERE FORESEEABLE AND EVEN IF THIS WARRANTY FAILS OF ITS ESSENTIAL PURPOSE. EVSE LLC A Division of Control Module, Inc.
