- Page 1 MINI PORTABLE CHARGER DATASHEET & USER MANUAL www.evse.com.au sales@evse.com.au Version 1.0 1300 406 210...
-
Page 2: Product Overview

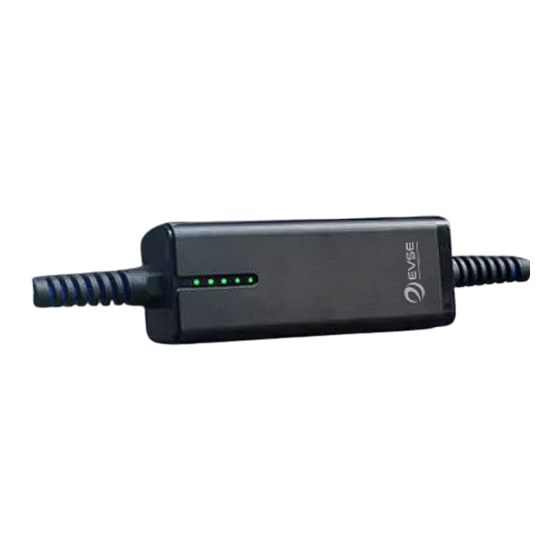

Wall Plug EV Charging Plug This Mini Portable Charger is a convenient solution for low-power charging, offering a 1.8 kW max output and current setting of 8A. Weighing just 3kg, it's lightweight and compact, ensuring easy handling and minimal space use. -
Page 3: How To Stop
HOW TO USE Plug into the wall socket Plug into your EV HOW TO STOP Disconnect the charging gun Disconnect the wall plug Put back the protection cover... -
Page 4: Led Display Status
LED DISPLAY STATUS Disconnected Mode Connected Mode Charging Mode Finish Mode Fault Mode Light Light (Green) Rolling (Green) Light (Green) Flashing (Red) SPECIFICATION Input & Output Voltage 100-250V AC Input Frequency 47- 63Hz AC Power Output Rating 1.8kW Connector and Electrical Max. -
Page 5: Other Specification
OTHER SPECIFICATION 1. Operating Current : 8Amp 2. Maximum Power : 1.8KW 3. Auto Charge Recovery : Yes 4. Warranty : 2 Years 5. Insulation Resistance : >10M Q 6. Withstand Voltage : 2000V 7. Terminal Temperature rise : <50K 8. - Page 6 IMPORTANT SAFETY INSTRUCTION WARNINGS • This product should only be installed, repaired, or maintained by authorized electricians and in accordance with national guidelines for electrical installations. All applicable local, regional and national regulations for electrical installations must be respected. • Regularly check if the charger has visible damage. Do not use a damaged product. •...
