- Page 1 Friteuses de table Manuel d’utilisation Tisch-Fritteusen Bedienungsanleitung p 11 Table fryers User manual p 20 Freidoras Instrucciones p 29 MAXI 5 TF5/55 TF7/77 TF10 TF13 Ed. 06/2018 Manuel original/Originalbetriebsanleitung /Original manual ©Valentine Fabrique SA,2018...
- Page 2 Welcome - Safety Congratulations on your purchase of a Valentine fryer, a product of the best quality well known in Europe for over 60 years. This product will work optimally for many years if you respect a few basic rules outlined in this manual.
-

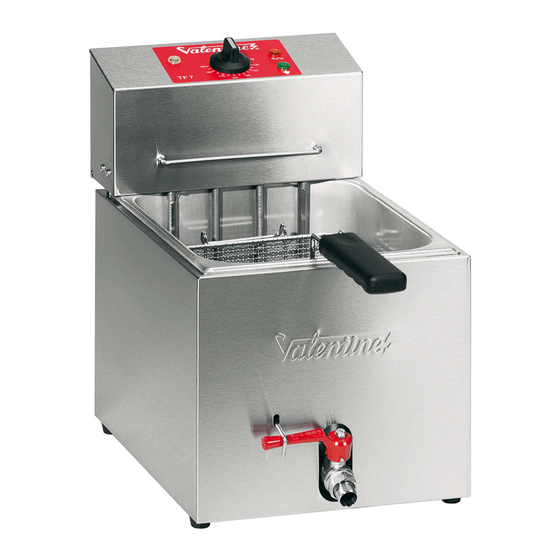

Page 3: Description Of The Appliance
Description of the appliance Switch-thermostat Discharge* White control lamp Safety thermostat bulb Orange control lamp Push nipple Green control lamp Red button = reset button for Dial safety thermostat Basket suspension bracket Connecting cable Thermostat sensor on heating Nameplate element Safety thermostat Oil level mark Safety switch... - Page 4 Commissioning ♦ If there is a protective plastic sheet this needs to be re- moved. ♦ The voltage, current and power must correspond to the information specified on the rating plate [17] on the back of Heating element box [21] of the appliance. ♦...
- Page 5 Cooking Switching on The white control lamp [2] lights up Turn the knob of the switch thermostat [1] to The control lamp [yellow 3] lights up the temperature you require, for example 180 As soon as the green control lamp [4] lights ...
- Page 6 Changing the oil and maintenance Changing the oil It is highly recommended that you thoroughly clean the fryer when you change the oil. As soon as the oil turns brown and begins to smoke (after approx. 50 to 80 operating hours) the oil must be changed.
-
Page 7: Safety Thermostat
Safety thermostat All Valentine fryers are fitted with a safety thermostat for each tank. These safety thermostats are placed in the heating element box at the back of the fryer. The red reset button [15] goes up underneath the housing. - Page 8 Specifications TF7T TF10 TF13 TF77 TF77T MAXI-5 TF55 TF55 Model: 1x400 1N230 1x400 3N400 3N400 2x1N230 2x1N400 1N230 3x400 2x1N230 Voltage [V] : Power [kW] 2x 3.6 2x 4.6 2x 3.6 Current 15.6 11.5 2x 15.6 2x 11.5 2x 16 Frequency 50 –...
- Page 9 R1,R2,R3 230V 2300W Heating element TF7 400V A1030-03 R1,R2,R3 400V 3600W Heating element TF7T A3030-01 R1,R2,R3 400V 2300W Heating element TF55 230V A1030-04 R1,R2,R3 230V 3600W Heating element TF55 400V A1030-05 R1,R2,R3 400V 3600W Baskets Basket TF7 and Maxi 5...
-
Page 10: Declaration Of Conformity
Declaration of conformity We, the manufacturer Valentine Fabrique SA Z.I. Moulin du Choc E CH - 1122 Romanel-sur-Morges Phone: +41 21 637 37 40 Fax: +41 21 637 37 41 E-mail : info@valentine.ch Website : www.valentine.ch confirms that the above-mentioned products conform to the following standards:... - Page 11 Schémas électriques Maxi-TF/Schalpläne Maxi-TF Wiring diagramm Maxi-TF/Esquemas electricos Maxi-TF...
- Page 15 TF5/55 (1x/2x) 1N230V (1x/2x) 3.6kW (1x/2x)16A TF5 2x400V 3.6kW 9A / TF55 3x400V 7.2kW 16A...
- Page 16 Valentine Fabrique SA Z.I. Moulin du Choc E CH - 1122 Romanel-sur-Morges T +41 21 637 37 40 F +41 21 637 37 41 info@valentine.ch www.valentine.ch Ed. 06/2018 Manuel original/Originalbetriebsanleitung /Original manual ©Valentine Fabrique SA,2018...
