ImageTech iMage A2 User Manual

iMage A2 Bluetooth Conference Speakerphone
Packing
1. iMage A2 Bluetooth Conference Speakerphone
2. Micro-USB cable
3. User manual
Welcome!
Thank you for purchasing iMage A2 Bluetooth Conference
Speakerphone; this instruction manual will guide you on how to start
using this product.

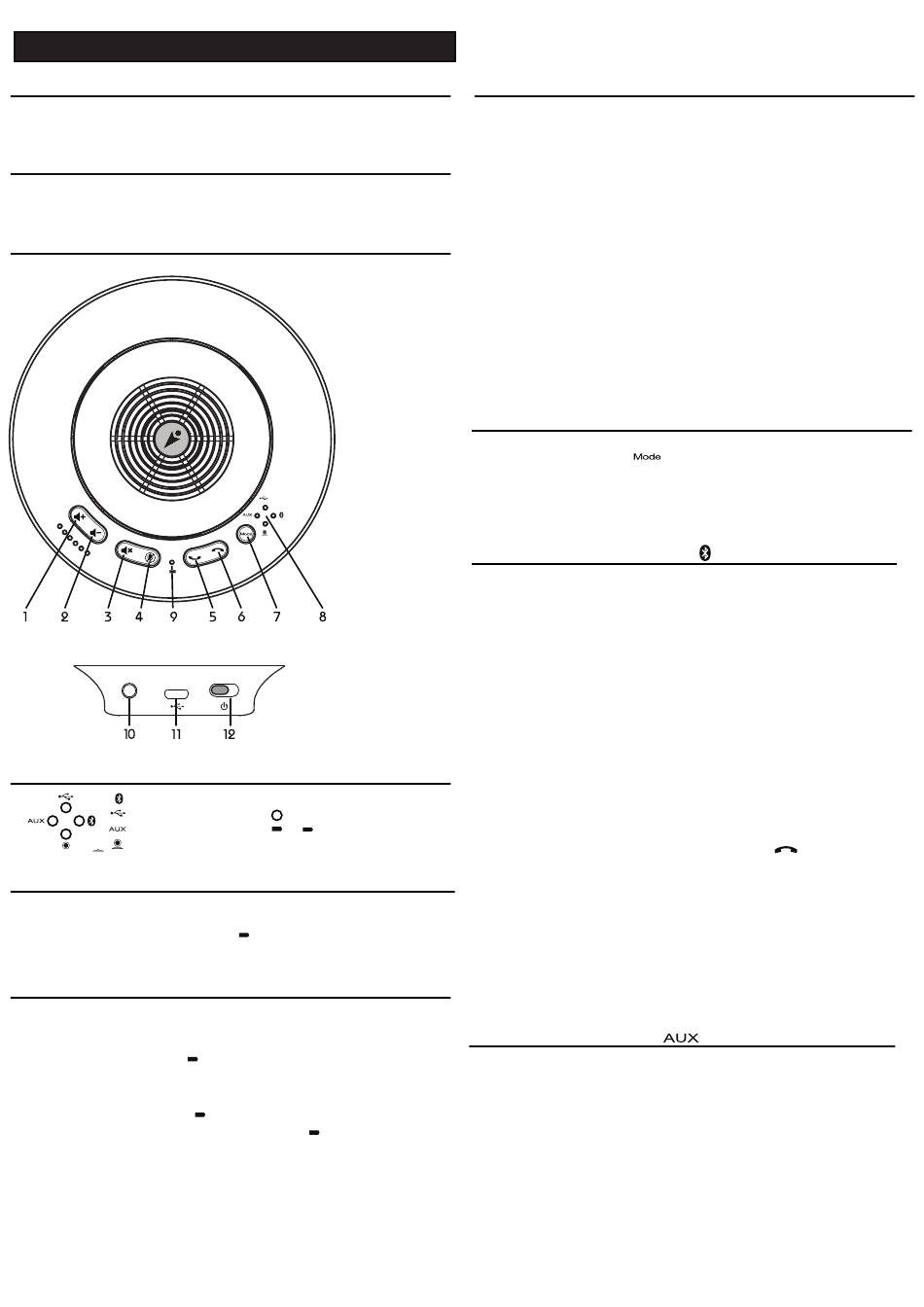

I/O Port buttons and slots
AUX IN
LED Indicator
Bluetooth Mode
USB Mode
AUX Mode
Adapter Mode
Charing First!
Please connect the USB cable to iMage A2 Bluetooth Conference Spea-
kerphone to charge it; it is recommended to fully charge the power for
approximately 6 hours (charge until
using it for the first time.
Power Status
When the power is turned on, if one of the four mode indicators on the
right has a blue light on, it means that the unit is currently powered-on.
Charging: When the orange
currently charging; when the orange light goes off, it means
that charging is complete.
Power remaining: If the blue
sufficient power remaining; if the red
means that power is low and requires charging.
1. Increase volume
2. Lower volume
3. Mute
4: Mute microphone
5: Answer
6: Hang up
7: Mode selection
8: Mode status
indicator
9: Power status
indicator
10: Audio In
11. USB Slot
12. Power switch
Power status/Charging
power indicator goes off) before
light is constantly on, it means that it is
light flickers it means that there is
light flickers it
Specification
Dimensions: 165mm X 165mm X 55mm
Product weight: 360±5g
Bluetooth version: Bluetooth v3.0+EDR/HFP/A2DP/WBS
Communication time: 6~8 hr.(BT)
Playback time: 6~8 hr.(BT), 8~10 hr.(AUX)
Standby time: 48~60 hr.(BT)
Battery capacity: 950mAH
Reception angle: Omni-Directional
Operating frequency: 2402MHz-2480MHz
Reception distance: 0.3~3m
Audio output: Bluetooth/USB
Audio input: Bluetooth/USB/AUX
Module type: GFSK
Antenna type: Build-in Antenna
Operating environment: 0 ~ 70
* Note: Data listed above were measured by actual testing in laboratories;
actual data may differ according to usage scenarios.
Start
Turn on the power and start iMage A2 Bluetooth Conference
Speakerphone; press the
mode you need.
Note: The battery life will significantly decrease if your device has not
been charged for a lone time.Therefore, we recommend you to charge
your device at least once every week
Mode selection: Bluetooth Mode
You can connect other portable devices or computer using
Bluetooth connection to make iMage A2 Bluetooth Conference
Speakerphone your multimedia speakerphone.
Connection method:
1. Select "Search for Bluetooth device" on the device you want to
connect.
2. You will see "iMage A2_XX (number differs according to the
different devices)"; click on it to perform pairing.
3. Pairing complete.
Blue light remains constantly on: Bluetooth device has successfully
connected with iMage A2 Bluetooth Conference Speakerphone, and
supports HFP and A2DP.
* If the device could not be paired, you can clear the previous
pairing data to pair it over again; press and hold
button for 3 seconds and wait until you hear the prompt then
release it to search for iMage A2 Bluetooth Conference
Speakerphone again for pairing.
* Please confirm the Bluetooth chip built in the computer before
connecting to a PC or notebook using Bluetooth Mode, and
download the related driver programs etc. from the original
manufacturer of the chip; please refer to the user manual of your
computer for details.
Mode selection: AUX Mode
You can make iMage A2 Bluetooth Conference Speakerphone an
expansion speaker by connecting it to a signal source using a 3.5Ø
audio cable.
Connection method: Connect the audio output of the device (PC, NB
etc.) to the Audio In socket(3.5Ø jack) of iMage A2 Bluetooth
Conference Speakerphone.
℃
(mode selection) button to select the
.
the hang up
