ImageTech MCU4 User Manual

iMageTech MCU4

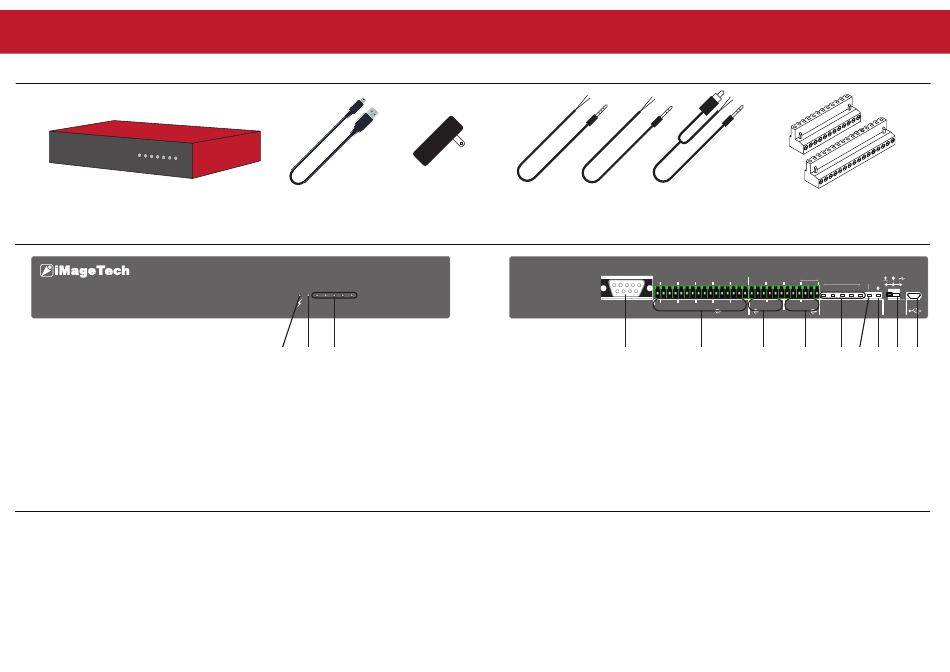

Packing:
iMageTech MCU4 unit
I/O Port & LED
1. Power indicator
2. Audio source status indicator
(Bluetooth/blue, USB/red, VCS/none)
3. Bluetooth connection status indicator (Blue)
4. System-reserved port
5. Audio Out (independent audio output)
Start
Step1 : Connect the USB adapter (No.12) to the iMageTech MCU 4 Wireless Meeting Speakerphone System.
Step2 : Press the "Bluetooth Speakerphone pairing button (No.8)" on the back for 3 seconds, and wait until "the Bluetooth connection status indicator
(blue)" rapidly flashes, then it can automatically be mapped to the iMage A1/A2 Bluetooth Conference Speakerphone. Simply pair five sets of
iMage A1/A2 Bluetooth Conference Speakerphones to S0, S1, S2, S3 and S4 in order (make sure that the iMage A1/A2 Bluetooth Conference
Speakerphone is set to "Adpter mode" before pairing).
Step3 : Select audio source (Bluetooth, USB or video mode). You can select Bluetooth to connect mobile devices or USB devices to the computer, or connect
a VCS using dedicated audio cables. If Bluetooth audio source is selected, please pair it using the Bluetooth audio source pairing button (No.10).
USB cable USB adapter
MCU 4
M S0 S1 S2 S3 S4
1 2 3
6. Audio In (connect to Audio Out of the VCS)
7. Audio Out (connect to the Audio In of the
VCS)
8. Bluetooth Speakerphone pairing button (S0,
S1, S2, S3, S4)
9. Console pairing button
Wireless Meeting Speakerphone System
VCS cable set
(Differs according to VCS model)
S4 S3 S2 S1
RESERVE INDIVIDUAL
4 5
10. Bluetooth audio source pairing button
11. Audio source selection switch (video, USB, Bluetooth)
12. USB power
Terminal port
(16pin+12pin)
+
-
G SLAVE CONSOLE
4 3 2 1 0
S0 1 2 1 2
INPUT OUTPUT PAIR SOURCE
6 7 8 9 10 11 12
