Summary of Contents for Intellinet 507356

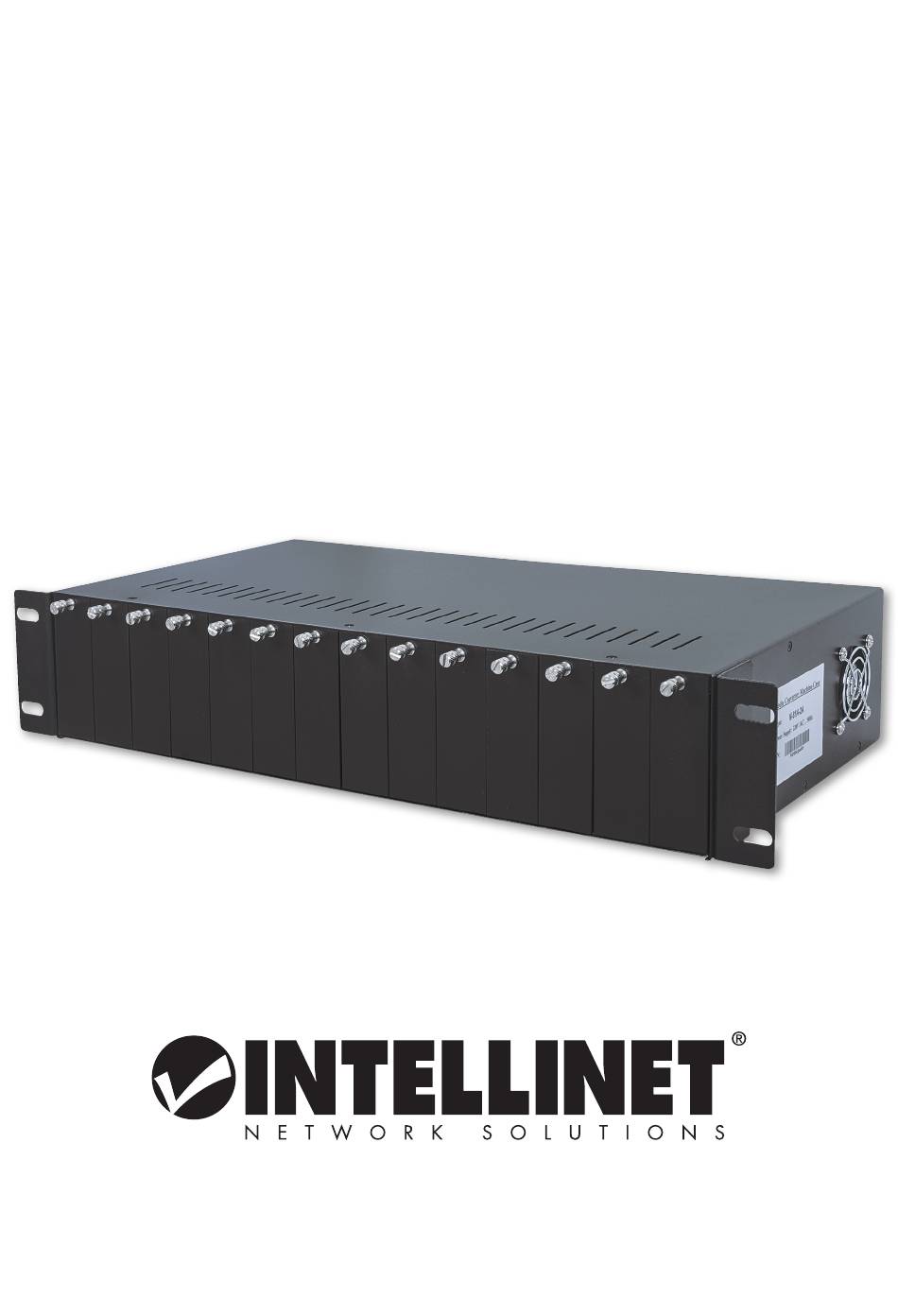

- Page 1 14-Slot Media Converter Chassis Instructions Model 507356 intellinetnetwork.com Important: Read before use. • Importante: Leer antes de usar. INT-507356-UM-1115-Rev5.01...
-
Page 2: Product Information

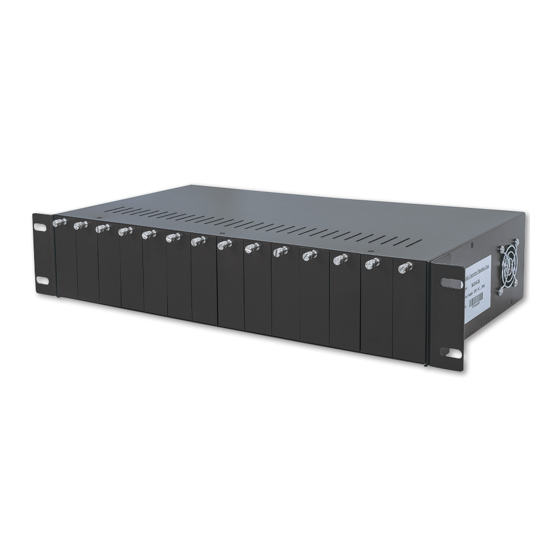

14-Slot Media Converter Chassis Instructions Product Information Product Overview The Intellinet Network Solutions 507356 Media Converter Chassis accommodates up to 14 media converters in a single unit. The media converter Chassis allows hot-swapping the media converters, and provides strong redundancy due to its two integrated power supplies. -
Page 3: Installation
14-Slot Media Converter Chassis Instructions Installation 1. Remove the slot cover by turning the screw counter clockwise. 2. Attach the carrier bracket to the media converter. First, unscrew the two screws on the side of the media converter housing, as indicated by the circles. -
Page 4: Maintenance
14-Slot Media Converter Chassis Instructions 4. Insert Media Converter into the chassis, and then tighten the screw by turning it clock-wise. 5. Install the chassis in a standard 19” rack or cabinet. Connect both power supplies with a power outlet and set them both to the on position. -
Page 5: Warranty Information
Italiano: Per informazioni sulla garanzia, accedere a intellinet-network.com/warranty. En México: Póliza de Garantia Intellinet — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. -
Page 6: Waste Electrical And Electronic Equipment
14-Slot Media Converter Chassis Instructions Waste Electrical & Electronic Equipment Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) English This symbol on the product or its packaging indicates that this product shall not be treated as household waste. -
Page 7: Regulatory Statements
La Déclaration de Conformité pour ce produit est disponible à l’adresset : Polski: Urządzenie spełnia wymagania dyrektywy R&TTE 1999/5/EC. Deklaracja zgodności dostępna jest na stronie internetowej producenta: Italiano: Questo dispositivo è conforme alla Direttiva 1999/5/EC R&TTE La dichiarazione di conformità per questo prodotto è disponibile al: intellinet-network.com... - Page 8 © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries.
