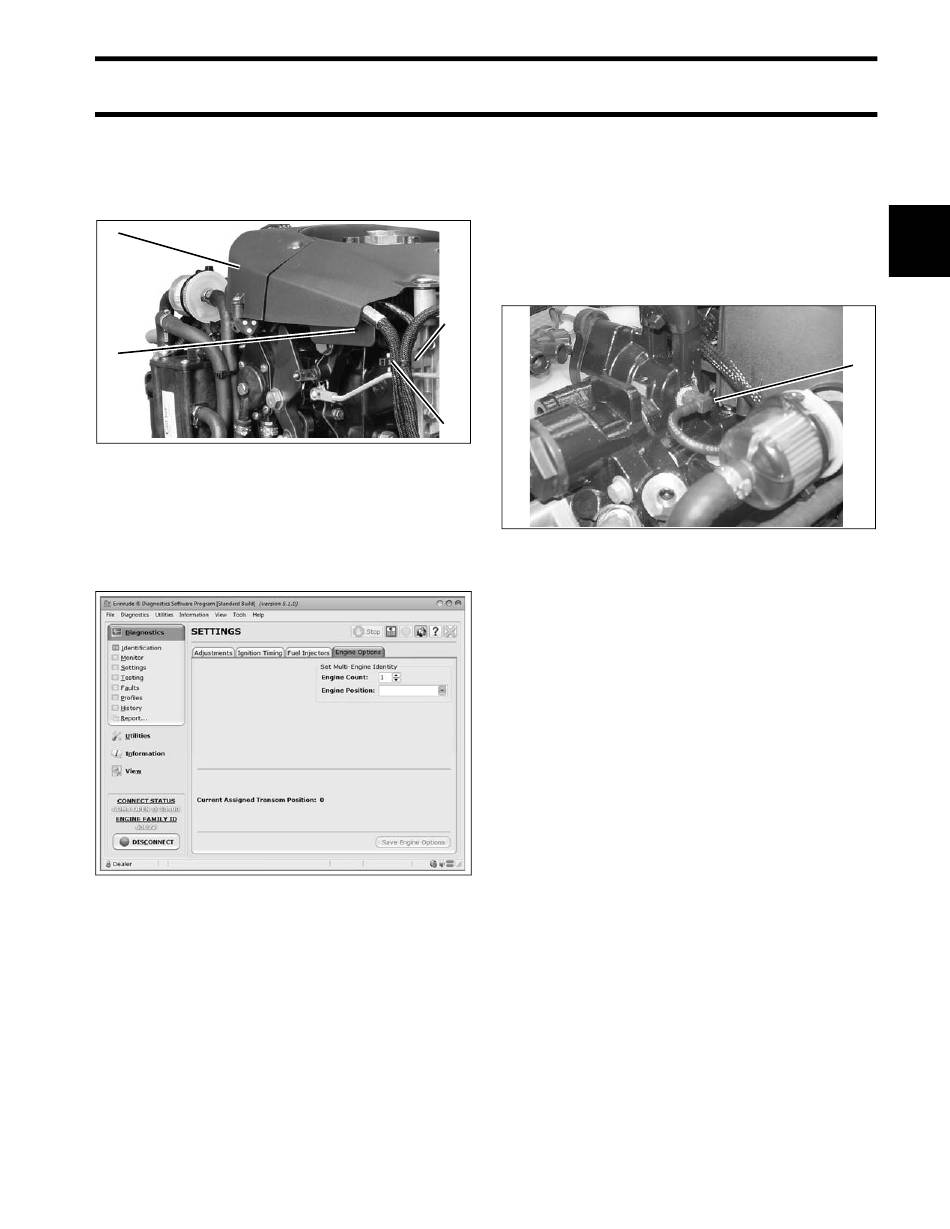

Route I-Command Ignit ion Harness throu gh wire
channel in flywheel cover . Inst all electrical cover.
Make sure bo th harnesses are in front o f the t ab
and tighten with tie strap.
1
2
1. Electrical cover
2. Wire channel
3. Tab
4. Tie strap
Use Evinrude Diagnostics software to adjust net-
work settings in th e EMM. From the Settings
screen, select Engine Options.
Engine Options Screen
OUTBOARD RIGGING CONNECTIONS

Water Pressure Gauge

To display engine water pre ssure, inst all a wa ter
pressure hose fitting in th
shown.
Use Pipe Sealant with Teflon on the threads of the
hose fitting. Refer to inst allation instructions sup-
plied with gauge.
3
4
006737
1. Water pressure hose fitting
For an I-Command water pressure display , sev-
eral water p ressure senso r kit s are a vailable.
Refer to the Evinrude/Johnson Genuine Parts
and Accessories catalog.
008563A
ROUTINE SERVICE
e cylind er block as
1
002461
23
