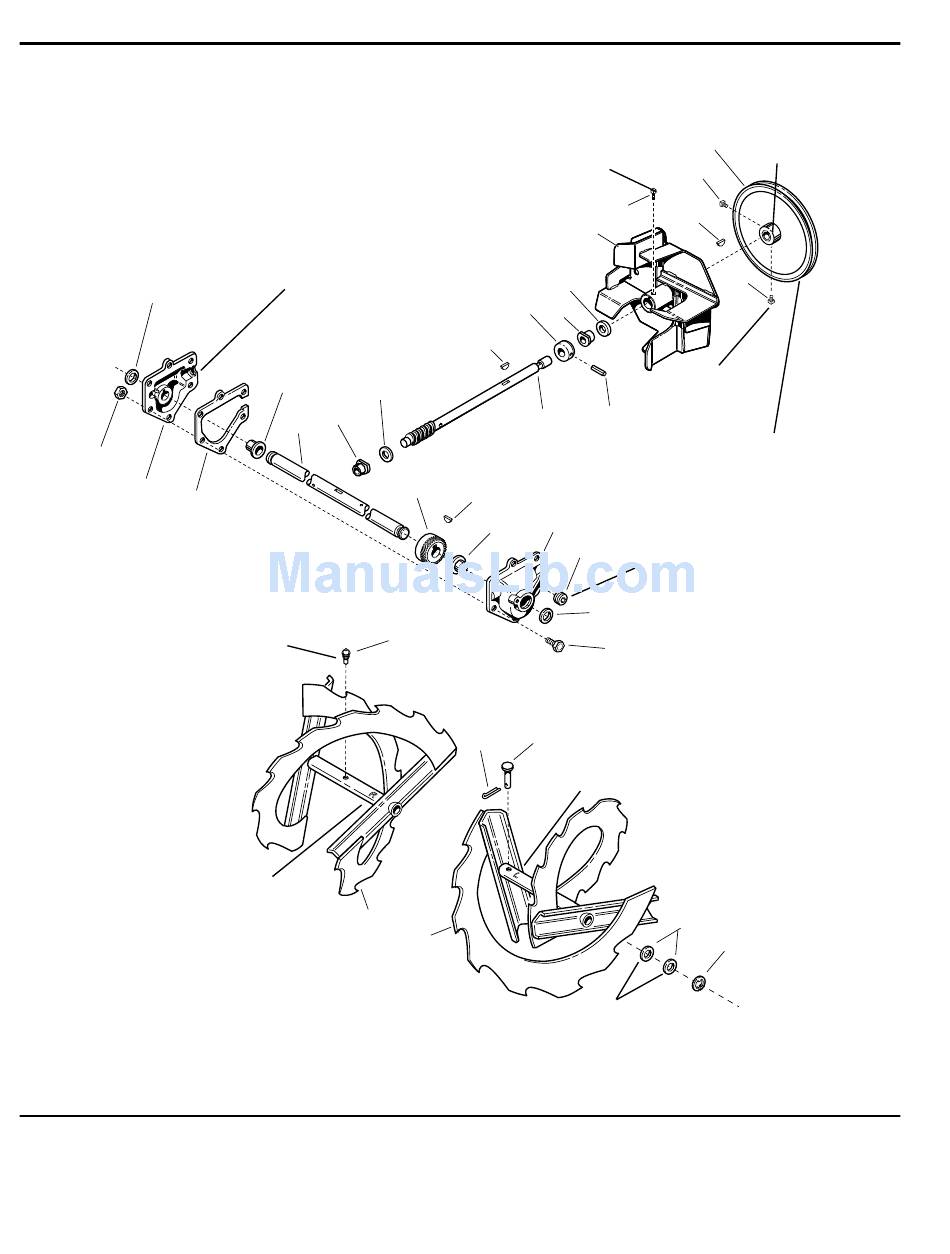

Auger Drive and Impeller Group

NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
13
14
15
16
Apply grease until it appears
at ends of auger assembly.
Auger stamped "R".
The above parts group applies to the following Mfg. Nos.:
1693980 555M, 5HP Manual Start
1693981 555M, 5HP Manual Start (Exp.)
1693982 755M, 7HP Manual Start (Exp.)
1693983 755E, 7HP Electric Start
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.
Apply a bead of gasket eliminator
into rear seal groove and flat surface
just past groove (Ref. 15 & 20) on both
halves. Also, apply to bushing bore surface.
Be careful not to over apply as excess will
cause lip seal to not function properly.
17
11
12
18
23
24
Torque to
30 - 44 ft-lbs.
5
6
9
7
3
10
19
3
20
17
21
27
26
Auger stamped "L".
25
Place 1 or 2 washers
per side as required.
10
1
Hub of pulley
to face auger.
2
4
3
2
Torque (Ref. 2) to
17 - 22 ft-lbs.
8
Locate pulley on worm shaft
(Ref. 10) so the belt is 1.94"
from rear of impeller housing.
Torque to
9 - 11 ft-lbs.
13
22
28
29
