Simplicity 755M Parts Manual page 10

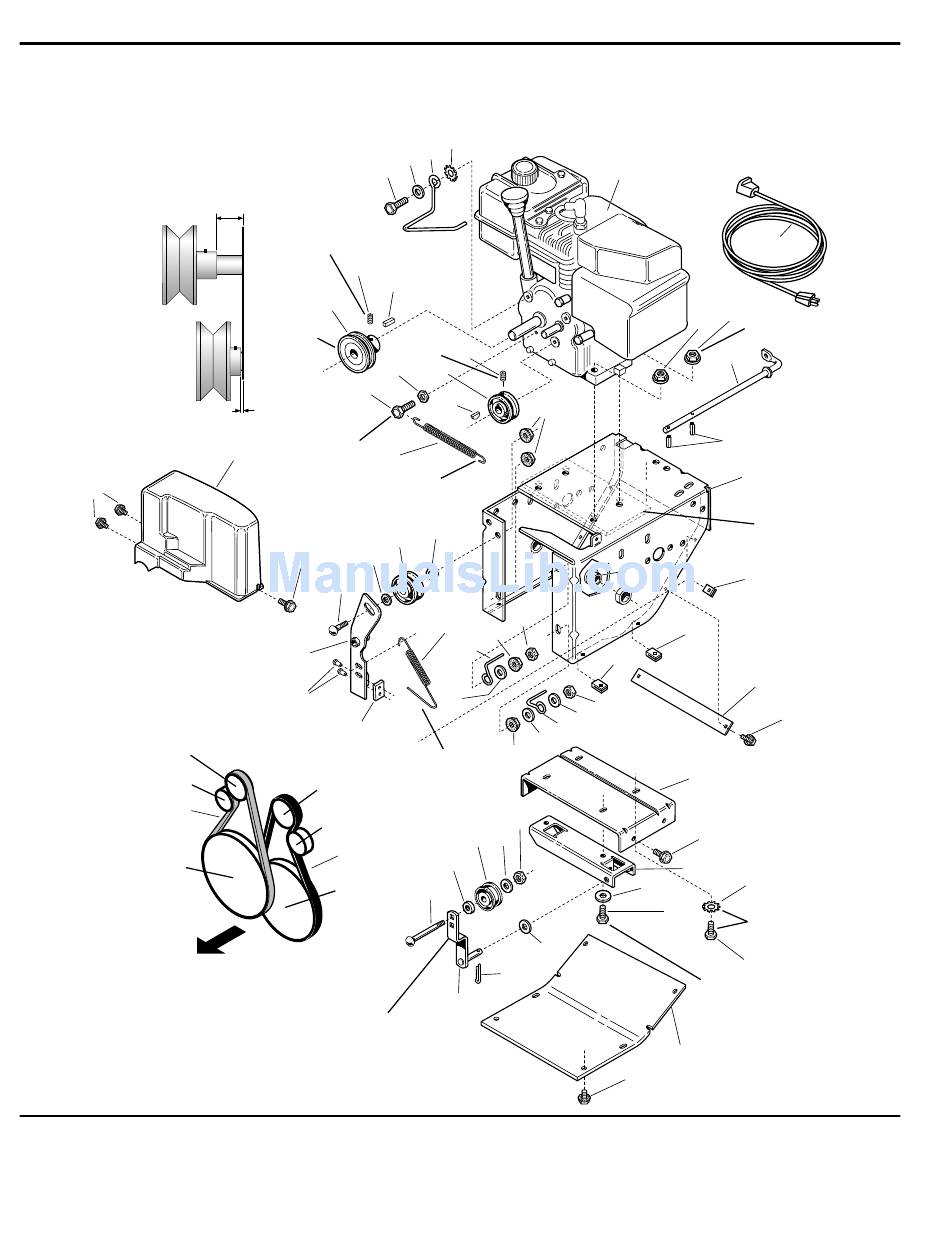

Frame and Engine Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Pulley
(Auger)
Engine Pulley
(Traction Drive)
1 2 7
Engine Pulley
(Auger)
Idler Pulley
34
Auger Pulley
FRONT
(Auger)
The above parts group applies to the following Mfg. Nos.:
1693980 555M, 5HP Manual Start
1693981 555M, 5HP Manual Start (Exp.)
1693982 755M, 7HP Manual Start (Exp.)
1693983 755E, 7HP Electric Start
