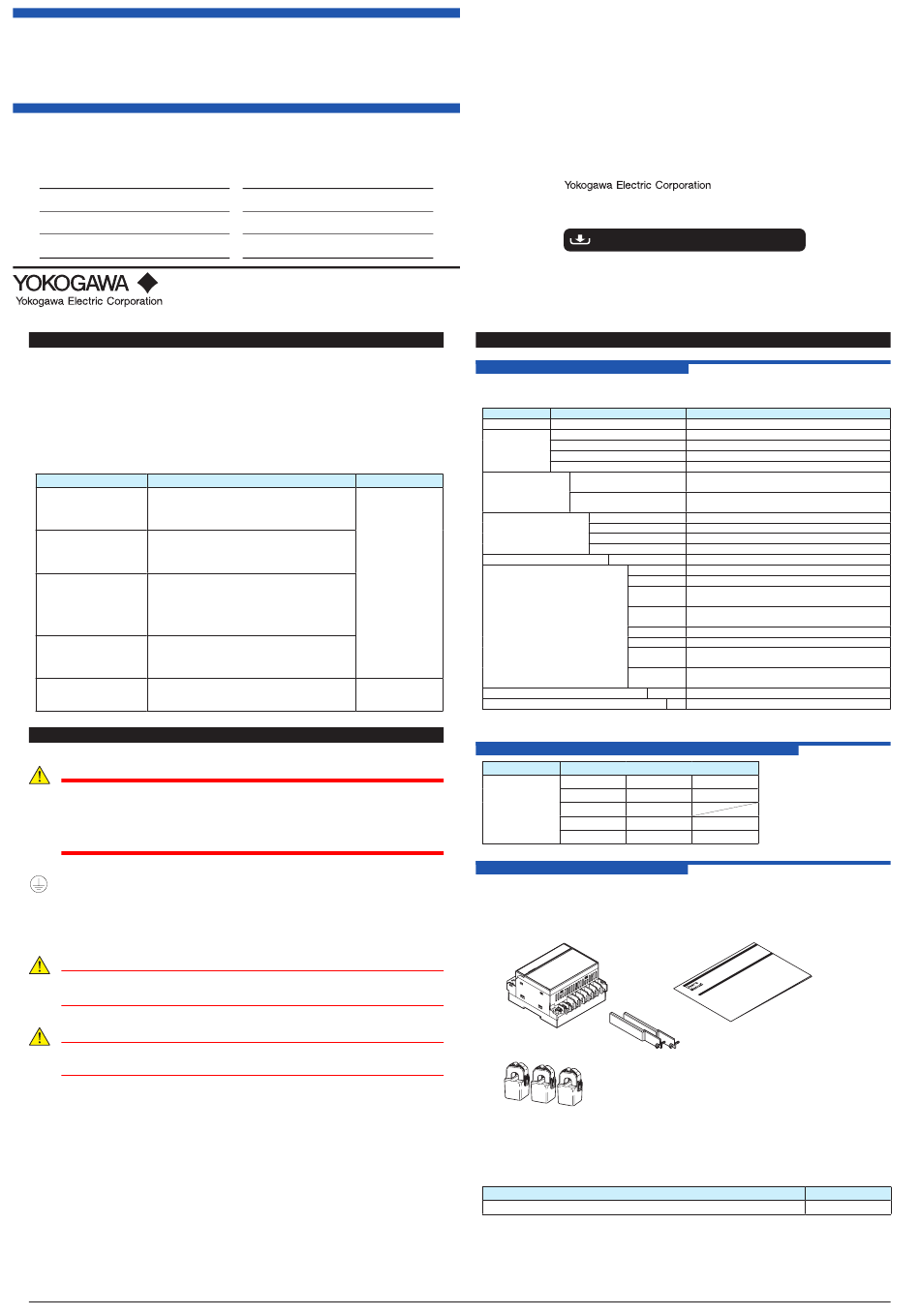

YOKOGAWA UPM101 User Manual

User's
Model UPM101
Universal Power Monitor
Manual
(With Dedicated CT)
<Installation>
This manual describes the operating precautions, mounting procedures, wiring
procedures and other information regarding the UPM101 Universal Power Monitor.
In this manual, illustrations related to the mounting procedures show the UPM101
which has display function. In the related user's manuals, illustrations related to
the descriptions of user operations show the UPM100 which has display function.
Introduction ------------------------------------- P. 1
1. For Safe Use ----------------------------------- P. 1
Product Specifications and the
2.
Package Contents ---------------------------- P. 1
Introduction
Thank you for purchasing our UPM101 Universal Power Monitor. The user's manuals listed
below are supplied with the UPM101. Read the manuals thoroughly before using the UPM101
to ensure correct and safe use. After reading the manuals, always keep them in an easily
accessible convenient place for later reference.
Related User's Manuals and Main Information Included in Manuals
Product user's manuals can be downloaded or viewed at the following URL. To view the user's
manual, you need to use Adobe Reader 7 or later by Adobe Systems.
URL: http://www.yokogawa.com/ns/powercert/im/
Title
This manual describes operating precautions,
mounting procedures, and external wiring procedures.
Installation
It also presents the main UPM101 specifications
(including optional specifications).
This manual describes the setting procedures and
setting ranges for various parameters (VT ratio, CT
Initial Setup Operations
ratio, etc.), which pertain primarily to UPM100 and
UPM101 which have display function.
This manual describes the display procedures and
measuring ranges for various measured values (active
Measured Value Display energy , etc.), which pertain primarily to UPM100
Operations and UPM101 which have display function. It also
provides information on various error messages and
procedures for handling errors.
This manual provides illustrations showing the flow
of measured value display and parameter setting
Parameter Maps
display. It also presents lists of the measuring ranges
and parameter setting ranges.
Model UPM100, UPM101 This manual describes the communication functions
Universal Power Monitor of UPM100 and necessary information for creating
Communication Functions communication program.
1. For Safe Use
The following symbols are indicated on the product to ensure safe use.
This symbol on the product indicates that the operator must refer to an
explanation in the user's manual in order to avoid the risk of injury or death of
personnel or damage to the instrument. The manual describes how the operator
should exercise special care to avoid electric shock or other dangers that may
result in injury or loss of life.
This label denotes that a protective ground terminal is necessary . Be sure to
ground this terminal before operating the instrument.
The following symbols are used in the user's manuals.
CAUTION
Indicates that operating the hardware or software in a particular manner may
damage it or result in a system failure.
CAUTION
Draws attention to information that is essential for understing the operations and/
or features of the product.
IM 77C01J01-00EN
3. Installation Procedures ---------------------- P. 2
4. External Wiring --------------------------- P. 2-P.3
5. UPM101 Main Specifications --------------- P. 4
IM 77C01J01-00EN
2nd Edition: Mar. 2019 (YK)
Description Document Number
IM 77C01J01-00EN
IM 77C01H01-10EN
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/powercert/im/
2. Product Specifications and the Package Contents
2.1 Model and Specifications Check
Make sure the model and suffix codes shown on the name plate attached to the UPM101
match your order.
Model Suffix Code
UPM101 -x x x x
-1
Phase and Wire -2
Type
-3
-4
4
Rated Input Voltage/
Current
6
0
1
Output Function
2
3
Optional Communication Function 0
Optional Measuring Function
Power Supply
Fixed Code
1: 200V (100V + 100V) for single-phase 3-wire.
2: The unit is "kvarh" or "varh" when reactive power is selected.
2.2 UPM101 Rated Power (Secondary-side Rated Power)
Rated Power Rated Input Voltage/Current
Suffix Code
1
Phase and Wiring 2
3
4
2.3 Checking the Package Contents
The UPM101 is carefully inspected before shipping. When you receive your UPM101, check its
exterior to see if there is any damage. Also make sure a complete set of the following items is
included in the package.
(1) UPM101 (3) User's Manua
(2) Dedicated CT
1 CT for single-phase 2-wire
2 CTs for single-phase 3-wire or three-phase 3-wire
3 CTs for three-phase 4-wire
(1) UPM101 (main unit): 1
(2) Dedicated CT : 1 CT for single-phase 2-wire
2 CTs for single-phase 3-wire / three-phase 3-wire
3 CTs for three-phase 4-wire
(3) User's Manuals: 1 set
Precautions on the Use of the Power Monitor Series
(4) Terminal covers: 2 (with M3 screws) (The covers are attached to the UPM101 when
shipped.)
1
Description
x -2 0 Universal Power monitor (with dedicated CT)
Single-phase 2-wire (with dedicated one CT)
Single-phase 3-wire (with dedicated two CTs)
Three-phase 3-wire (with dedicated two CTs)
Three-phase 4-wire (with dedicated three CTs)
220V/5A AC
(phase voltage 127V AC for three-phase 4-wire)
440V/5A AC
(phase voltage 277V AC for three-phase 4-wire)
Without display function, without pulse output
With display function, without pulse output
Without display function, with pulse output
With display function, with pulse output
None (RS-485 communication is provided as standard)
0 Integral resolution kWh
1 Integral resolution kWh / power factor
Integral resolution kWh / reactive power, integrated
2
2
reactive power
Integral resolution kW 2 / power factor, reactive power,
3
integrated reactive power
4 Integral resolution Wh
5 Integral resolution Wh / power factor
Integral resolution Wh / reactive power, integrated
2
6
reactive power
Integral resolution Wh / power factor, reactive
2
7
power, integrated reactive power
-2 85 to 264V AC 50/60Hz
0 Always "0"
4 6
1000W 2000W
1000W
2000W 4000W
2000W 4000W
(Precautions on the Use of the Power Monitor Series)
(4)Terminal Covers
They are attached to the UPM101 when shipped.
Name
1
Document Number
IM 77C01H01-91Z1
