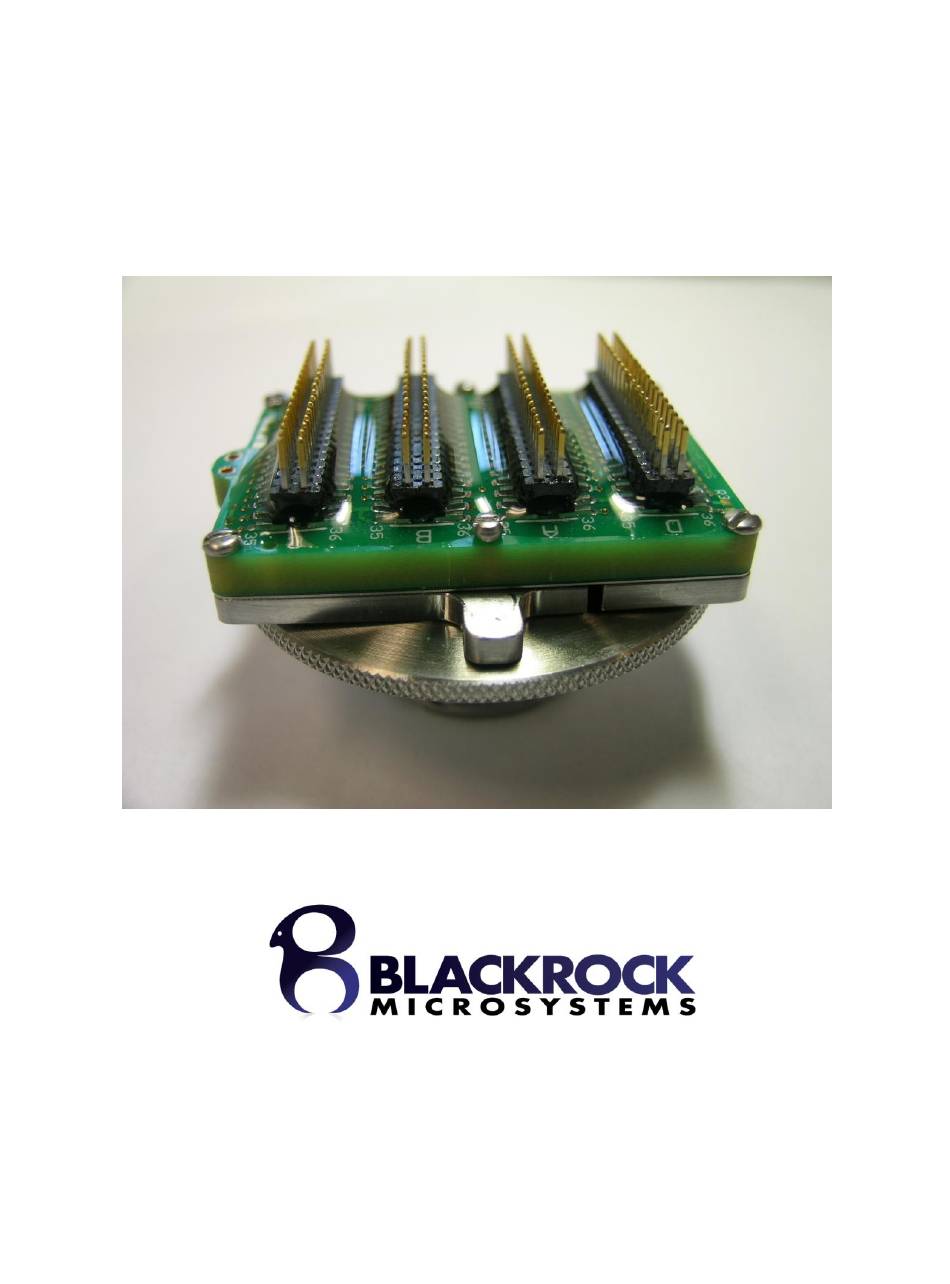

- Page 1 Filament Film NeuroPort® Plug ’ ANUAL 1.00) EVISION Blackrock Microsystems 391 Chipeta Way, Suite G Salt Lake City, UT 84108 Tel: (801) 582-5533 www.Blackrockmicro.com...
- Page 2 Instruction Procedure to Replace Fuzz Button NeuroPort Plug with a Filament Film NeuroPort Plug The instructions below is a procedure to replace the existing fuzz button NeuroPort Plug with the beta sample of Filament Film NeuroPort Plug on the Patient Cable (P/N: 4463). 1) Gently pull the existing NeuroPort Plug (P/N: 4152) from the head stage housing of the Patient Cable Assembly (P/N: 4463).
- Page 3 3) Take the beta sample of the Filament Film NeuroPort plug and lay it on the head stage housing of the Patient Cable such that key feature of the Filament Film NeuroPort plug aligns through the slot on the housing of the head stage as shown in the figure below. 4) Gently push the Filament Film NeuroPort plug onto the head stage housing of the Patient Cable.
- Page 4 5) Make sure the black conductive rods on the sides of the head stage housing are touching the flanges of the Filament Film NeuroPort plug as shown in the figure below. 6) Clean the surface of the LGA on the pedestal using a medical approved wet cotton swab. 7) Gently align all the 3 alignment pins of the Filament Film NeuroPort plug with the holes on the pedestal assembly as shown in the figure below.
- Page 5 8) Gently screw the Filament Film NeuroPort plug onto the pedestal until it could turn no further. Do not over tighten the assembly as it could result in damaging the components inside. 9) Contact engineering department at BlackRock Microsystems for additional assistance or other issues concerned.
