FONESTAR EF-335 Instruction Manual

Pendant speaker with 100 v line transformer 4o
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

EF-335
PENDANT SPEAKER WITH
100 V LINE TRANSFORMER
AND 4Ω
N Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF-335 and is the answer not in the manual?

Questions and answers

Related Manuals for FONESTAR EF-335

Summary of Contents for FONESTAR EF-335

  • Page 1 EF-335 PENDANT SPEAKER WITH 100 V LINE TRANSFORMER AND 4Ω N Instruction Manual...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

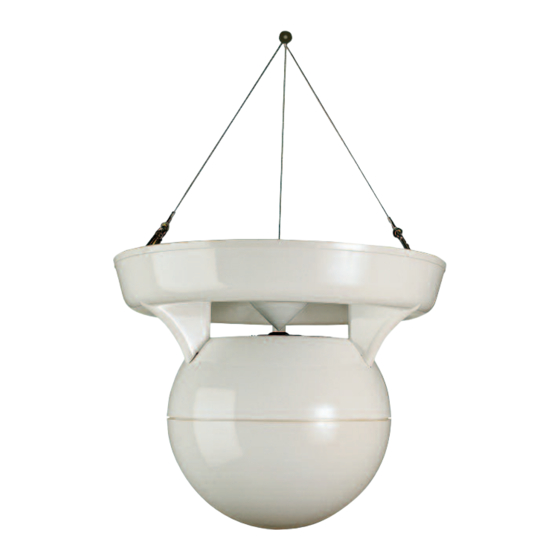

  • Page 3 All rights reserved by FONESTAR, S.A. DESCRIPTION The FONESTAR pendant speaker model EF-335 is an excellent combination of coaxial speaker with high quality tweeter and a reflector which achieves 360° omnidirectional dispersion horizontally, with high quality sound. This makes it suitable for professional audio installations in sports centres, stadiums, factories, churches, warehouses, shopping centres, etc.

  • Page 4: Connection Instructions

    CONNECTION INSTRUCTIONS The FONESTAR pendant speaker model EF-335 can be connected to the amplifier with a 100 V line or 4Ω. 100 V line connection 1. The speaker is prepared to work in a 100 V line. 2. Depending on the required power, 35, 15 or 7W, connect the amplifier output 100 V line to the transformer terminals.

  • Page 5: Specifications

    SPECIFICATIONS EF-335 CHARACTERISTICS Pendant speaker with 100 V line transformer and low impedance. POWER 35 W SPEAKER ” coaxial with dome tweeter RESPONSE 80-17 000 Hz IMPEDANCE High Z 100 V line: 285 Ω (35 W) 670 Ω (15 W) 1430 Ω...
  • Page 6 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
