Simplicity Snow Plow/Dozer Blade Operator's Manual page 9

7. Insert front of push bar (A, figure 7) into pivot
frame on rear of blade. Then install king pin (C)
down thru holes in hitch and pivot frame. Secure
king pin (C) with spring clip (D).
8. Using king pin as the pivot, swivel push bar to
align holes for pivot pin (E). Then install pivot pin
downward thru holes in blade and push bar. The
pivot pin can be installed in any of three holes,
depending on desired blade angle.
lift rod as shown in figure 8. (The
exploded view illustration is shown in figure 1.)
Insert tip of rod guide (A, figure 8) thru hole in lift
arm (B) of push bar. Trap the rod guide on each
side of lift arm with spring clips (C and D).
10. Connect rear of lift rod to lift lever mounted on
tractor using the spring clip.
42" Snow Plow/Dozer Blade

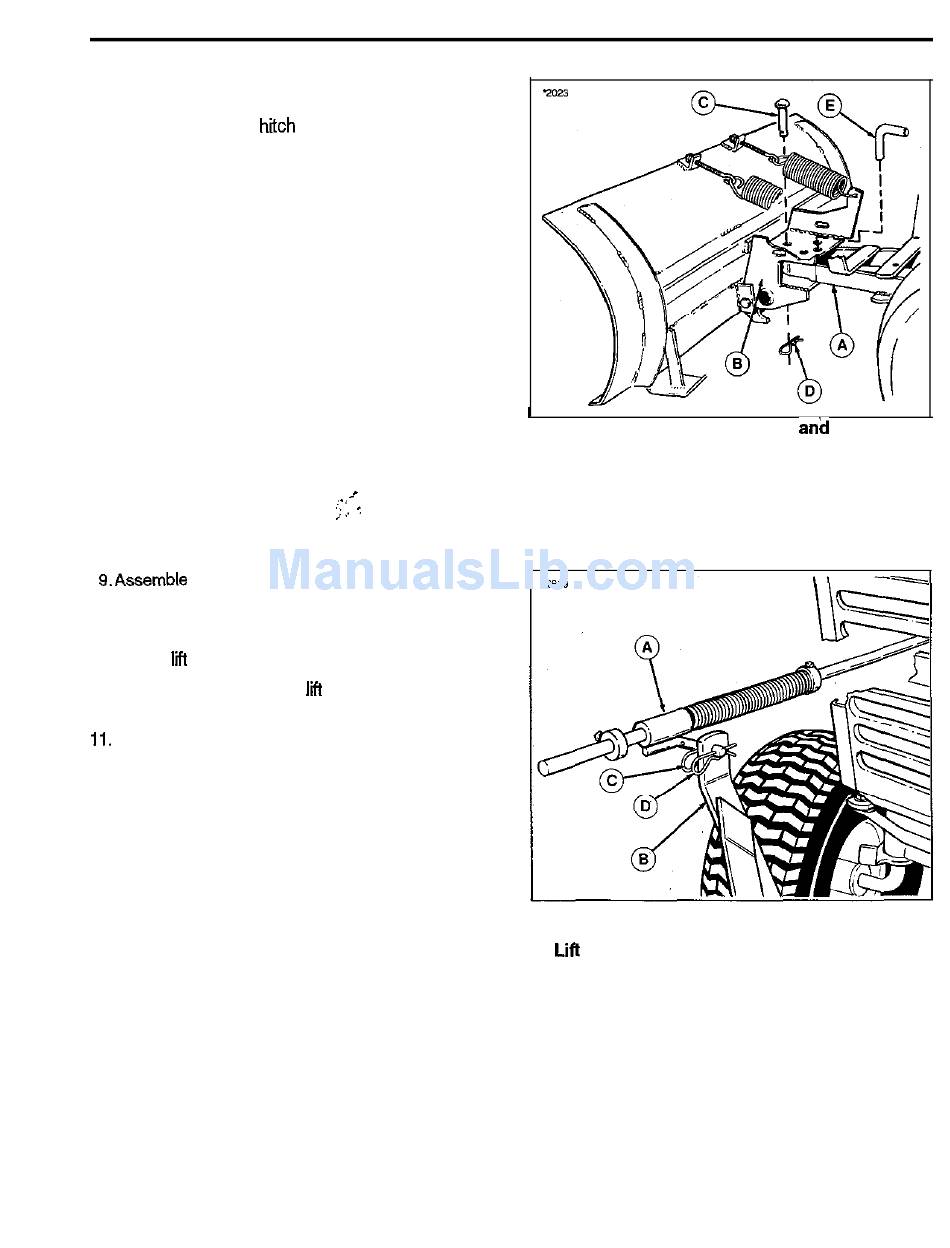

Figure 7. Dozer Blade Assembled and Installed
A. Push Bar
B. Pivot Frame
C. King Pin
Figure 8.
A. Rod Guide
B. Lift Arm (Push Bar)
C. Outer Spring Clip
D. Inner Spring Clip
7
D. Spring Clip
E. Pivot Pin
