Fireye 60-2887-4 Installation Instructions

Replacement electronics assembly for simplicity cex scanner

133-771

July 25, 2016

60-2887-4

Replacement Electronics Assembly

For Simplicity CEX Scanner

INSTALLATION INSTRUCTIONS

---------------------------------------------------------------------------------------------------------------------

Removing the old Scanner Electronics Assembly

1. Turn off all electrical power to the 65UV5-1004ECEX -Series scanner.

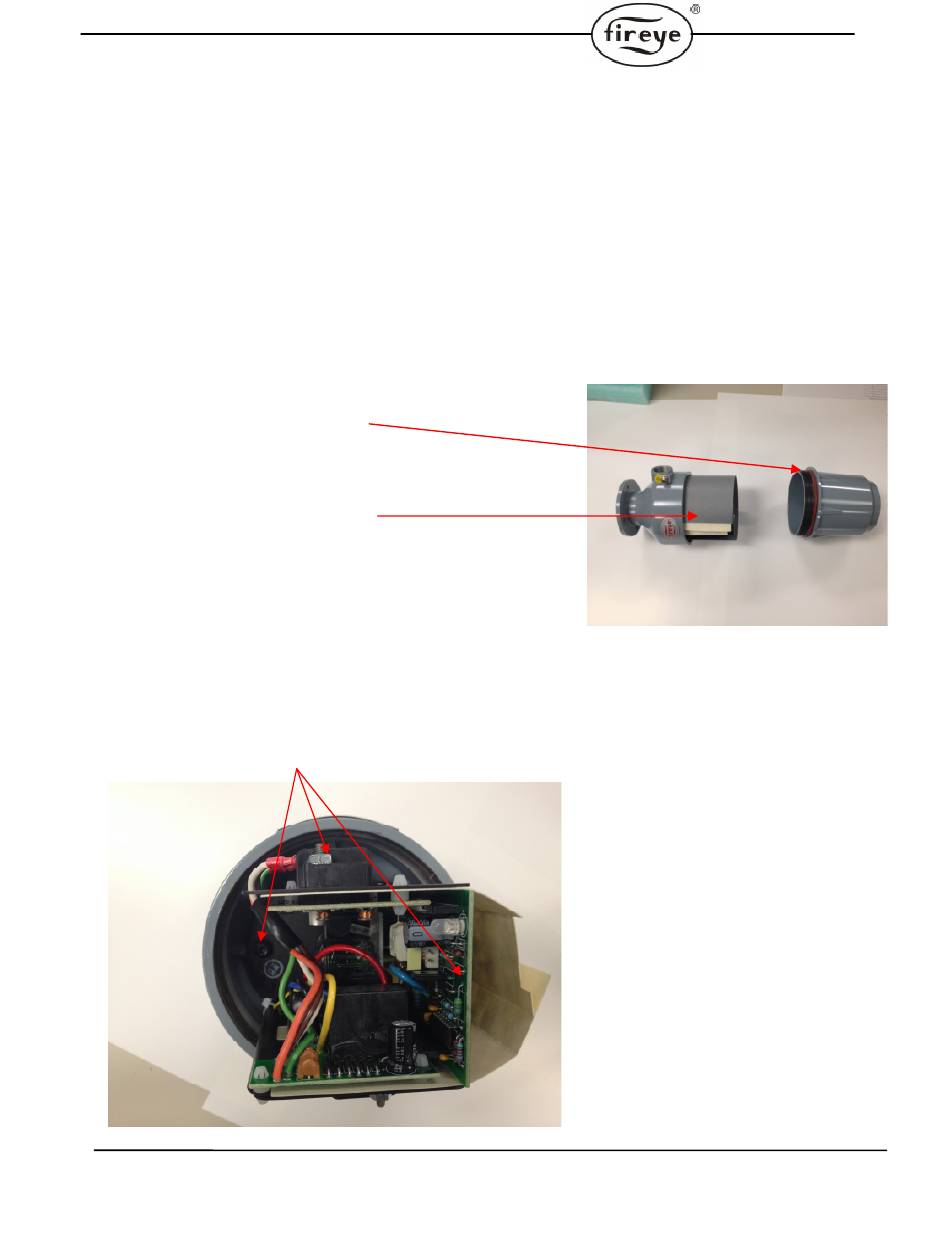

2. Remove the CEX housing cover.

3. Remove the fiber insulating paper from the electronics

or the housing cover, and set aside.

4. Record wire locations on the two terminal blocks. Then disconnect wires from the terminal

strips on the electronics assembly. (Refer to Simplicity scanner bulletin CU-104 for complete

wiring information.)

5. With a 5/32" x150 Allan wrench, loosen and remove the three Allan-head bolts and remove

the electronics assembly.

Table of Contents

Do you have a question about the 60-2887-4 and is the answer not in the manual?

Page 1 133-771 July 25, 2016 60-2887-4 Replacement Electronics Assembly For Simplicity CEX Scanner INSTALLATION INSTRUCTIONS --------------------------------------------------------------------------------------------------------------------- Removing the old Scanner Electronics Assembly 1. Turn off all electrical power to the 65UV5-1004ECEX -Series scanner. 2. Remove the CEX housing cover. 3. Remove the fiber insulating paper from the electronics or the housing cover, and set aside.
Page 2 9. Reconnect the scanner cable wires to the two terminal strips on the electronics assembly. 10. Position the original fiber insulating paper around the electronics (Refer to picture in step 3), and reinstall the CEX housing cover. Fireye 133-771 Rev.1 3 Manchester Road...
