DESCRIPTION

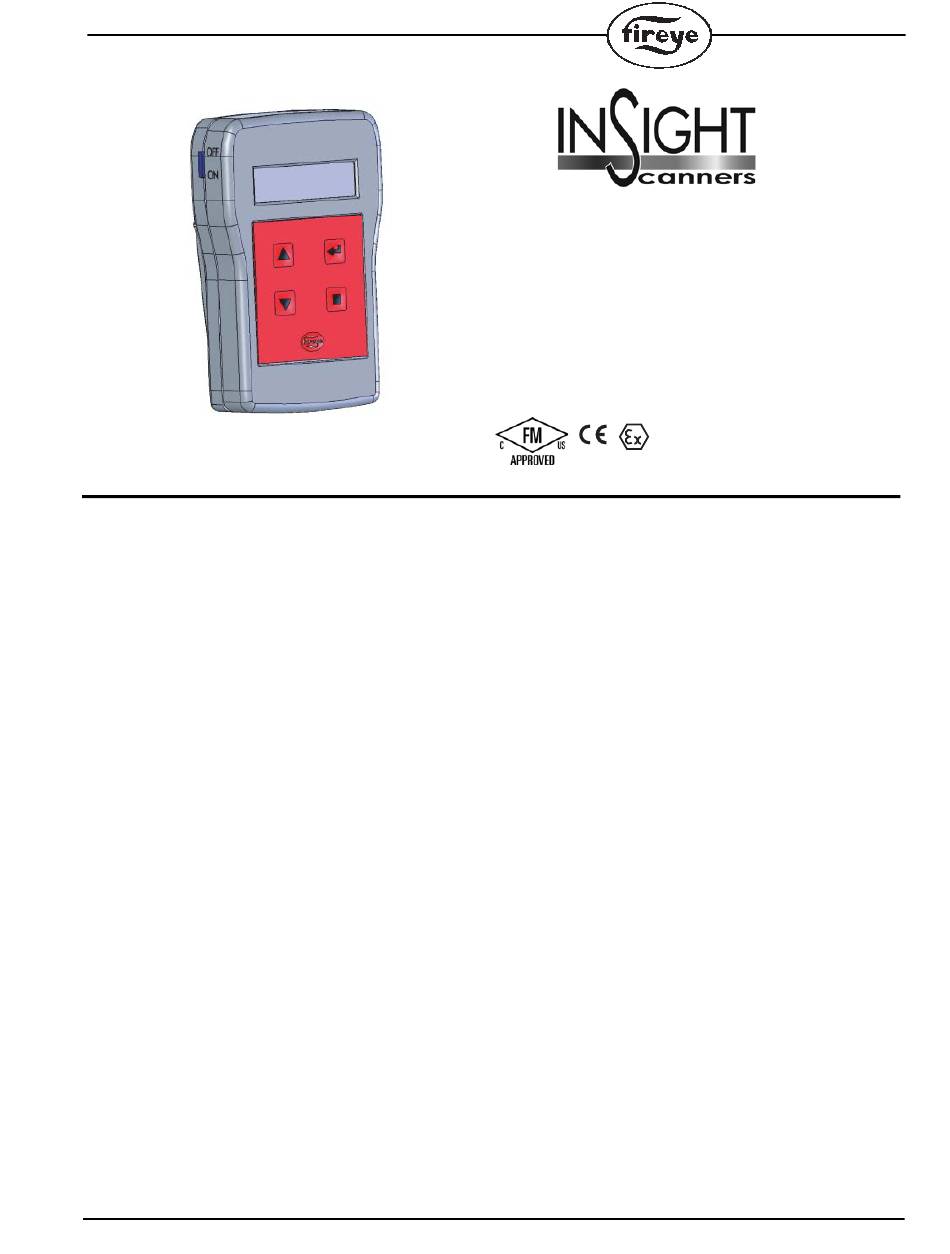

The 95WIHH-2 Wireless Handheld Commissioning Tool is an intrinsically safe, wireless IrDA
ready (Infrared Data Association) device designed to be used with InSight II scanners. The device
can be used to remotely navigate the InSight II scanner's menu, set and review operating parameters,
and view error messages and alerts.
The device offers an IrDA automatic address discovery feature that enables an end user to quickly
establish a communication link with the target scanner without having prior knowledge of the scan-
ner's address. The address discovery feature is particularly useful in applications where multiple
scanners are deployed.
HANDHELD
COMMISSIONING TOOL
P/N 95WIHH-2
II 1 G Ex ia IIC T4
CLASS I, DIV 1 GROUPS A, B, C, D T4A
Ta= -20° to 40°C
AEx ia IIC T4 Ta= -20°C to 40°C
1725
FM09ATEX0066
133-735
MAY 6, 2013
II
WIRELESS
1
Advertisement
Table of Contents
Related Manuals for Fireye Insight II
Summary of Contents for Fireye Insight II
- Page 1 The 95WIHH-2 Wireless Handheld Commissioning Tool is an intrinsically safe, wireless IrDA ready (Infrared Data Association) device designed to be used with InSight II scanners. The device can be used to remotely navigate the InSight II scanner’s menu, set and review operating parameters, and view error messages and alerts.
-
Page 2: Operation
InSight II scanner when the IrDA communication addresses match. By default, the handheld communication tool is programmed to communicate on IrDA address 247. Please consult the bulletin for the InSight II scanner on how to manually review or change the IrDA communication address. -
Page 3: Specifications
DIMENSIONS FIGURE 1. TYPE 95WIHH-2 WIRELESS HANDHELD COMMISSIONING TOOL 36.7 1.44 80.8 3.18 27.9 1.10 4.92 Dimensions: inch [mm] SPECIFICATIONS MECHANICAL: ABS Plastic Housing Material: Gray Color: IP 40 Environment: Operating Temperature: -4°F to 104°F (-20°C to 40°C) -4°F to 140°F (-20°C to 60°C) Storage Temperature: 0% to 85% relative humidity, non condensing Humidity:... - Page 4 THE CONFIG MENU FIGURE 2. CONFIG MENU LOOP Config Menu Press simultaneously Keypad Legend DISPLAY MENU Main UP Key SELECT TO ENTER > Screen (Scrolls through menu, counter clockwise) DOWN Key (Scrolls through menu, clockwise) PROGRAM Key Firmware Rev. xxxx SELECT Key Code CRC...
-
Page 5: Battery Compartment
This is read-only. It shows the firmware revision level of the handheld commissioning tool. Code CRC This is read-only. The CRC value is passed periodically to the InSight II scanner as part of the hand-shaking data communication protocol. IrDA COMS ADDR This is the communication address menu. - Page 6 FIGURE 4. COMMISSIONING TOOL LINE OF SIGHT INSIGHT II * Typical Maximum distance with fresh batteries...
-
Page 7: Ordering Information
ORDERING INFORMATION PART NUMBER STRUCTURE PART NUMBER DESCRIPTION BULLETIN 95WIHH-2 InSight II Wireless Handheld Commissioning Tool. 133-735... - Page 8 Make sure link distance or angle does not exceed specification outlined in Figure 4. • Weak batteries can slow down communication. Replace batteries accordingly. 4) Keypad doesn’t work • Press the “Fireye” button • Slide power switch ON ↔ OFF 5) Unit goes to sleep quickly or unit won’t go to sleep •...
- Page 9 Blank Page...
- Page 10 Fireye warranty, as stated it its General Terms and Conditions of Sale, pertains only to the Fireye products and not to any other equipment or to the combined system or its overall performance.
