ADJUSTING THE EYECUPS

The Sightmark Solitude Laser Rangefinding
Binoculars are equipped with twist-up eyecups
which provide a custom fit for proper eye relief even
for those who wear glasses. If not wearing glasses,
leave the eyecups in the up position. If wearing
glasses, leave the eyecups in the down position.

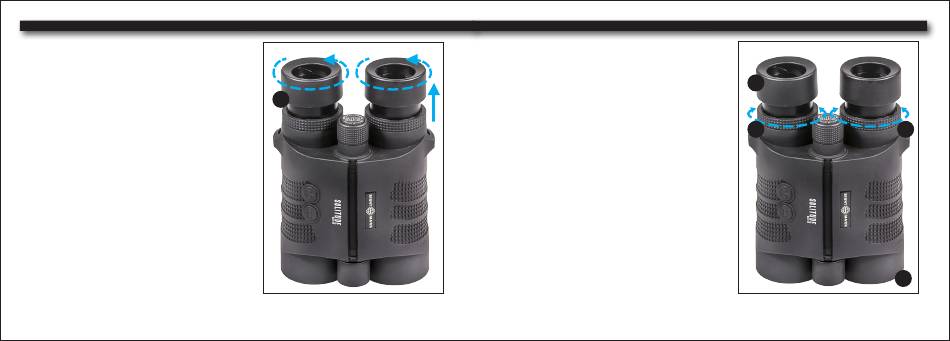

To adjust the twist-up eyecups:
1 Rotate the eyepiece (5) counter-clockwise to
extend the eyecup. The eyecup will click into the
first position. Rotate again counter-clockwise to
fully extend the eyecup in the second and final
position.
2 Rotate the eyepiece clockwise to retract the
eyecup.
6
5
SETTING DIOPTER ADJUSTMENT
AND DISPLAY FOCUS
Before using the Sightmark Solitude Laser
Rangefinder Binoculars, the binocular's diopter
adjustment and display focus should be set in order
to ensure a sharp, focused image.
To set the binocular's diopter:
1 First, pull or push the binoculars apart or together
in order to correctly set the interpupillary
distance for your eyes. Do this until the view is a
single circular image.
2 Next, locate the display focus ring (7) at the base
of the right eyepiece (5). While looking through
the binocular adjust this ring until the reticle (9) is
clear and crisp.
3 Next, locate the diopter adjustment ring (6) at
the base of the left eyepiece (5). While looking
through the binoculars at an object at least 15
yards away, adjust the diopter adjustment ring
until the image is sharp and focused.
Note:
There is no focus adjustment for viewing different distances as this is a fixed focus binocular. Also diopter
and display focus adjustment does not need to be changed unless the user of the binocular changes.
5
7 6
9
7
