Summary of Contents for Sight mark Solitude SM12003

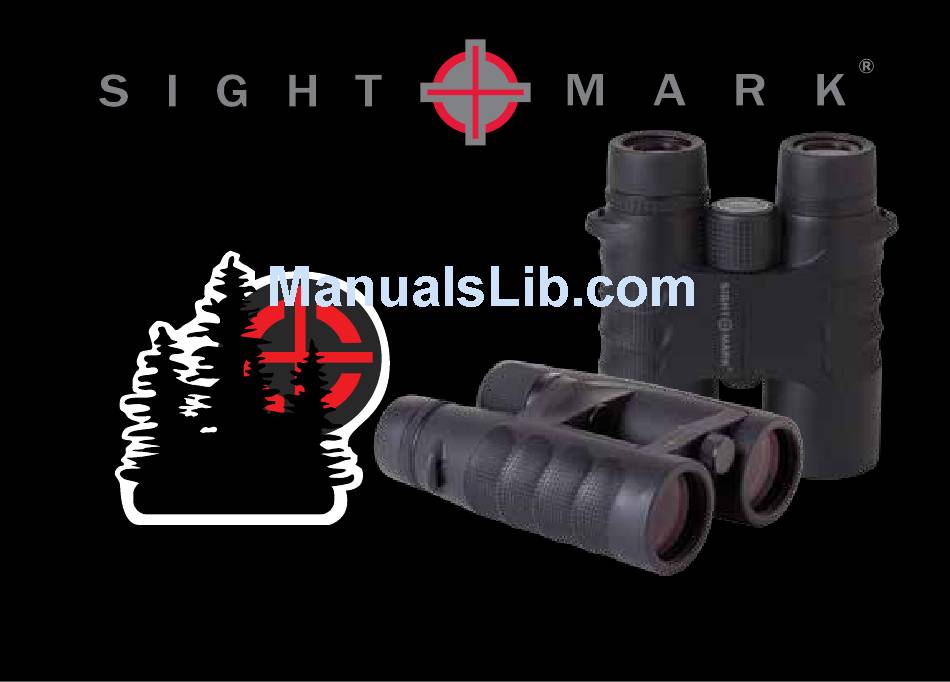

- Page 1 USER MANUAL USER MANUAL SOLITUDE se r ies SM12001, SM12002, SM12003, SM12004, SM12101, SM12102, SM12103 English...
- Page 2 ABOUT SIGHTMARK ® Sightmark offers a wide range of products that include red dot scopes, reflex sights, rangefinders, riflescopes, laser sights, night vision, binoculars and award-winning flashlights and boresights. Sightmark products are inspired by military and law enforcement applications. All products are designed to be the most effective weapon accessories possible. MAKE YOUR MARK www.sightmark.com...
- Page 3 ENGLISH FEATURES: (SM12001, SM12002, SM12003, SM12004) (SM12101, SM12102, SM12103) • Bak-4 roof prisms • XD (extra low dispersion) glass • Fully multi-coated optics • Bak-4 prisms • Waterproof, fogproof, and dustproof • Phase corrected, fully broad band multi- • Rubber armor coated optics •...
- Page 4 SM12001 SM12002 SM12003 SM12004 SM12101 SM12102 SM12103 Power Objective lens 32mm 42mm 42mm 50mm 36mm 42mm 42mm dia. Lens coating FBMC FBMC FBMC Focusing lens internal internal internal internal internal internal internal Exit pupil dia. 4.1mm 5.25mm 4.2mm 5.1mm 2.5mm 4.27mm Exit Pupil distance 14.7mm 19.7mm 18.4mm 19.5mm 16.8mm 16.6mm...
- Page 5 Solitude 8x32, 8x42, 10x42, 12x50 DIAGRAM: 1) Eyepieces 2) Neckstrap eyelets 3) Focus ring 4) Diopter adjustment 5) Objective lens 6) Central hinge 7) Tripod socket 8) Neckstrap 9) Eyepiece cover 10) Objective lens covers 11) Shoulder harness 12) Carrying case...
- Page 6 Solitude XD 7x36, 8x42, 10x42 DIAGRAM: 1) Eyepieces 2) Neckstrap eyelets 3) Focus ring 4) Diopter adjustment 5) Objective lens 6) Magnesium bridge 7) Tripod socket 8) Neckstrap 9) Eyepiece cover 10) Objective lens covers 11) Shoulder harness 12) Carrying case...
-
Page 7: Warnings And Precautions
OVERVIEW: The Sightmark Solitude Binocular features fully multi-coated lenses, which provides maximum light transmission and optimal brightness, so any outdoorsman or sports aficionado can explore and enjoy his or her surroundings to the fullest. Featuring Bak-4 roof prisms, the Solitude Binoculars are equipped with superior glass for a clearer and better quality image. -
Page 8: Focusing Adjustment
ADJUSTING THE INTERPUPILLARY DISTANCE Interpupillary distance is the distance between your eye’s pupils. In order to obtain a single image, the center of the binocular’s eyepieces (1) must be set the same distance apart as your eye’s pupils. To set the interpupillary distance: 1) Look through the binoculars with both eyes. -
Page 9: Tripod Mounting
ADJUSTING THE TWIST-UP EYECUPS The adjustable twist-up eyecups provide a custom fit for proper eye relief and fit for eyeglass wearers and non-eyeglass wearers. To adjust the twist up eyecups: 1) Rotate the eyecup of the eyepiece (1) counterclockwise to extend the eyecup. - Page 10 SIGHTMARK WARRANTY Please visit www.sightmark.com for warranty deatails and information. www.sightmark.com Copyright © 2012 Sellmark...
